Auxiliary Climate Control

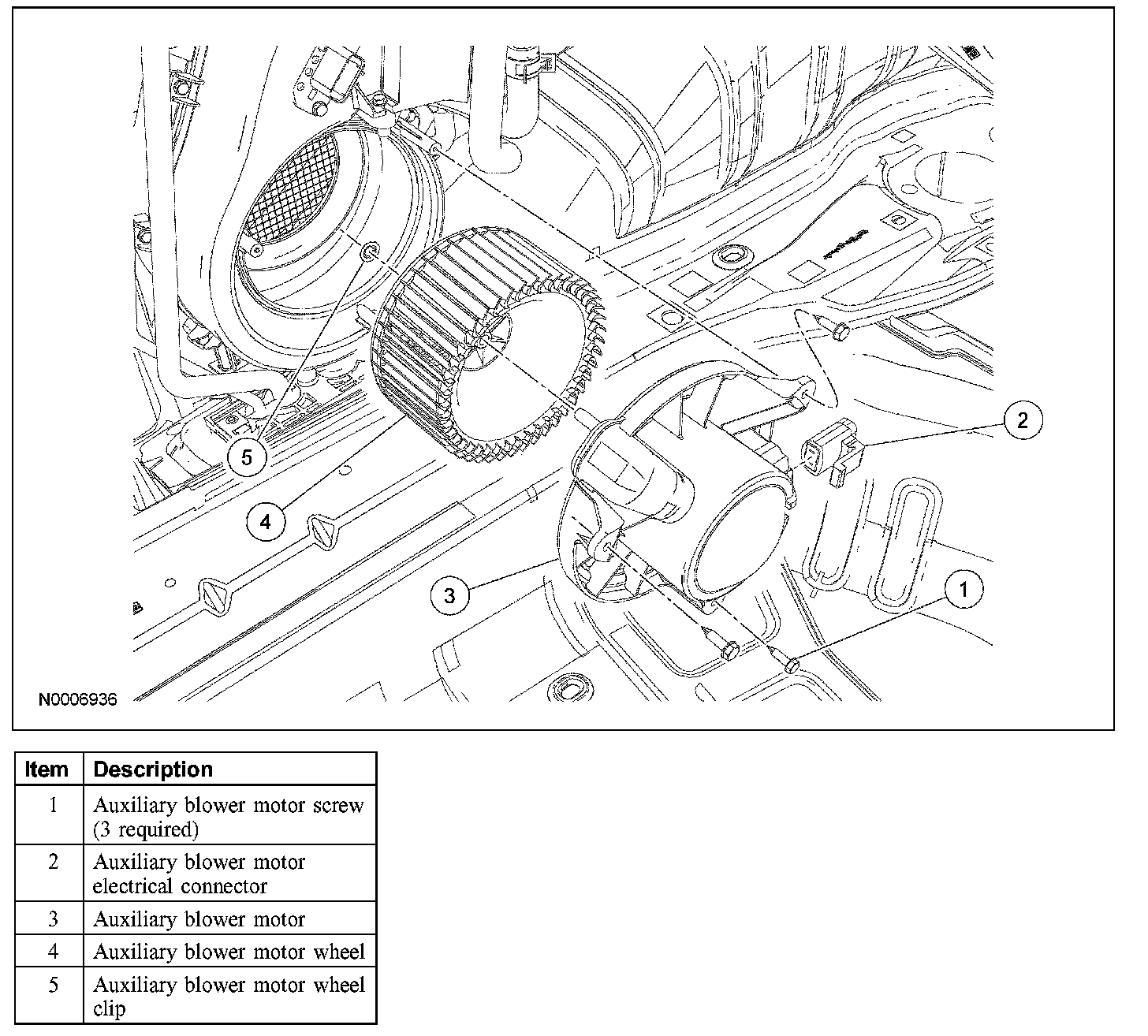

BLOWER MOTOR







Removal and Installation
1. Remove the LH quarter trim panel. Refer to: Body and Frame, Interior Moulding/Trim, Trim Panel, Service and Repair, Service and Repair

2. Disconnect the auxiliary blower motor electrical connector.
3. Remove the 3 auxiliary blower motor screws.
4. Remove the auxiliary blower motor.
5. Remove the auxiliary blower motor wheel clip.
6. Remove the auxiliary blower motor wheel.
7. To install, reverse the removal procedure.
