I: Spongy Brake Pedal With No Warning Indicator

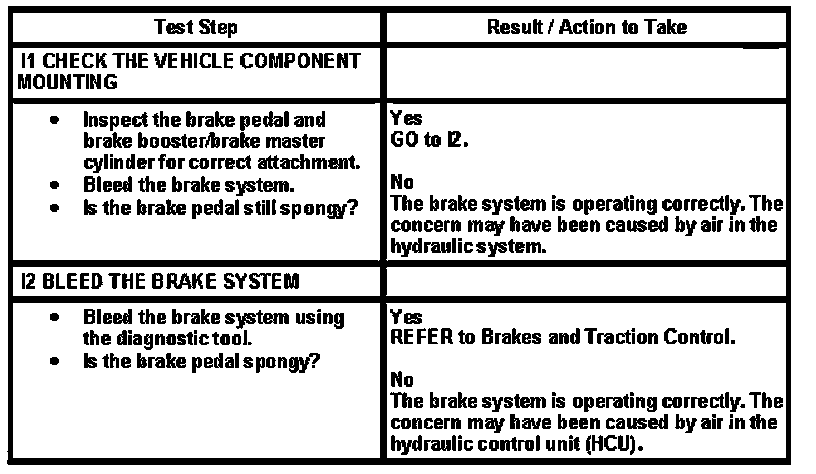

Pinpoint Test I: Spongy Brake Pedal With No Warning Indicator

Normal Operation

The brake pedal should be firm when applied.

Possible Causes

- base brake system
- hydraulic control unit (HCU)
