Driver Seat Module (DSM) C341b

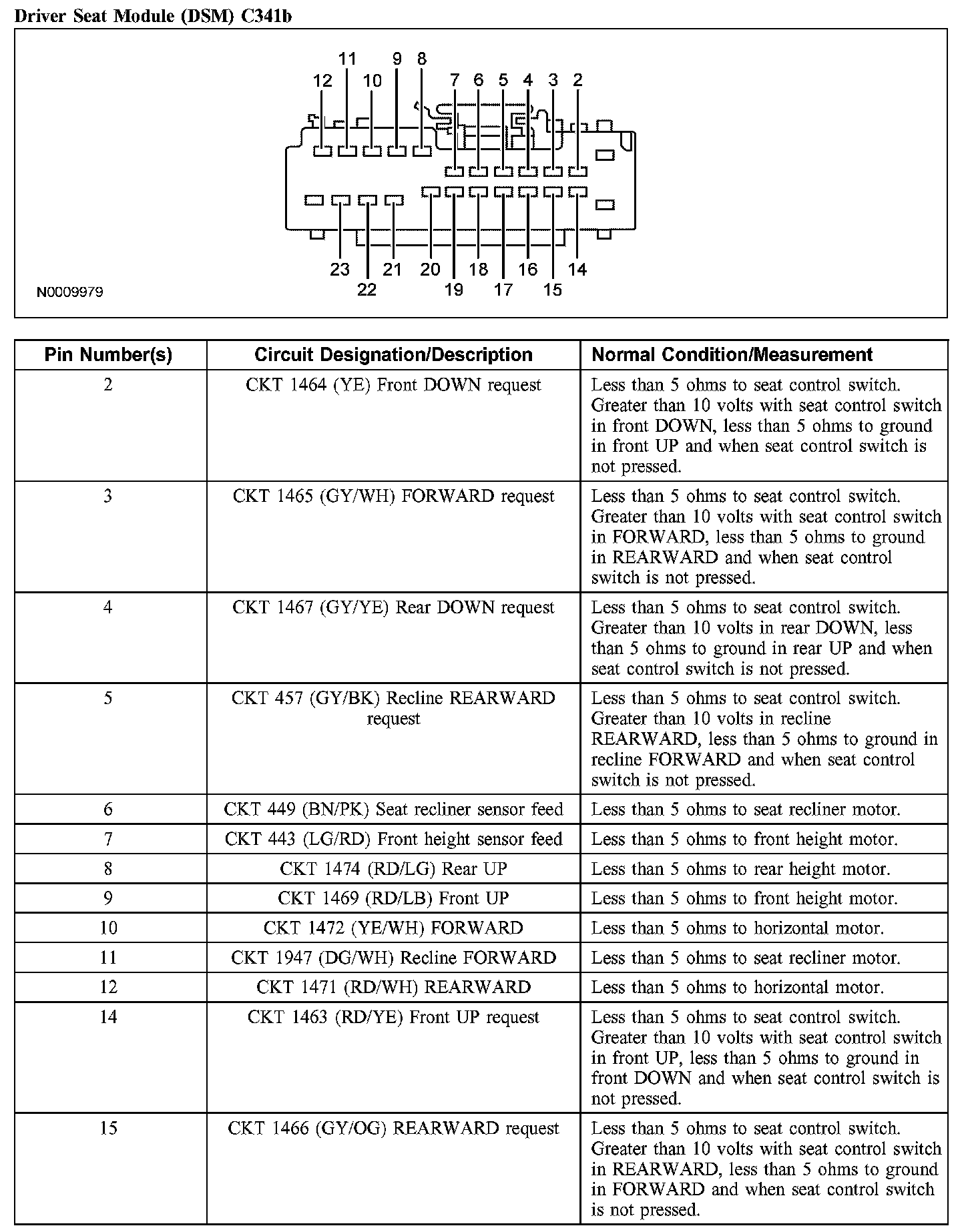

Driver Seat Module (DSM) C341b (Part 1):

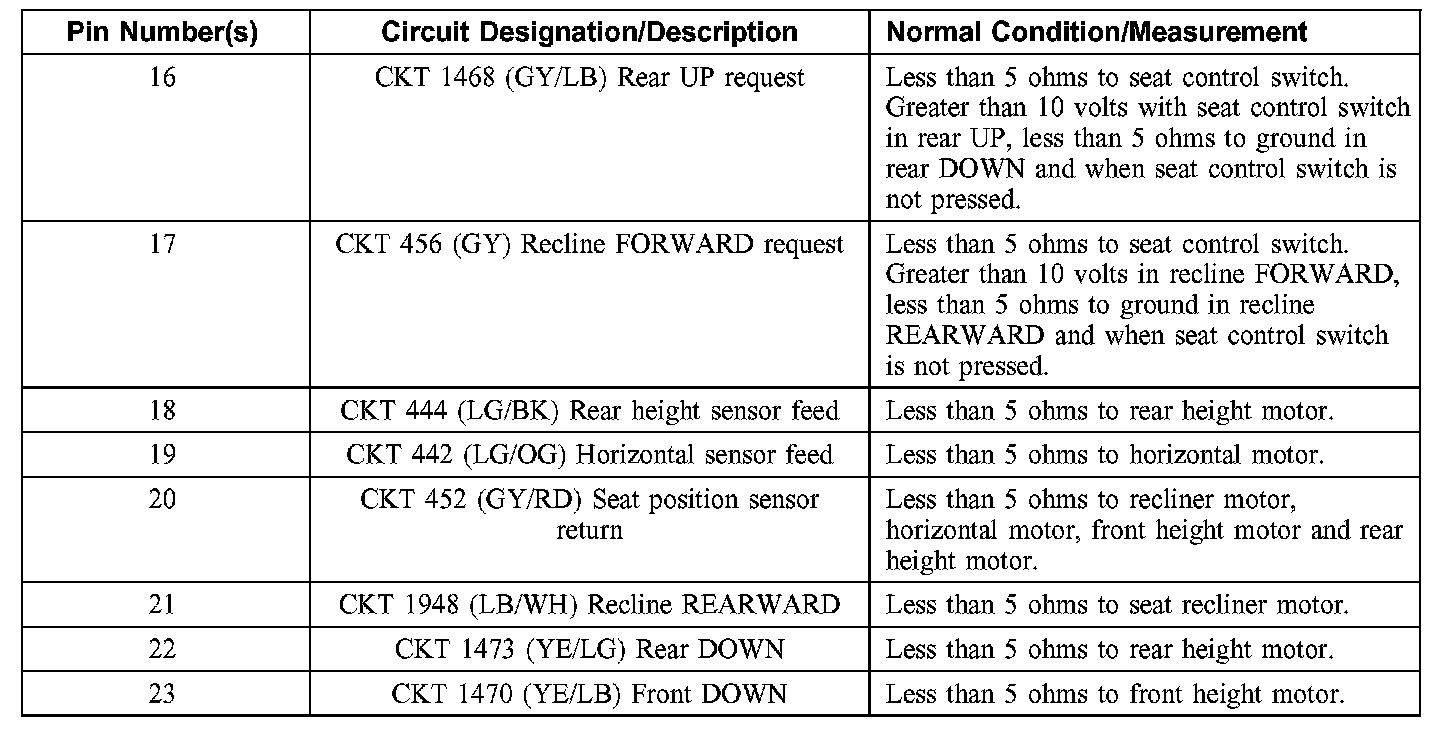

Driver Seat Module (DSM) C341b (Part 2):
