Montego 2WD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit References
>>

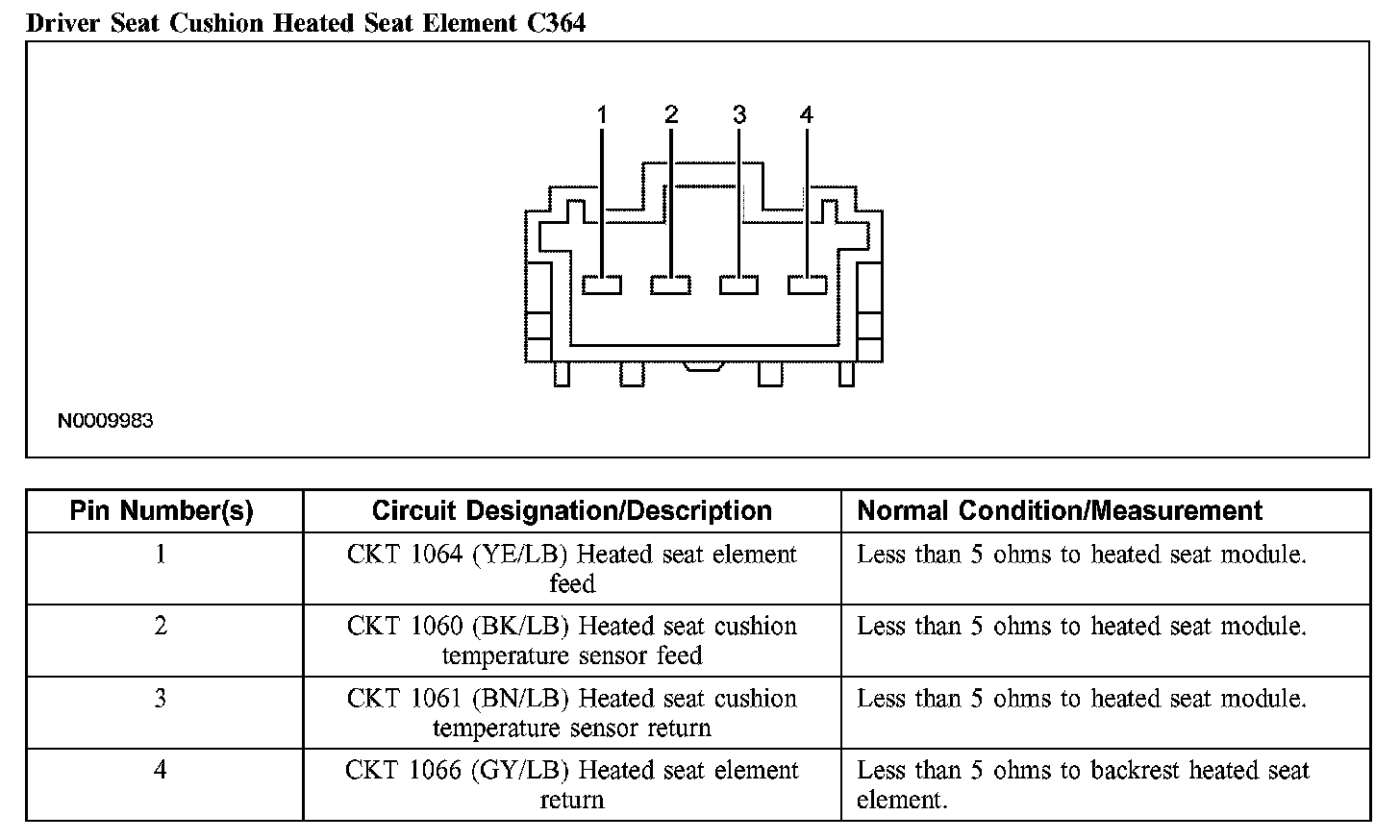

Driver Seat Cushion Heated Seat Element C364
Driver Seat Cushion Heated Seat Element C364
Driver Seat Cushion Heated Seat Element C364:
