Roof Opening Panel Glass

ROOF OPENING PANEL GLASS

Removal and Installation

NOTE: The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed, or a new roof opening panel assembly has been installed. Refer to Roof Opening Panel Motor Initialization. Roof Opening Panel Motor Initialization







1. Open the roof opening panel to the VENT position.

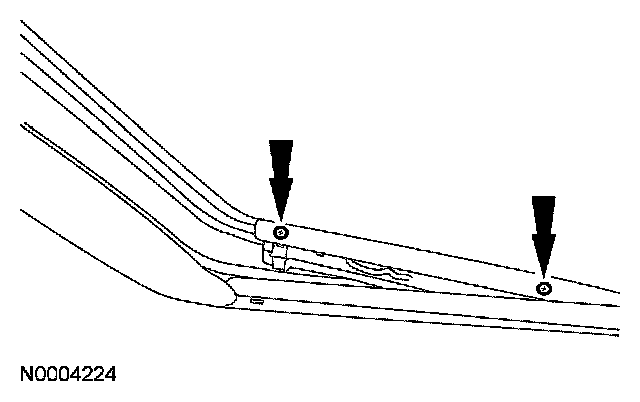

2. Remove the 4 roof opening panel glass screws.
- To install, tighten to 4 Nm (35 lb-in).

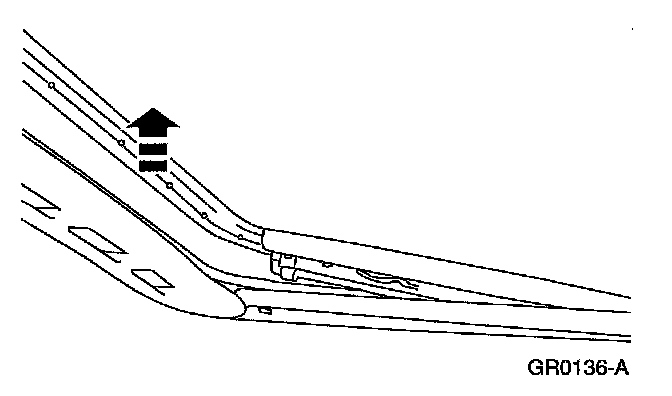

3. From the outside of the vehicle, remove the roof opening panel glass assembly.
4. To install, reverse the removal procedure.
- Check for correct alignment of the roof opening panel.

5. Initialize the roof opening panel motor.
