Test C: All Door Locks Are Inoperative

PINPOINT TEST C: ALL DOOR LOCKS ARE INOPERATIVE

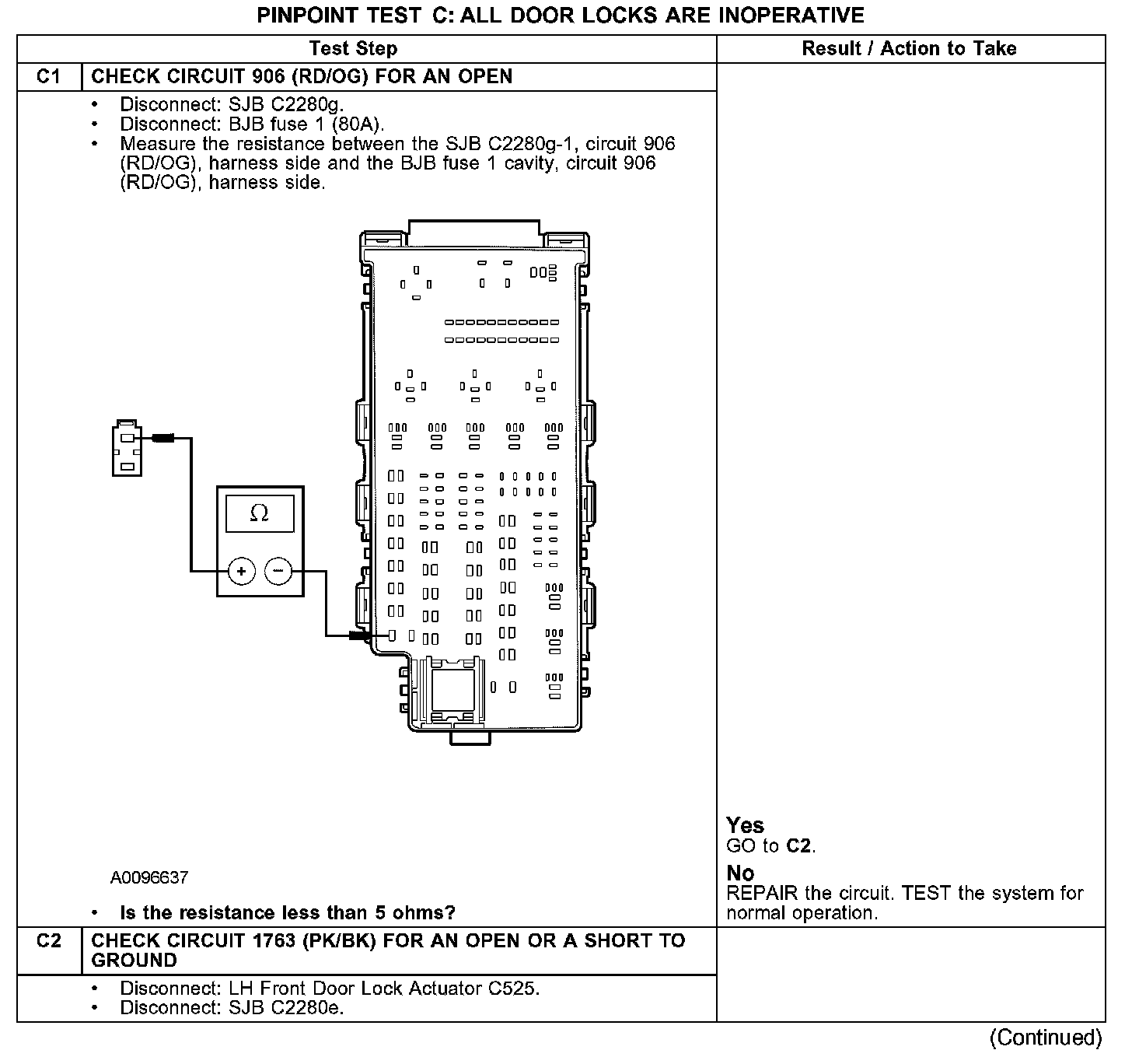

C1-C2:

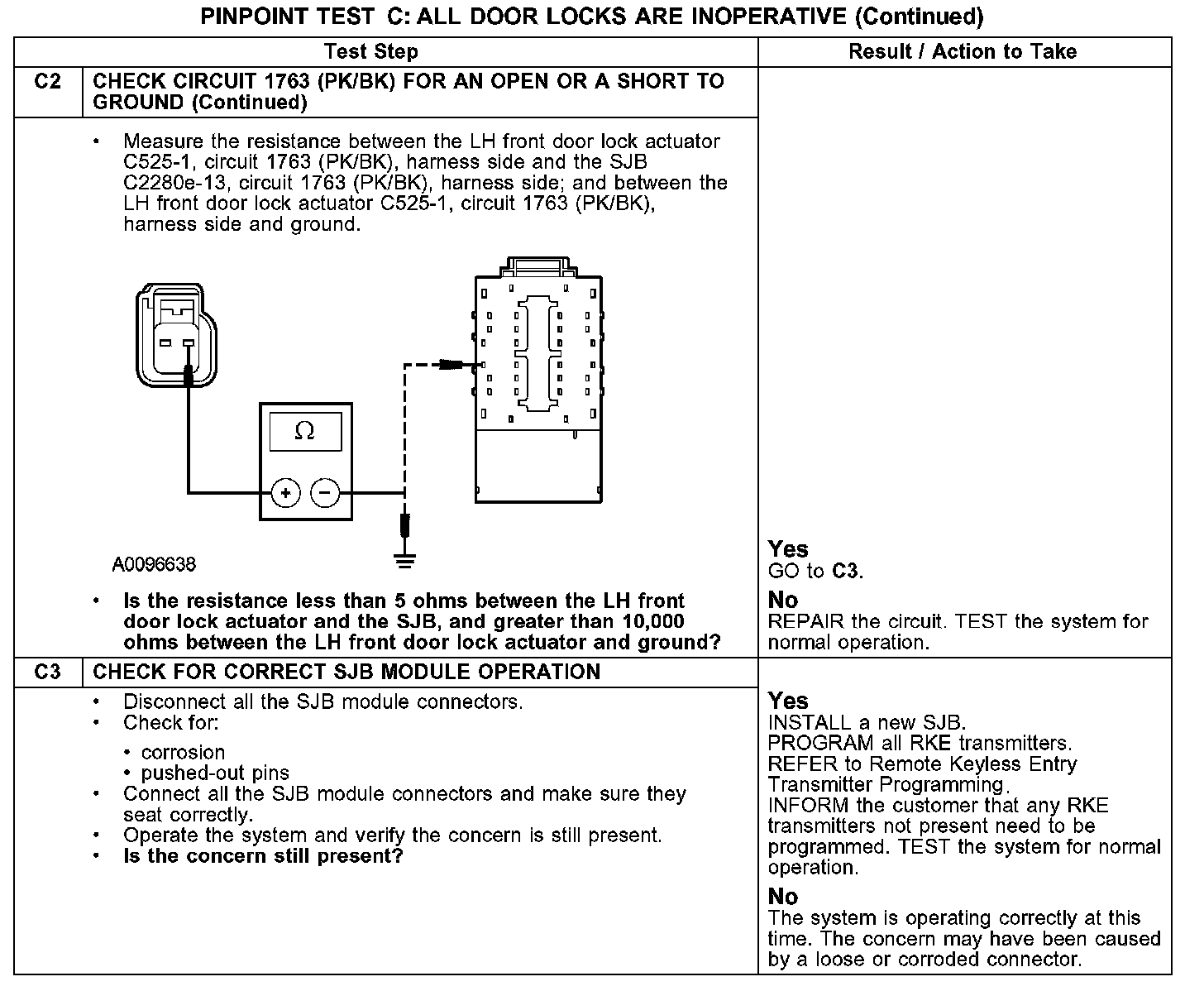

C2-C3:

Normal Operation
The smart junction box (SJB) receives voltage for the power locks on circuit 906 (RD/OG). The door lock actuators are powered through the SJB by fuse 3 (25A). The SJB energizes the lock or unlock relays based upon input from the door lock switches, the remote keyless entry (RKE) transmitter, or the RKE keypad. If the SJB energizes circuit 1088 (PK/WH) the door lock actuators unlock the doors and the liftgate (wagon). If the SJB energizes circuit 1763 (PK/BK) the door lock actuators lock the doors and the liftgate (wagon).

Possible Causes
- battery junction box (BJB) fuse 1 (80A)
- SJB fuse 3 (25A)
- circuit 906 (RD/OG) open
- circuit 1763 (PK/BK) open or short to ground
- SJB
