Home >> Mercury >> 2005 >> Montego 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Antitheft Mode Switch >> Diagrams

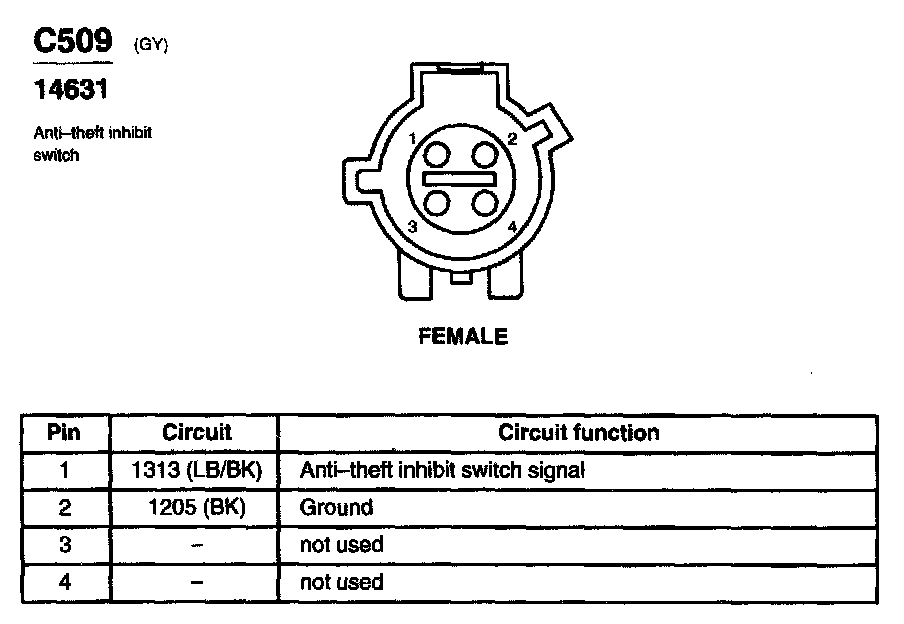

Antitheft Mode Switch: Diagrams
