Test D: The Intermittent Wiper Speed Does Not Operate Correctly (High/Low Speeds OK)
Test D: The Intermittent Wiper Speed Does Not Operate Correctly (High/Low Speeds OK)
PINPOINT TEST D: THE INTERMITTENT WIPER SPEED DOES NOT OPERATE CORRECTLY (HIGH/LOW SPEEDS OK)

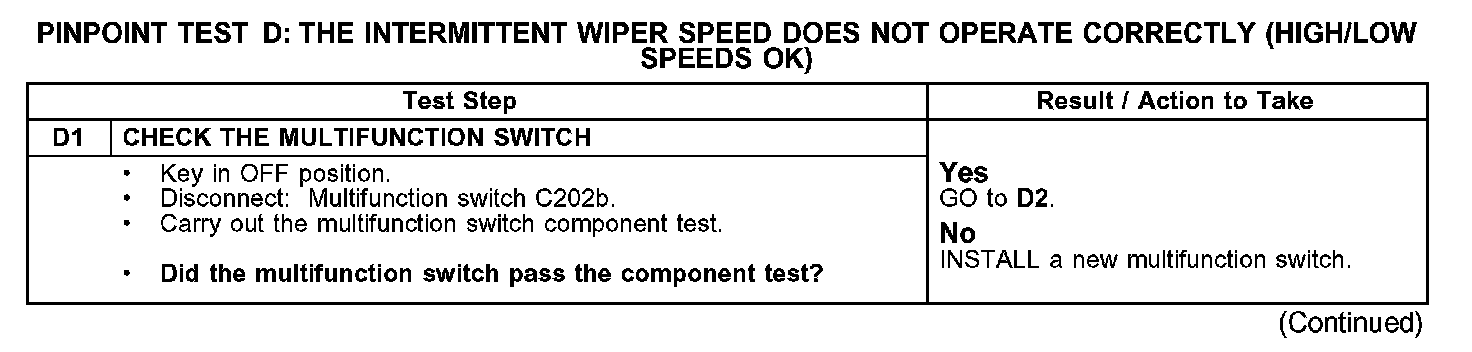

D1:

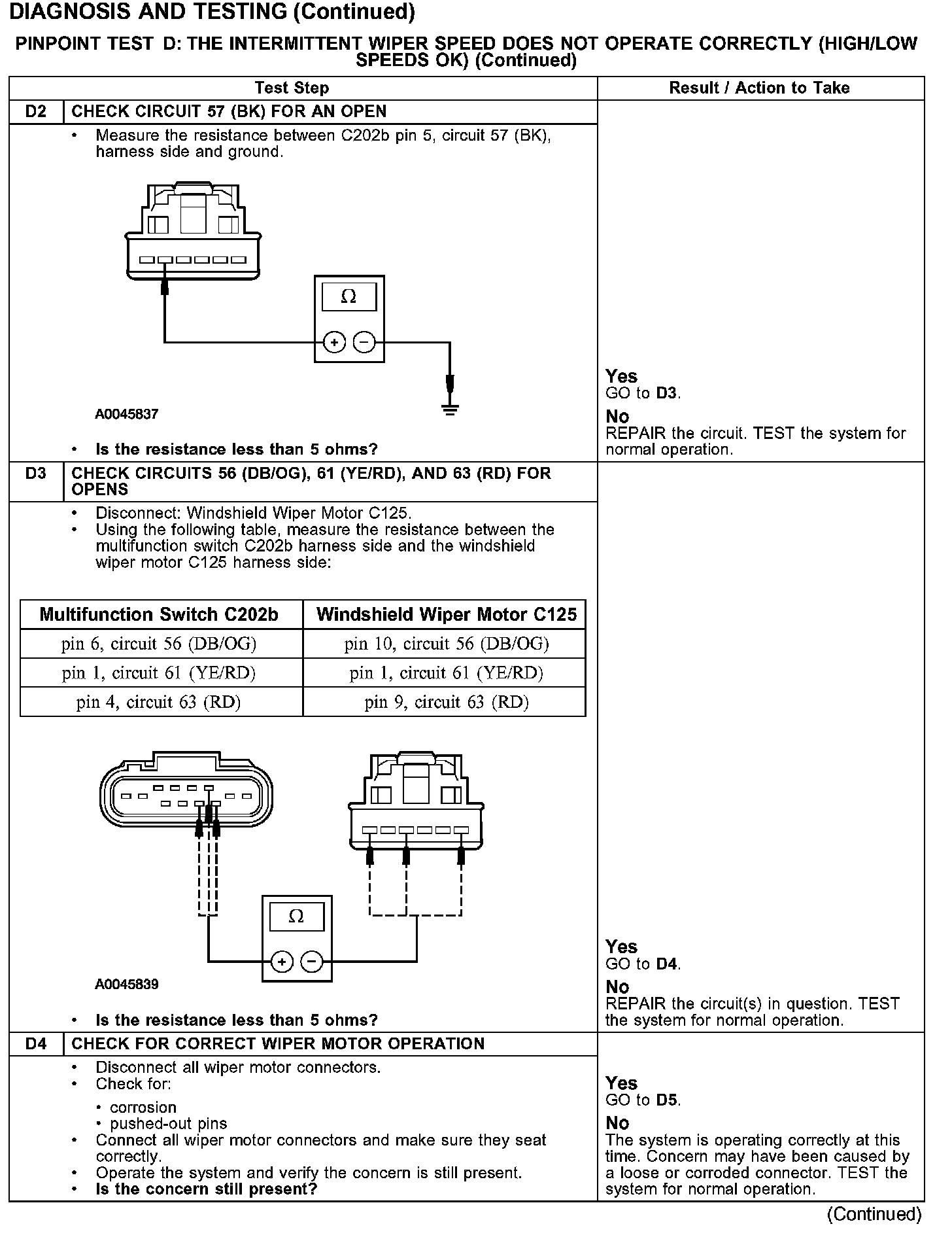

D2-D4:

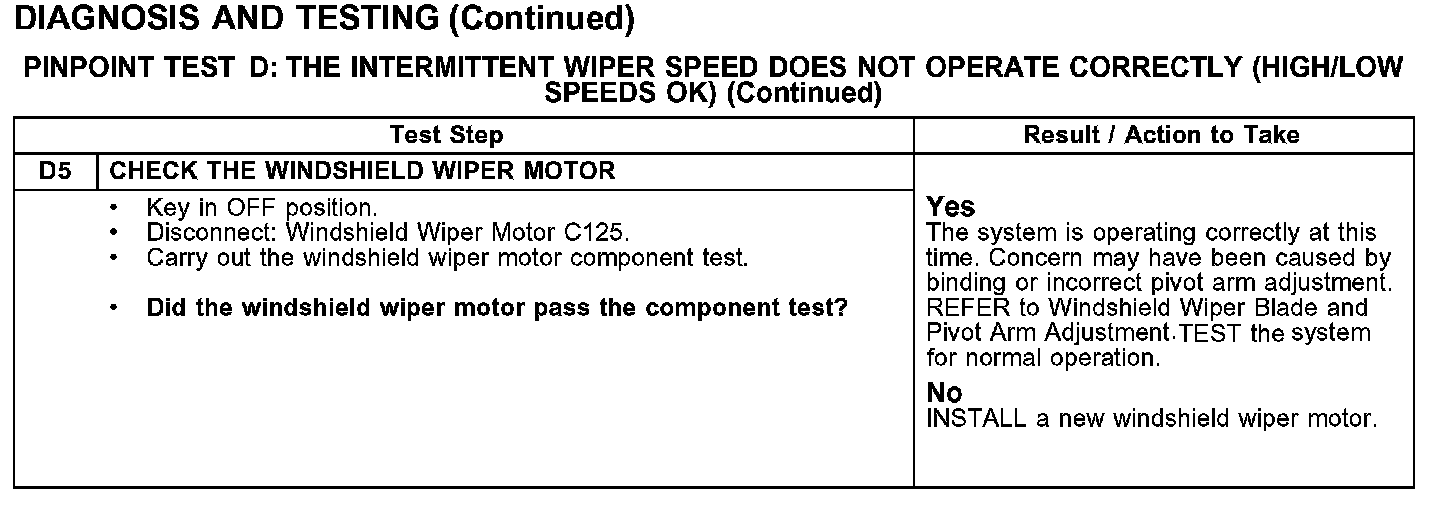

D5:
