Test C: The High/Low Wiper Speeds Do Not Operate Correctly (Intermittent Wiper Mode OK)
Test C: The High/Low Wiper Speeds Do Not Operate Correctly (Intermittent Wiper Mode OK)
PINPOINT TEST C: THE HIGH/LOW WIPER SPEEDS DO NOT OPERATE CORRECTLY (INTERMITTENT WIPER MODE OK)

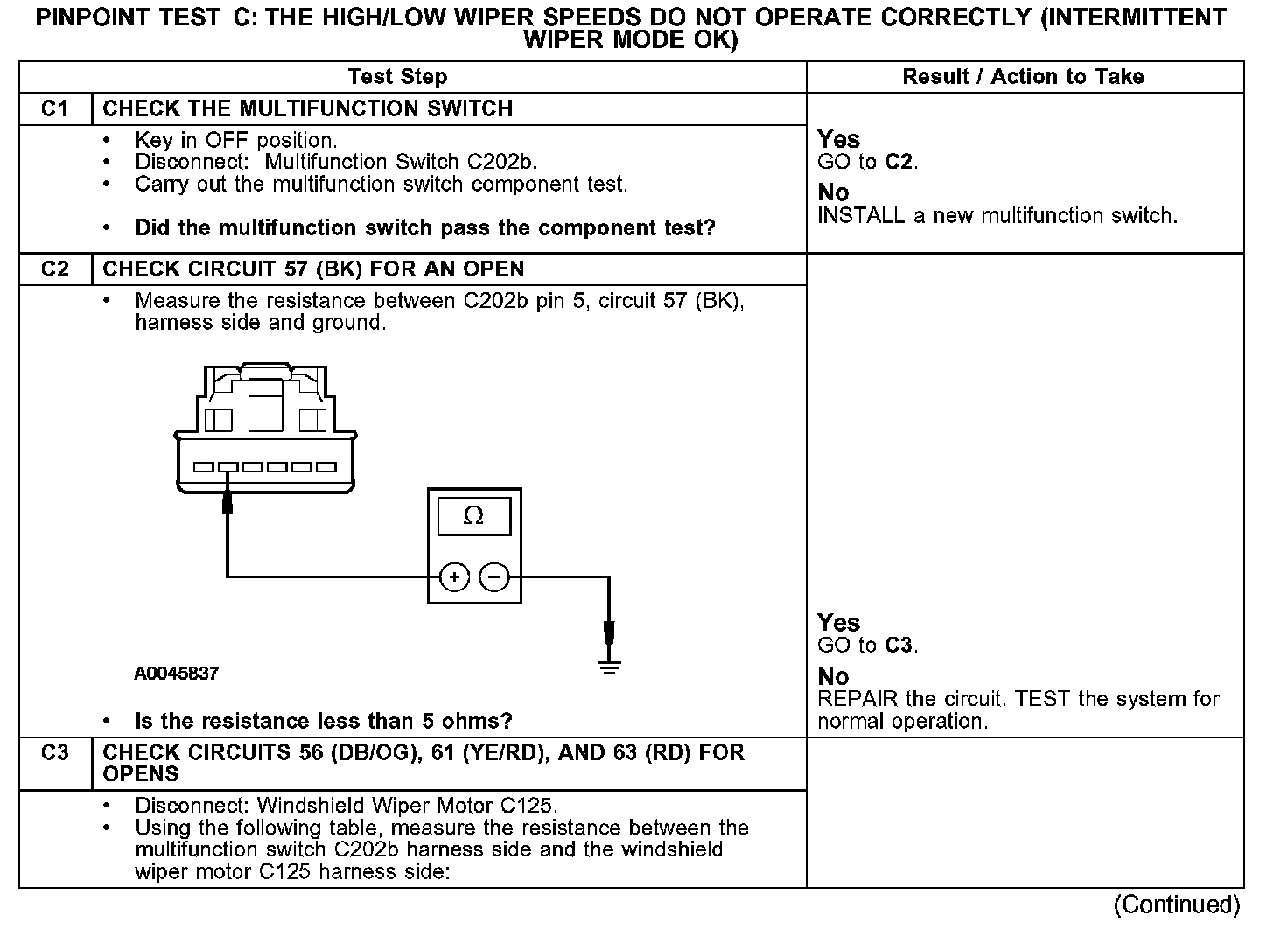

C1-C3:

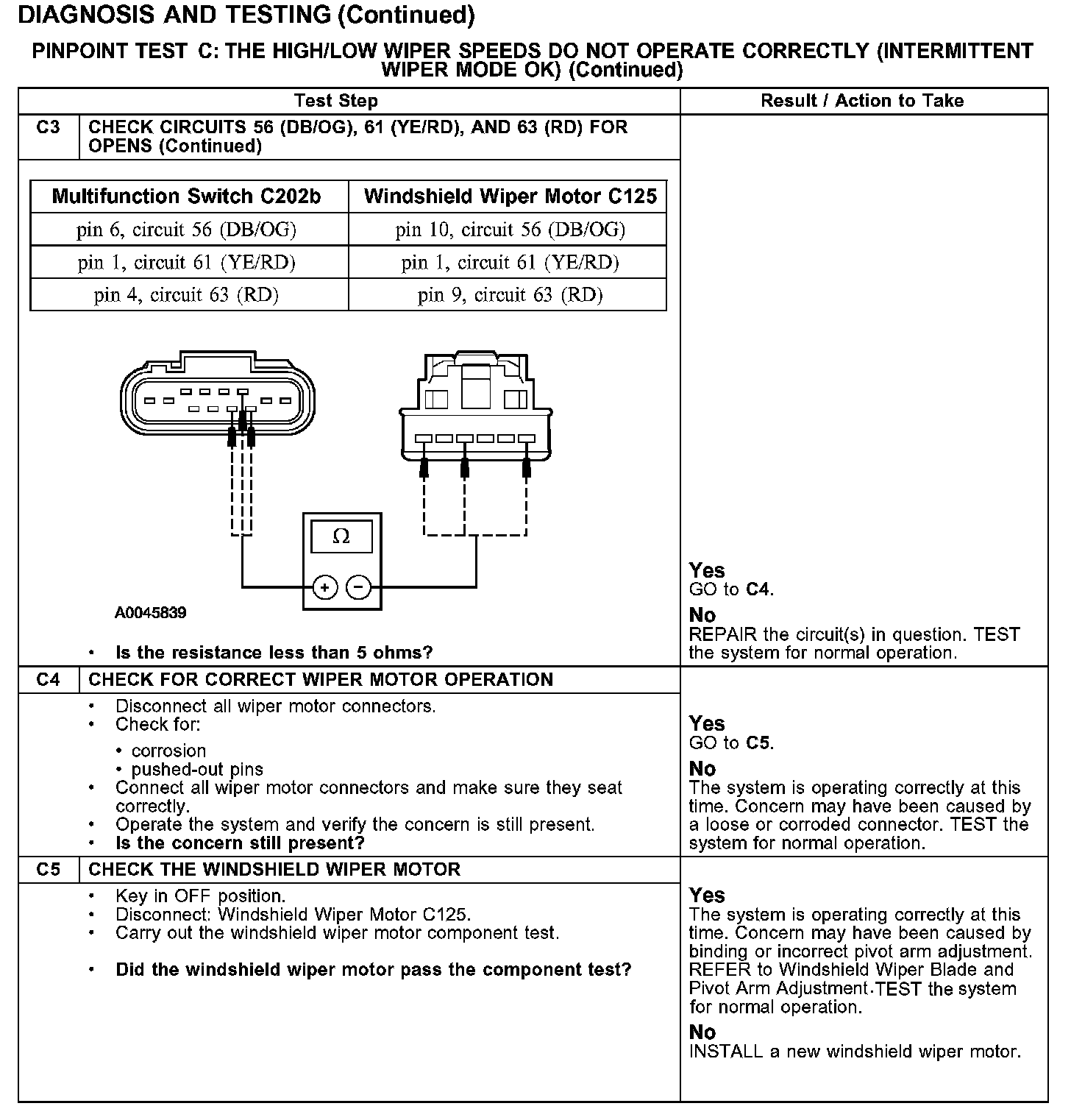

C3-C5:
