Test D: A Single Power Window Is Inoperative - Passenger Rear
Test D: A Single Power Window Is Inoperative - Passenger Rear
PINPOINT TEST D: A SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER REAR
D1-D4:

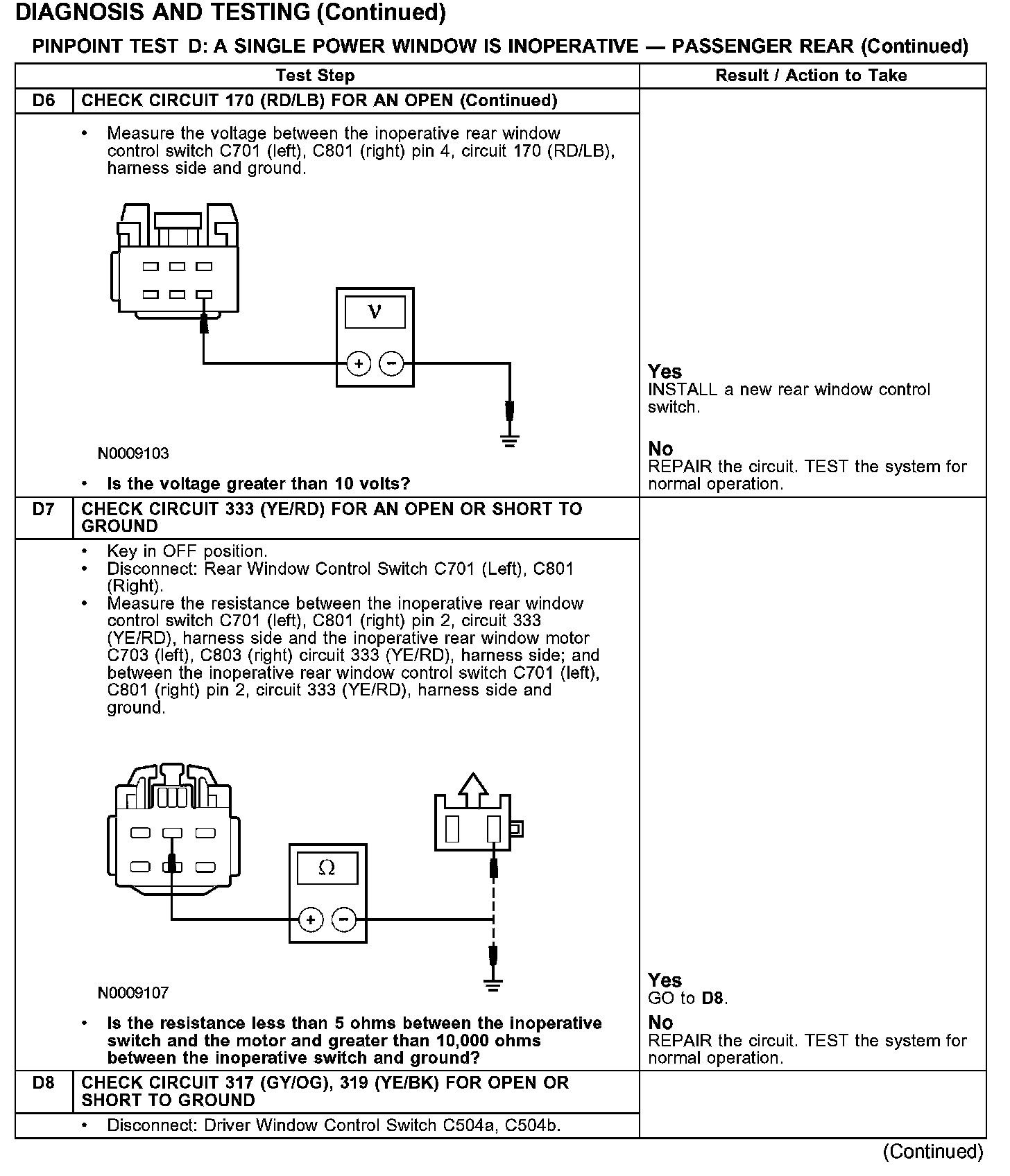

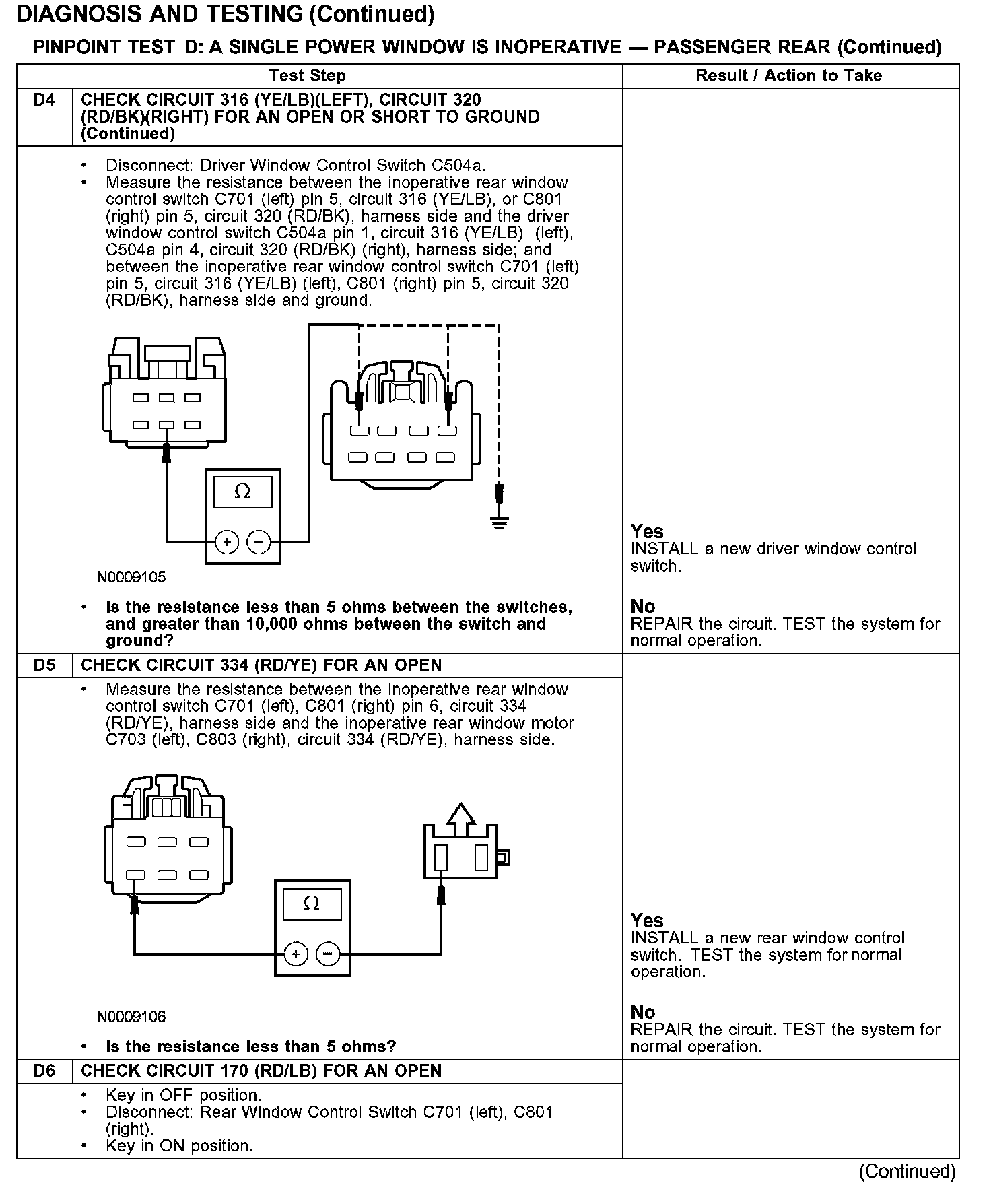

D4-D6:
D6-D8:

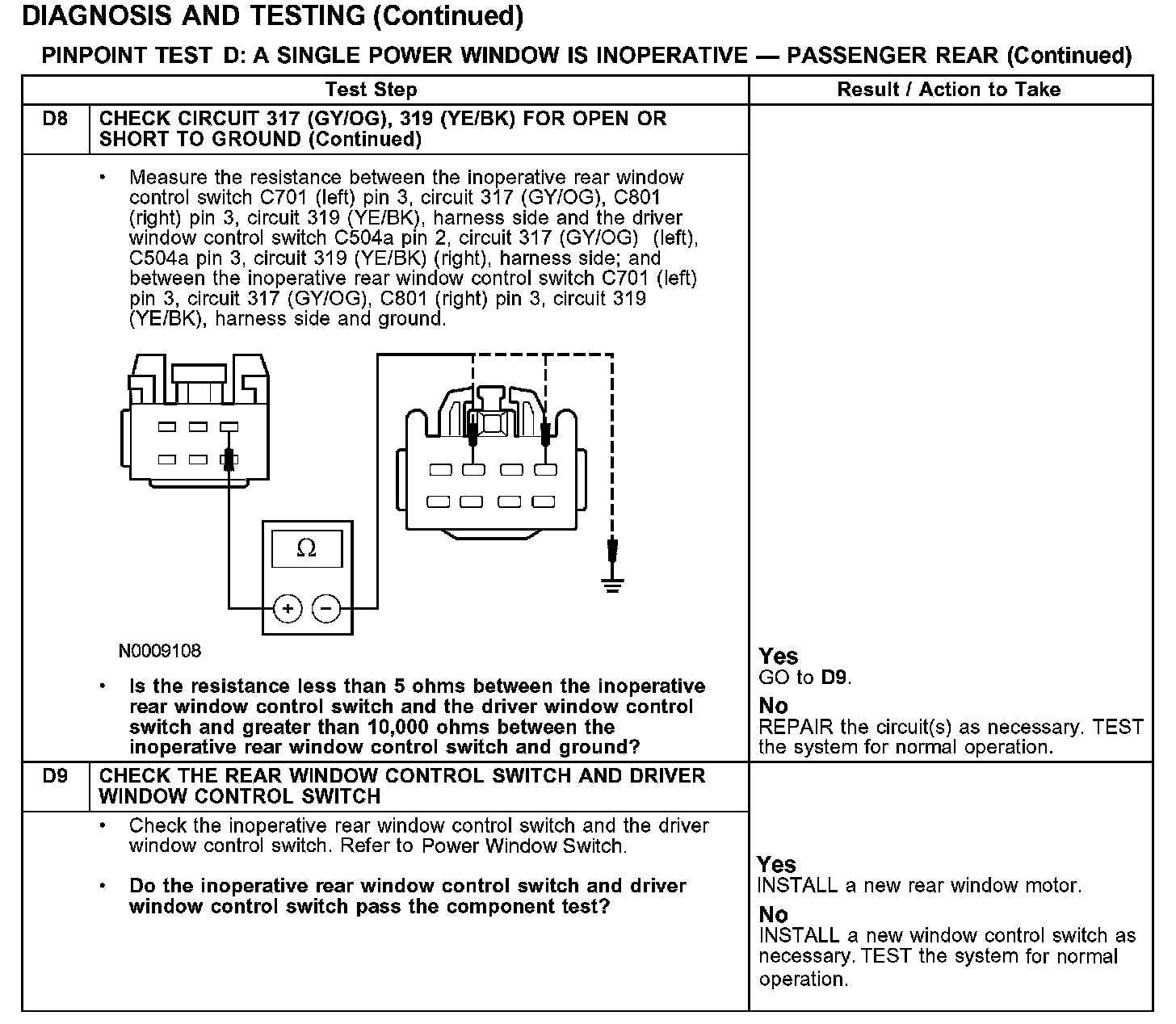

D8-D9:
