Test C: A Single Power Window Is Inoperative - Passenger Front
Test C: A Single Power Window Is Inoperative - Passenger Front
PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER FRONT

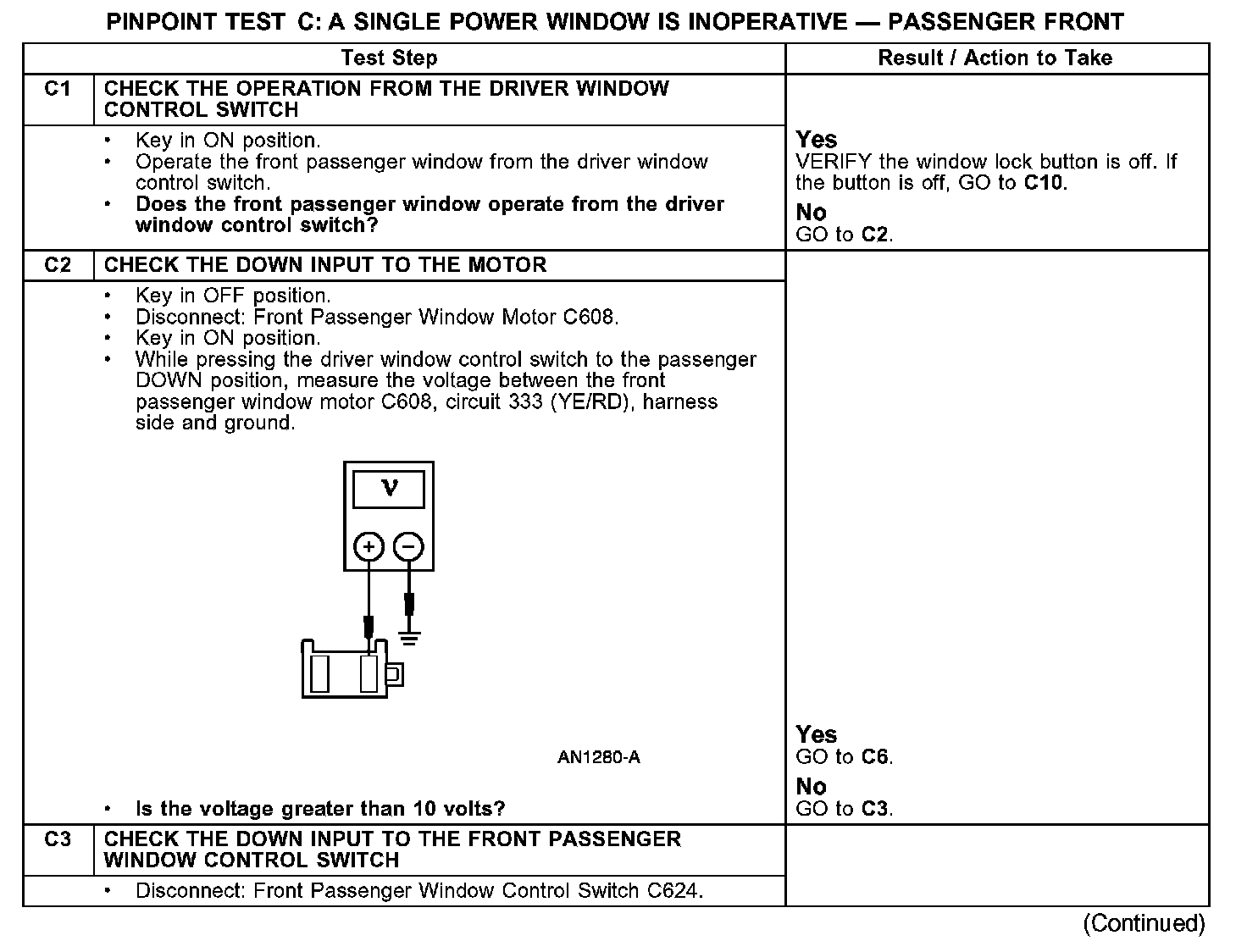

C1-C3:

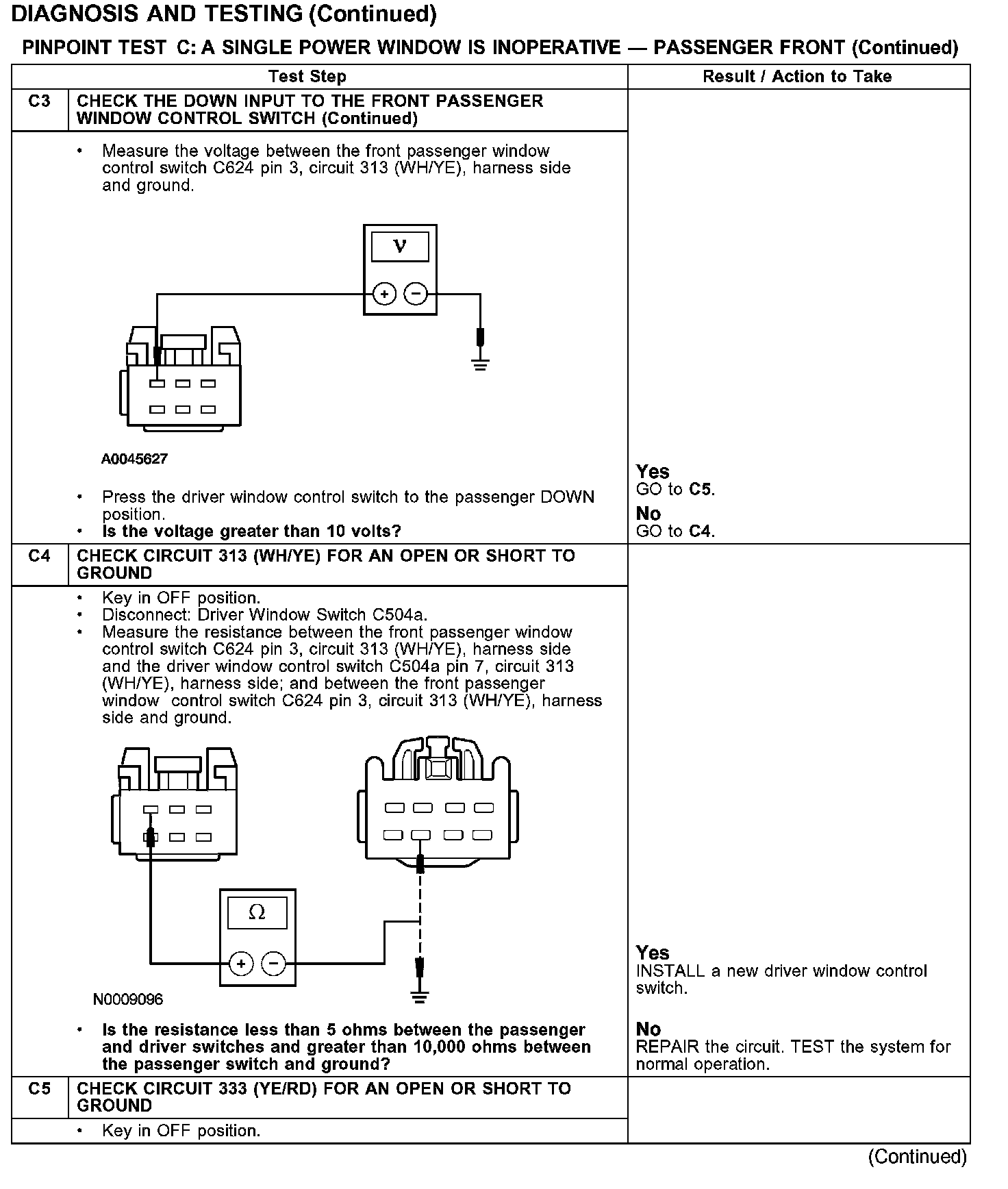

C3-C5:

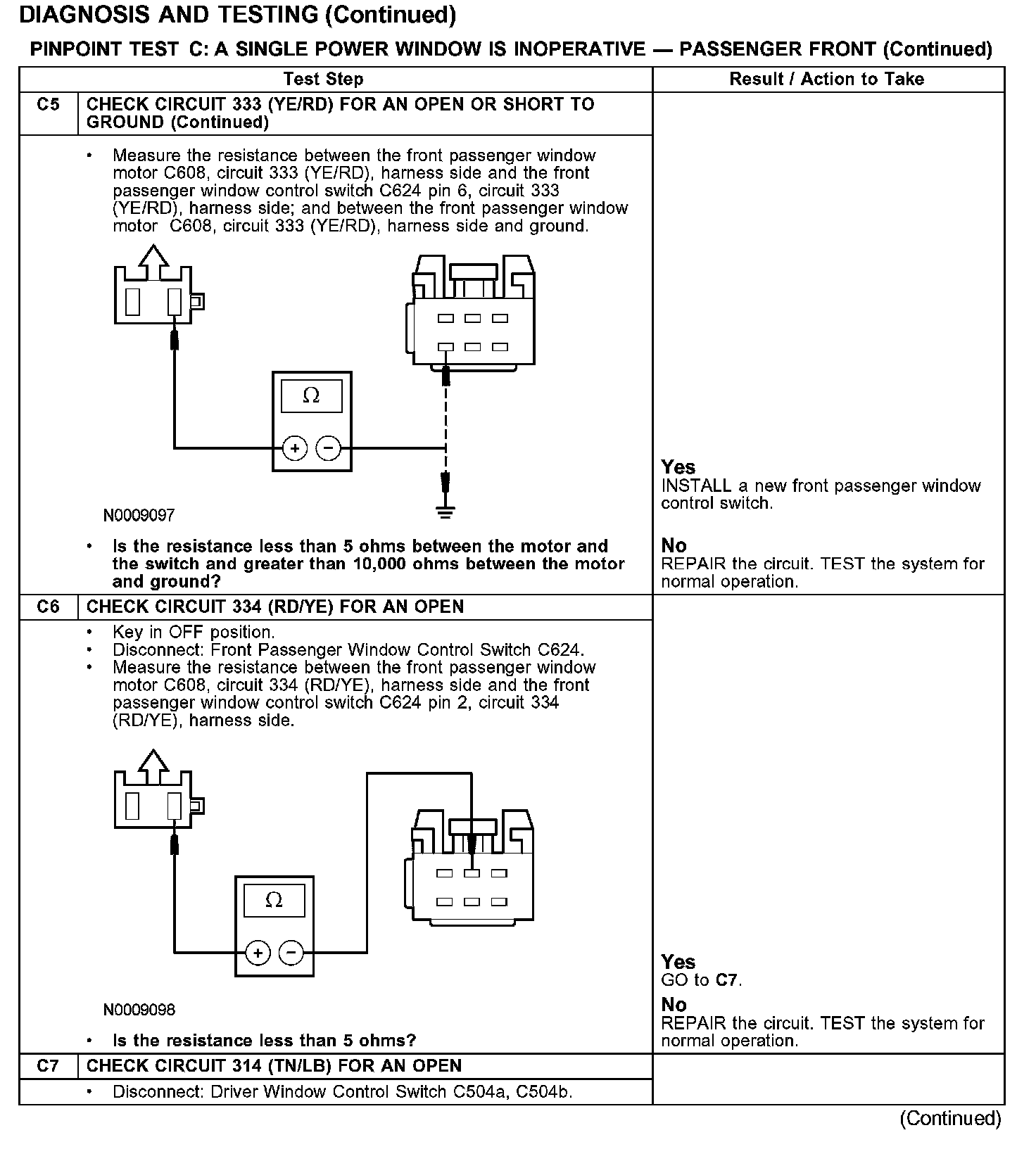

C5-C7:

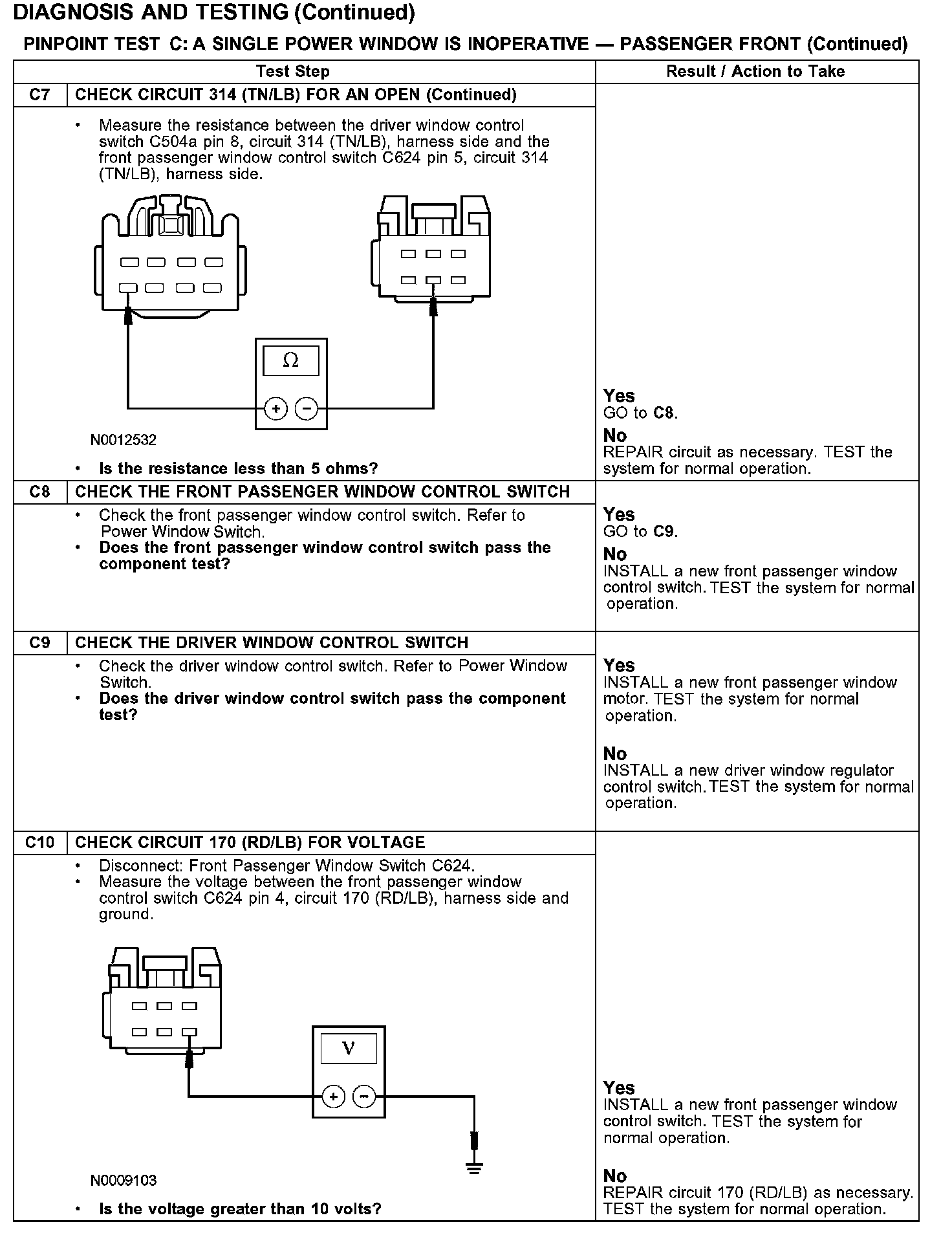

C7-C10:
