INSPECTION AND VERIFICATION

1. Verify the customer concern.

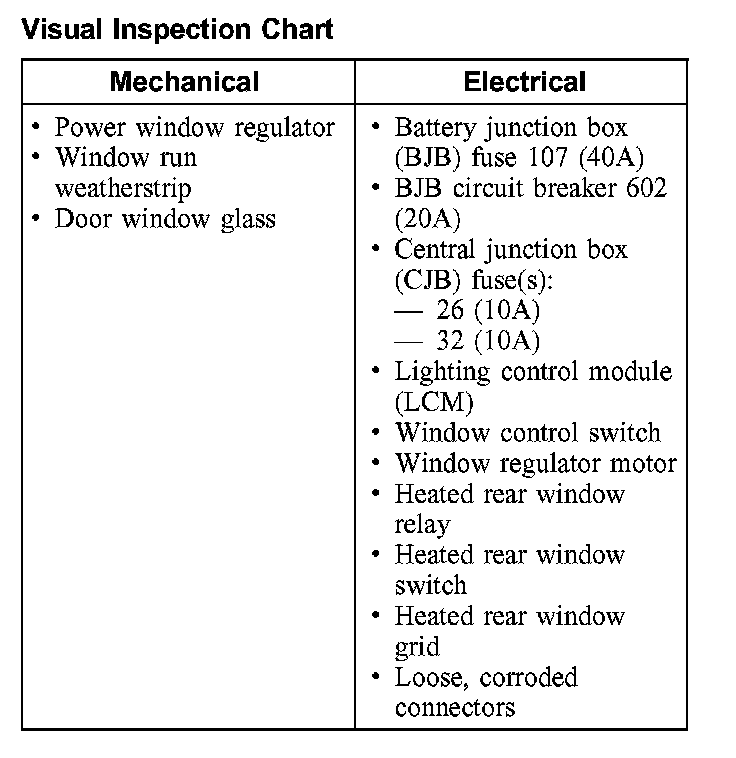

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- Check for the diagnostic card being correctly installed.
- Check the connections to the vehicle.
- Check the ignition switch position.

5. If the diagnostic tool does not power up, refer to the diagnostic tool operating manual.
6. Carry out the diagnostic tool data link test. If the diagnostic tool responds with:
- CAN, SCP, or ISO circuit fault; all electronic control units, no response/not equipped, refer to Information Bus (Module Communications Network).
- No response/not equipped for the lighting control module (LCM), refer to Body Control Systems (Multifunction Electronic Control Module).
- System passed, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs, and carry out self-test diagnostics for the LCM.

7. If the LCM DTCs retrieved are related to the concern, go to the Lighting Control Module (LCM) Diagnostic Trouble Code (DTC) Index. Diagnostic Trouble Code Tests and Associated Procedures
8. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Symptom Related Diagnostic Procedures
