Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH

Removal and Installation

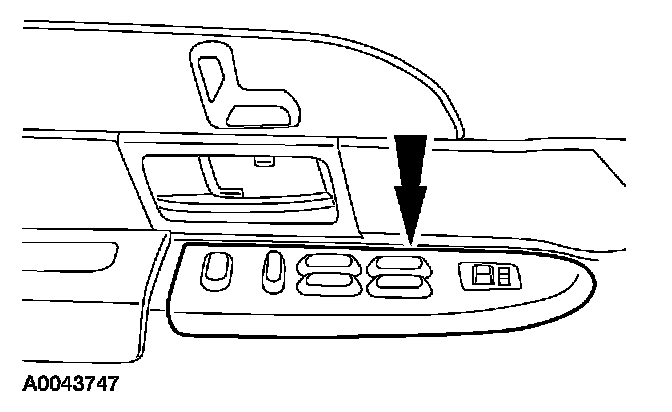

1. NOTE: The left front door is shown, all others are similar.

Lift the front of the switch plate from the front door trim panel and position it aside.

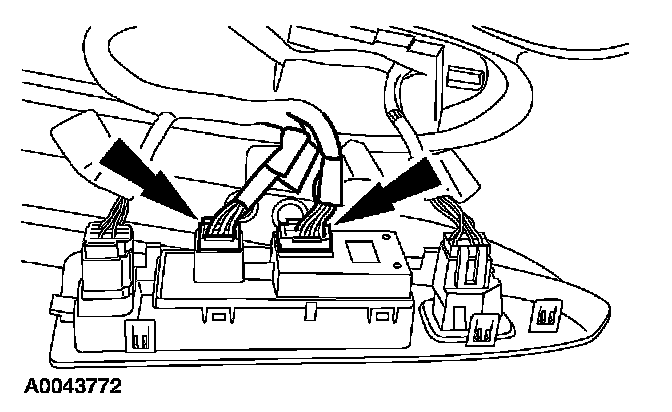

2. Disconnect the electrical connectors.

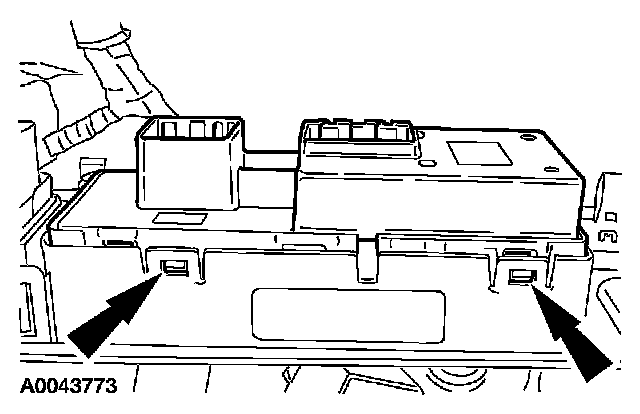

3. Remove the window control switch.
- Release the 4 locking tabs.

4. To install, reverse the removal procedure.
