Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Testing and Inspection >> Symptom Chart

Symptom Chart

Symptom Chart-Driveline System

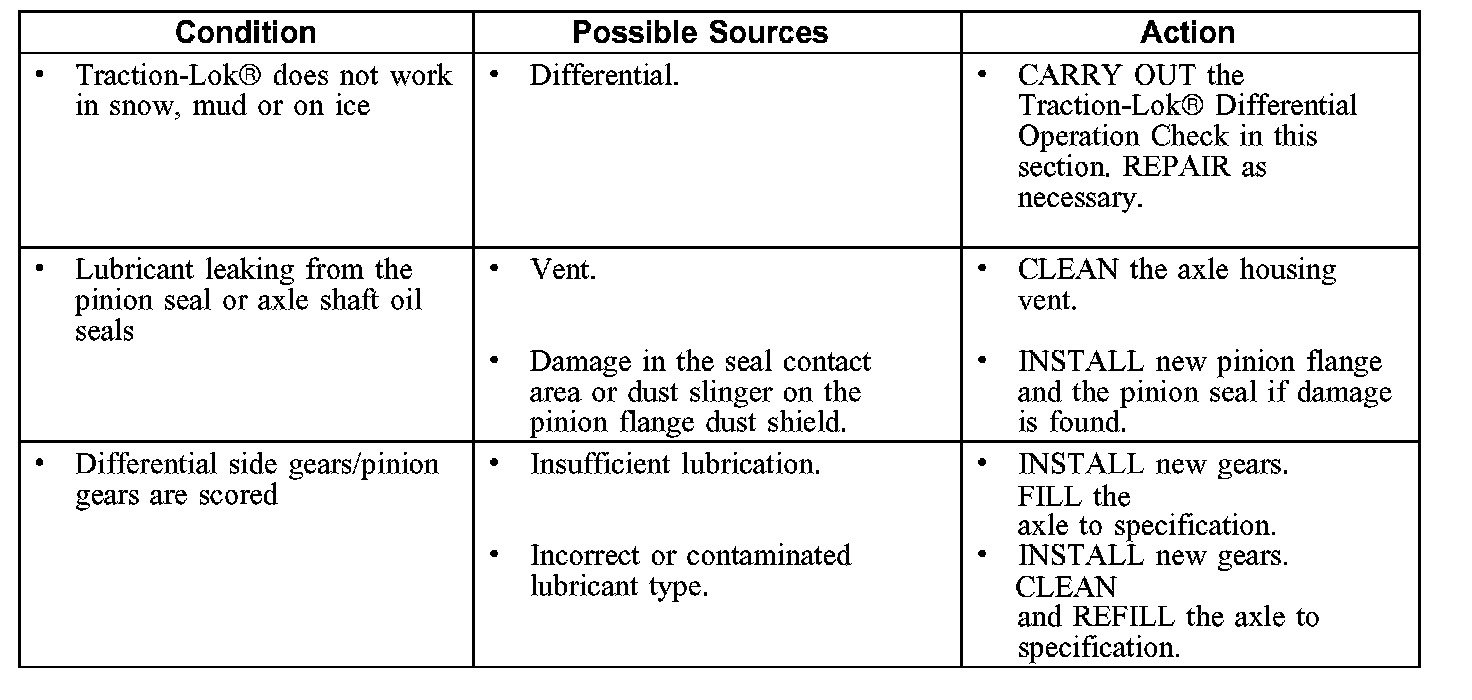

Part 1 Of 2:

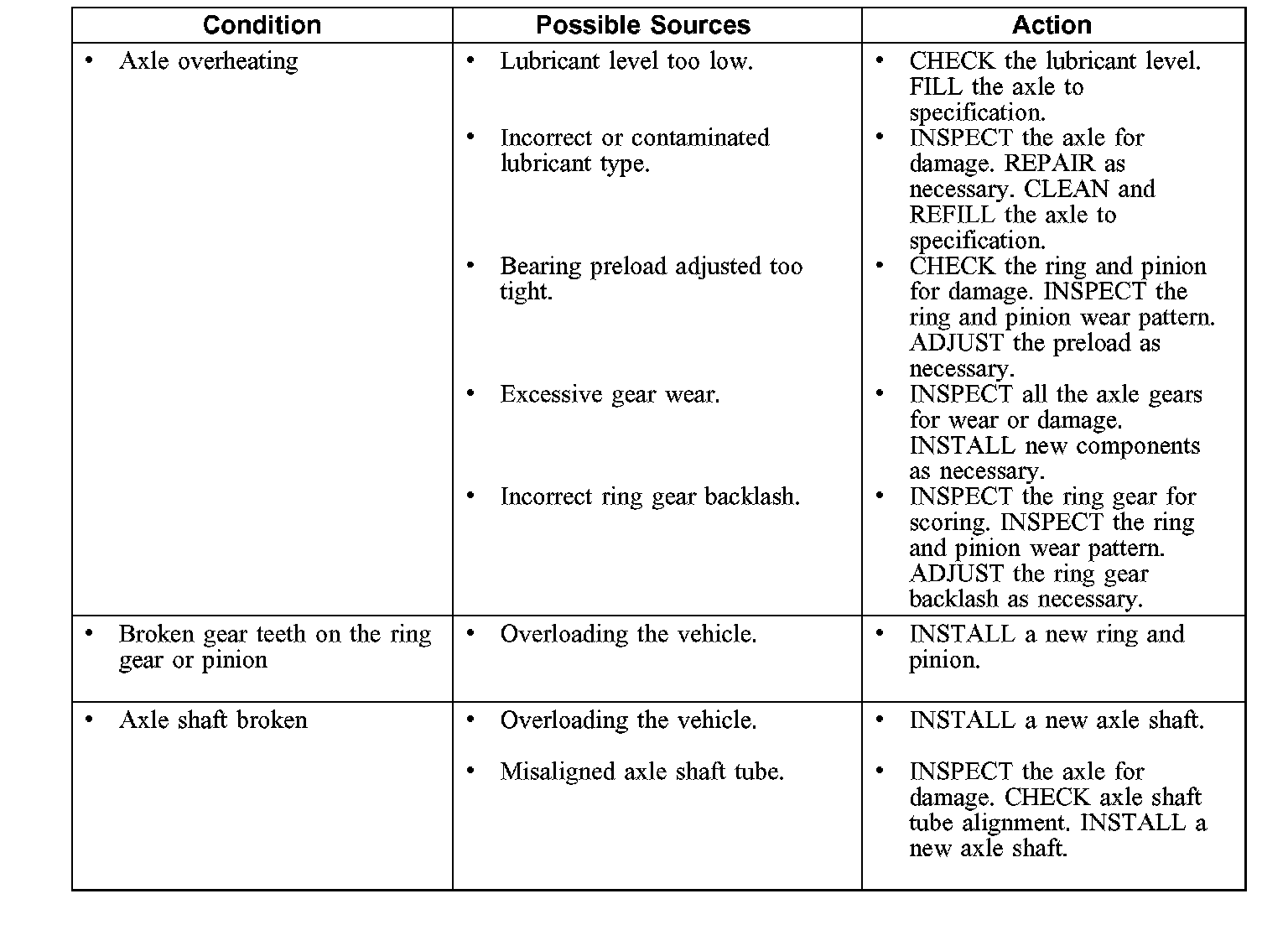

Part 2 Of 2:
