Mercury
>>
2005
>>
Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - External Controls
>>
Test J: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously - Floor Shift
Test J: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously - Floor Shift

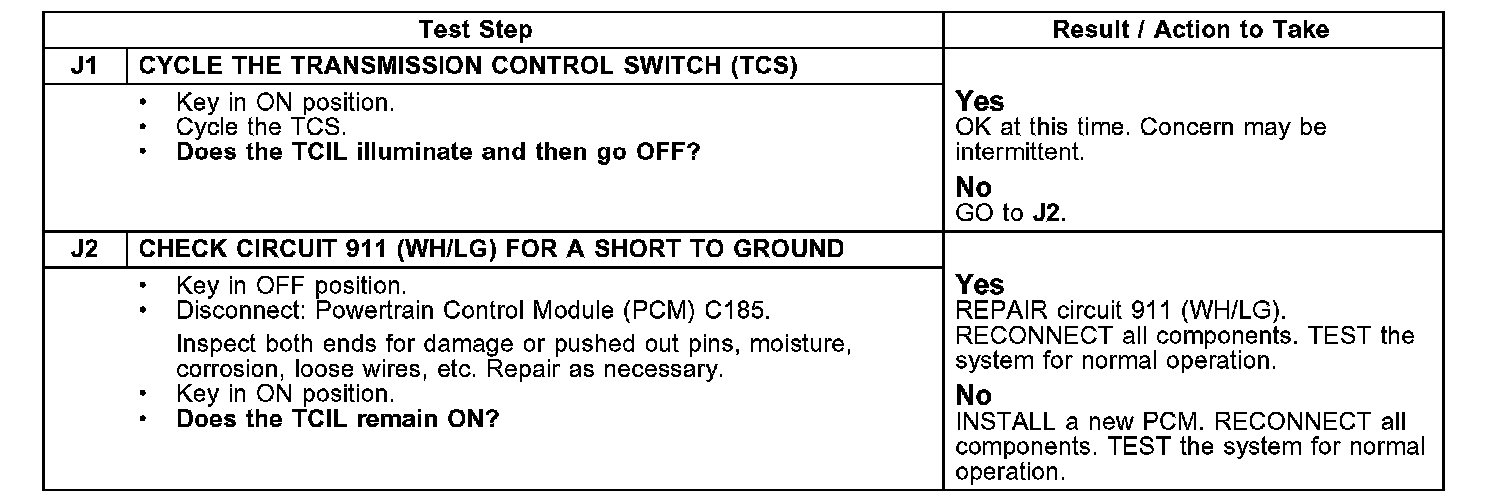

Test J1-J2:
