Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift
Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift

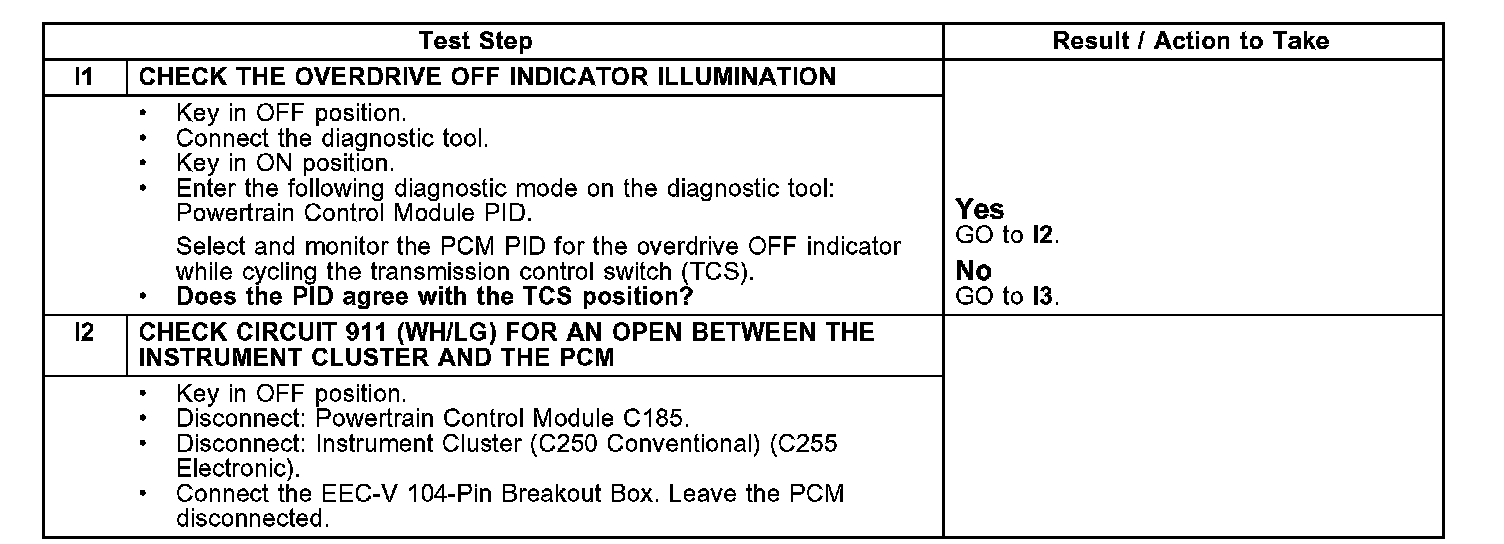

Test I1-I2:

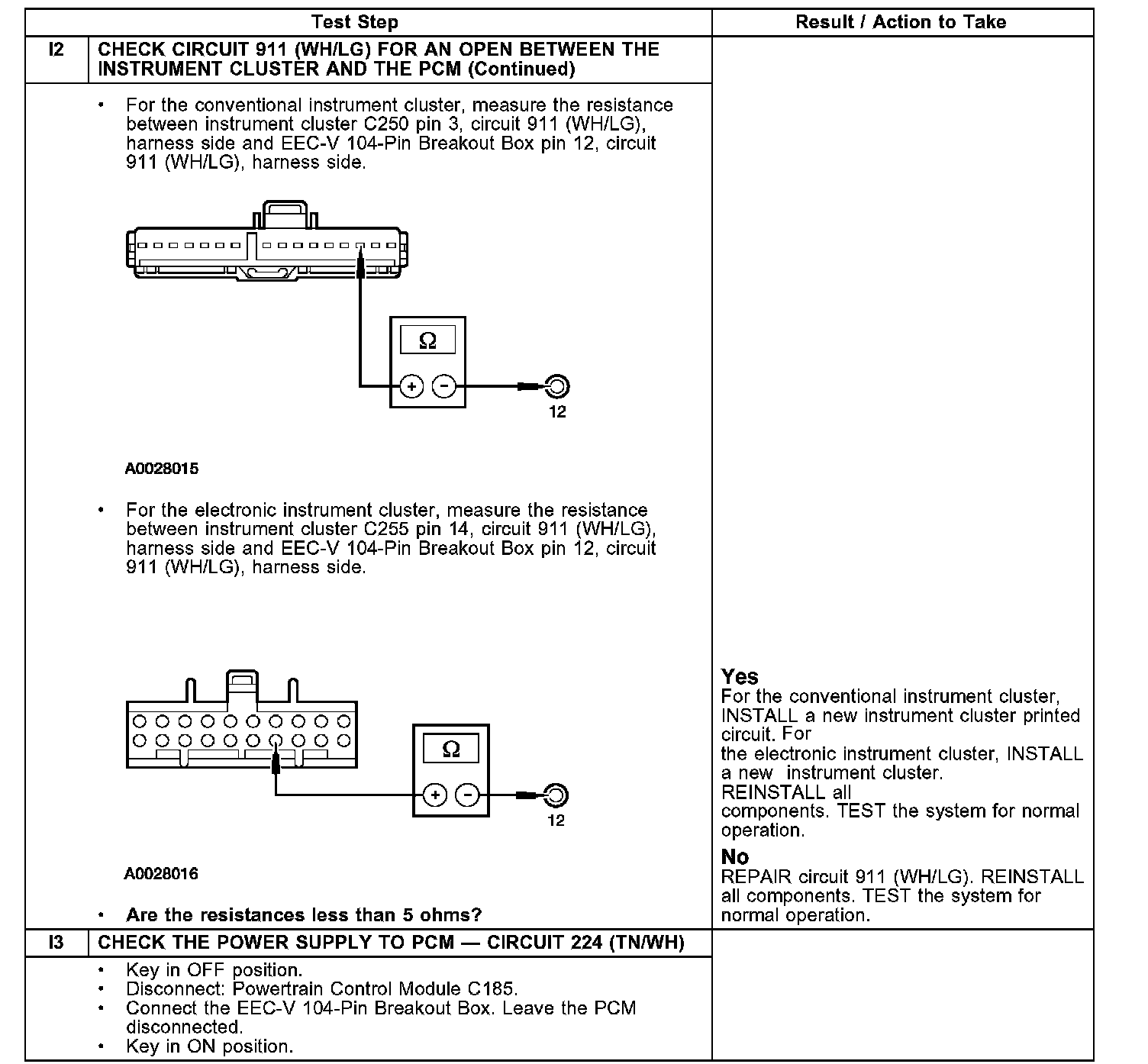

Test I2-I3:

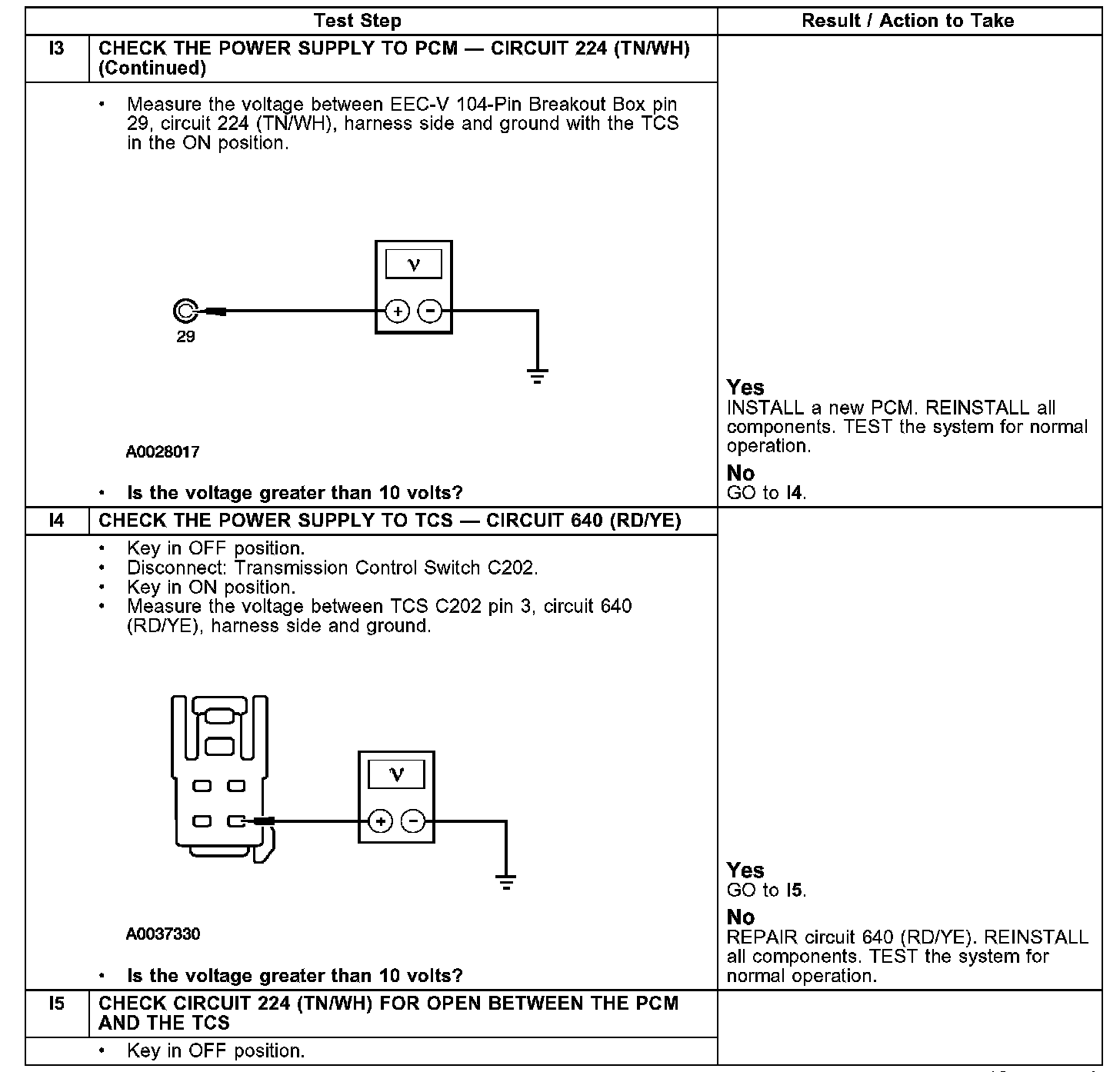

Test I3-I5:

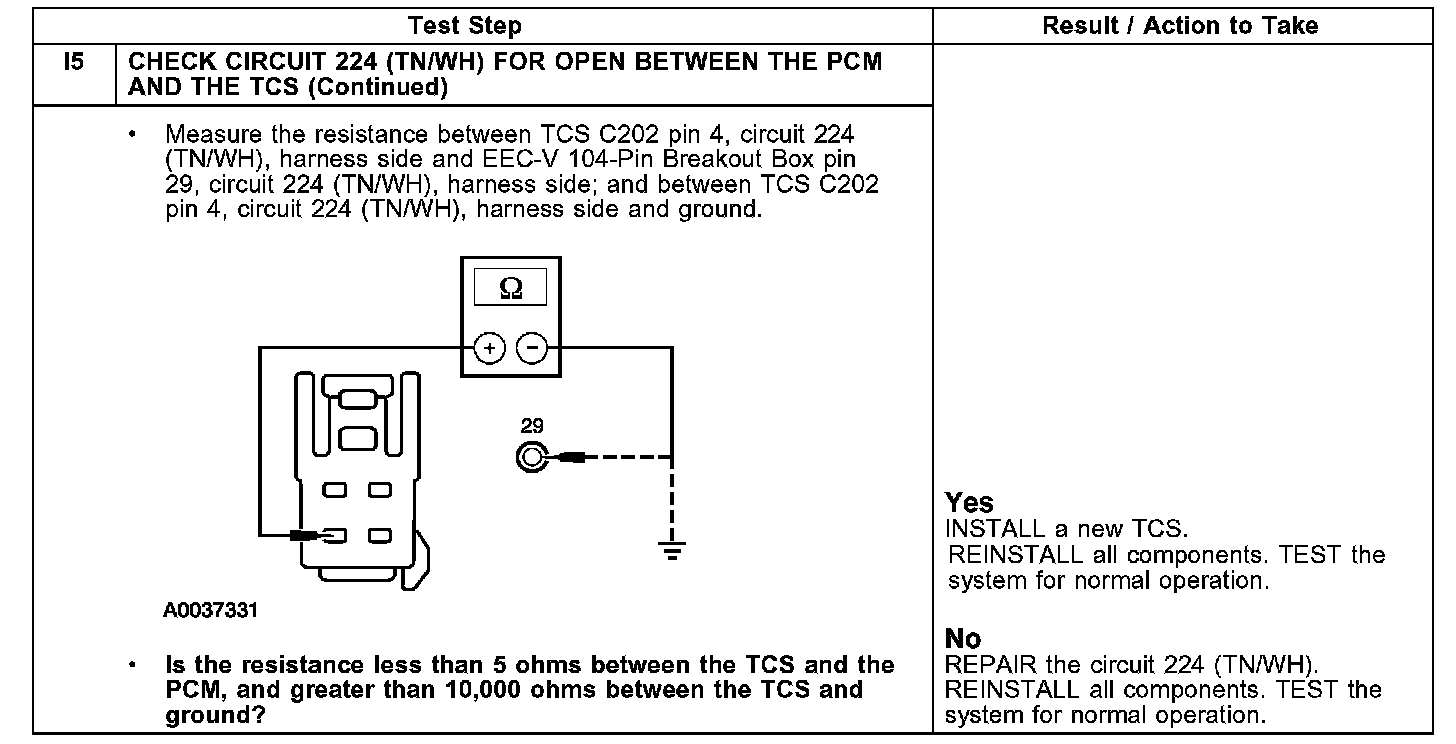

Test I5 Continued:
