Test F: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift
Test F: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift

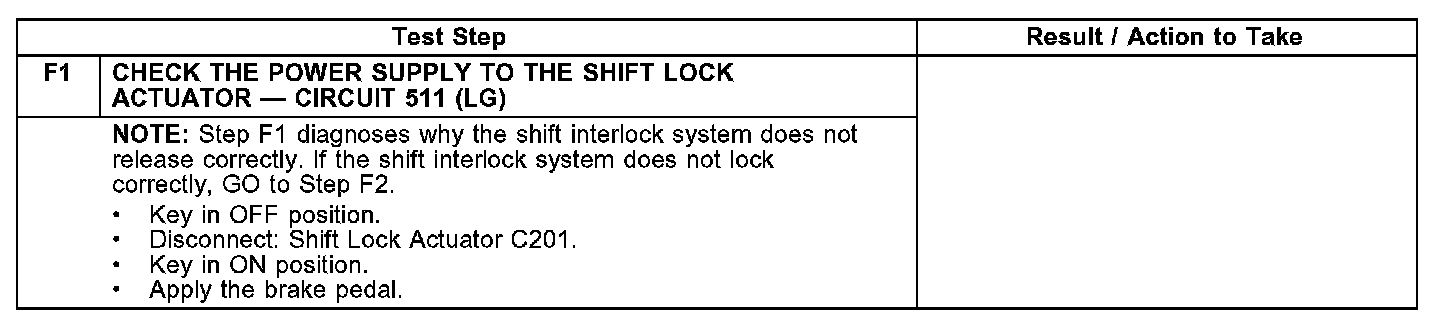

Test F1:

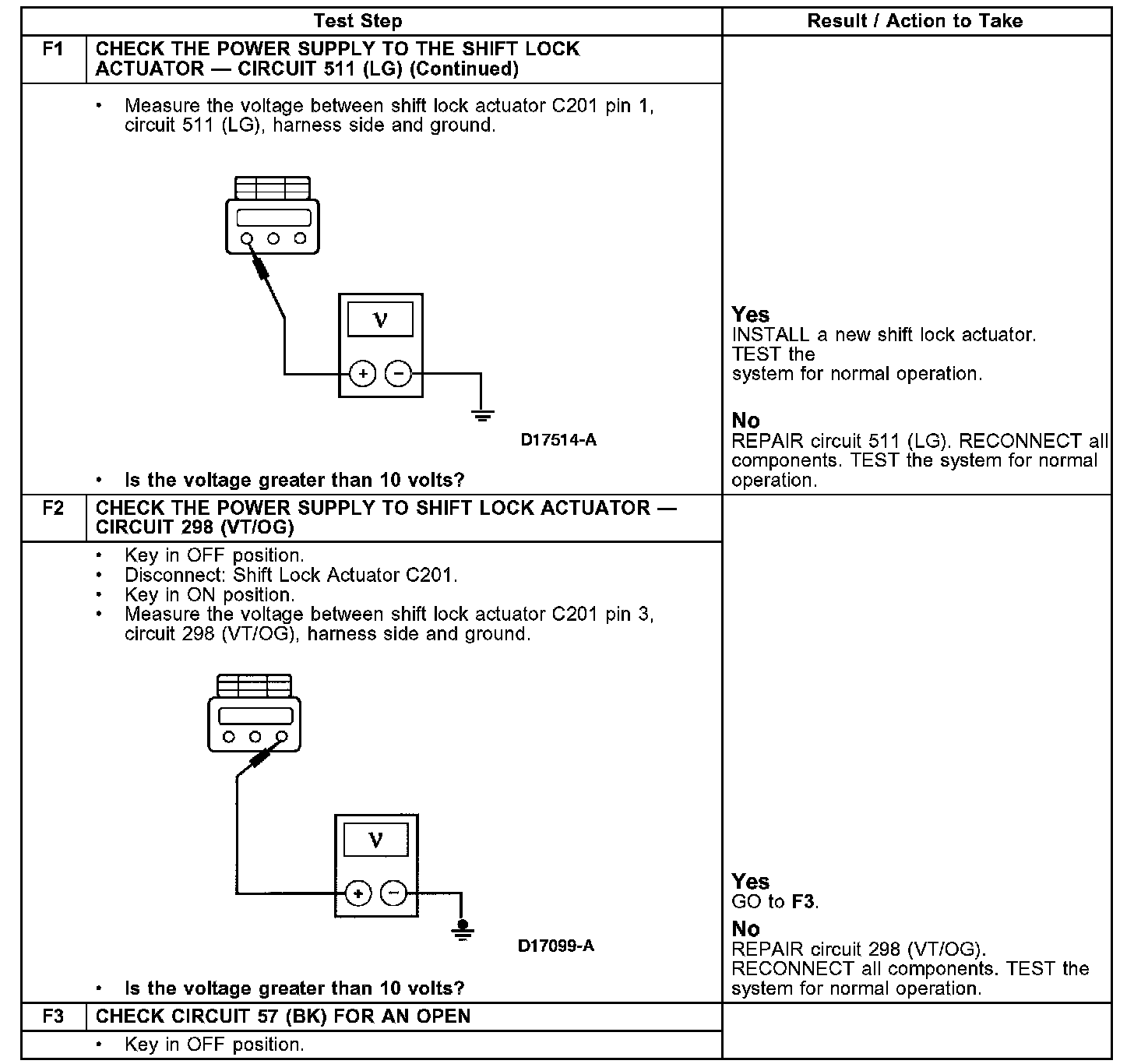

Test F1-F3:

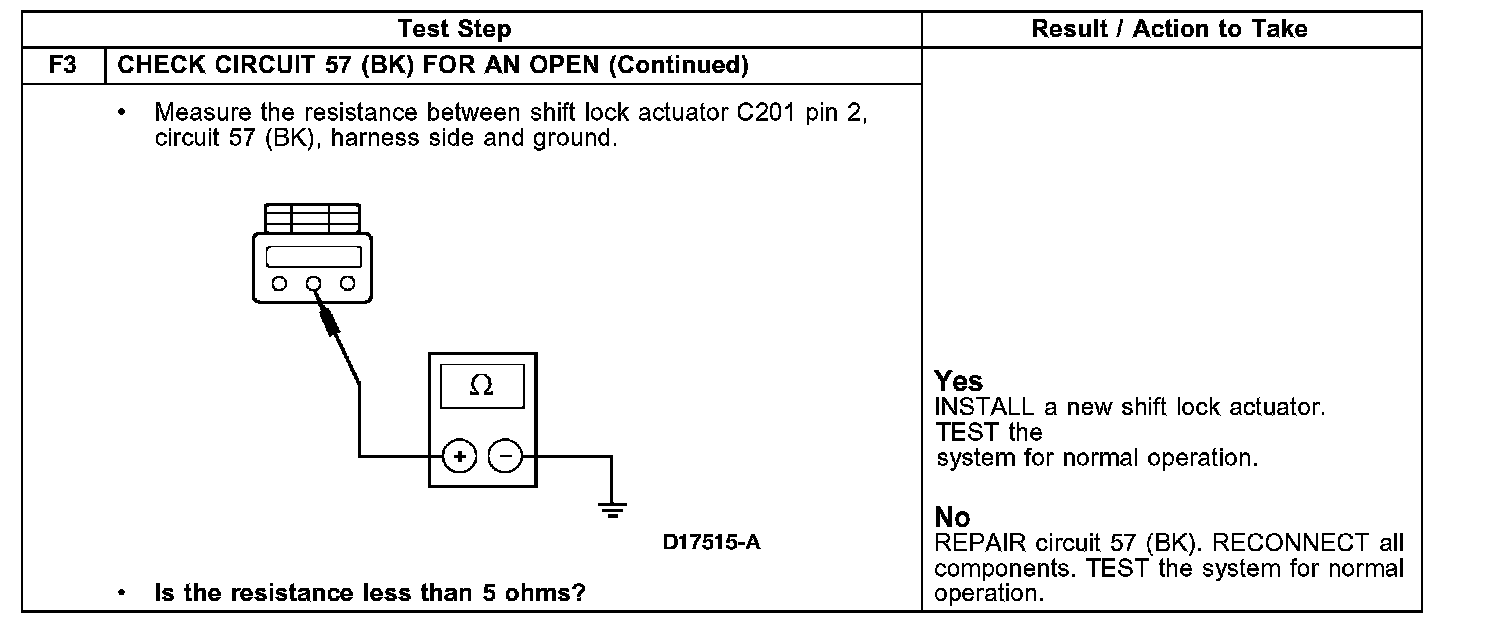

Test F3 Continued:
