Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly
Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly

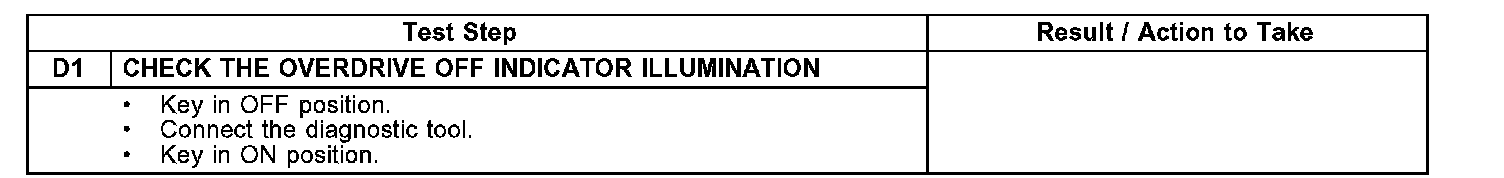

Test D1:

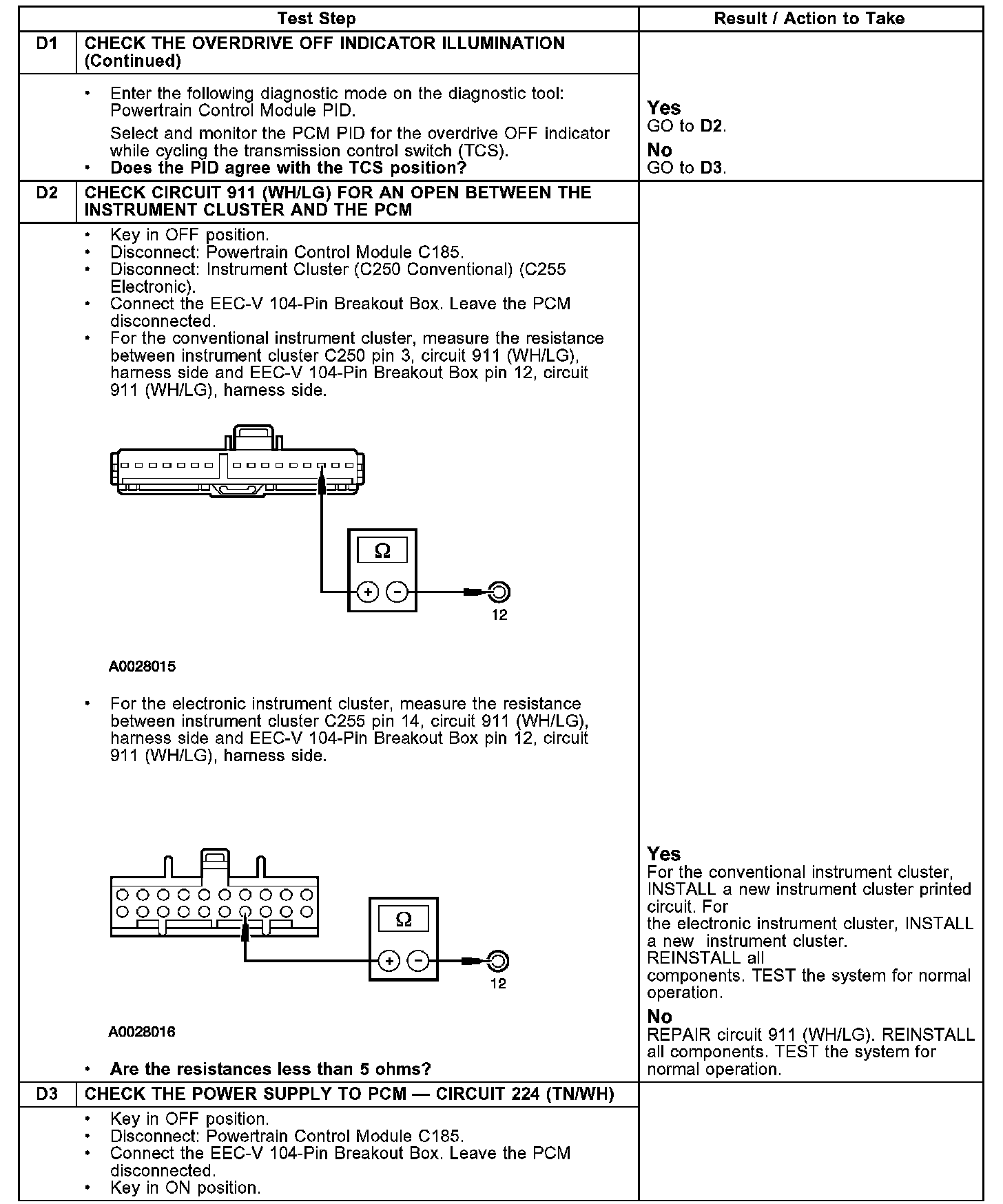

Test D1-D3:

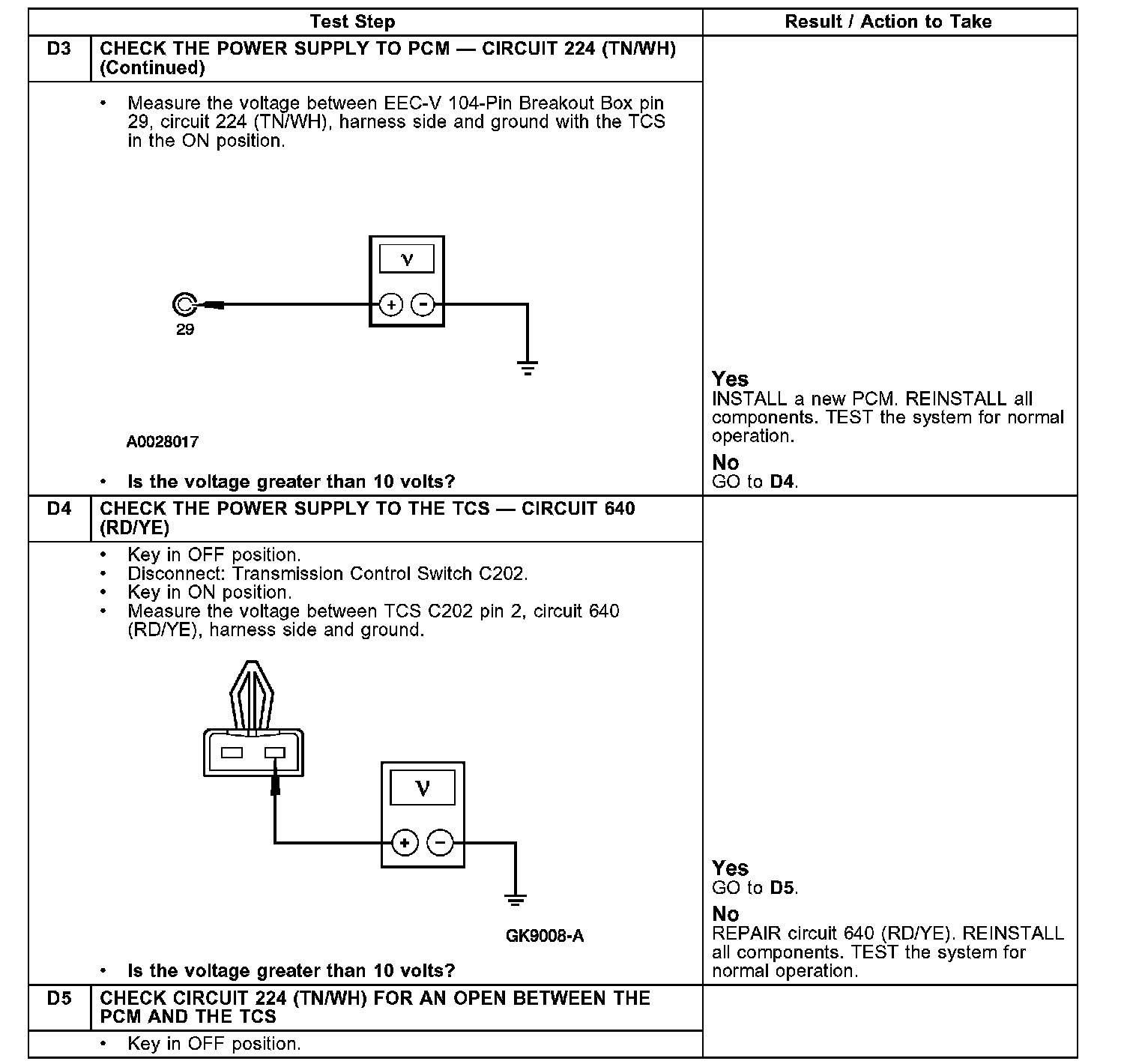

Test D3-D5:

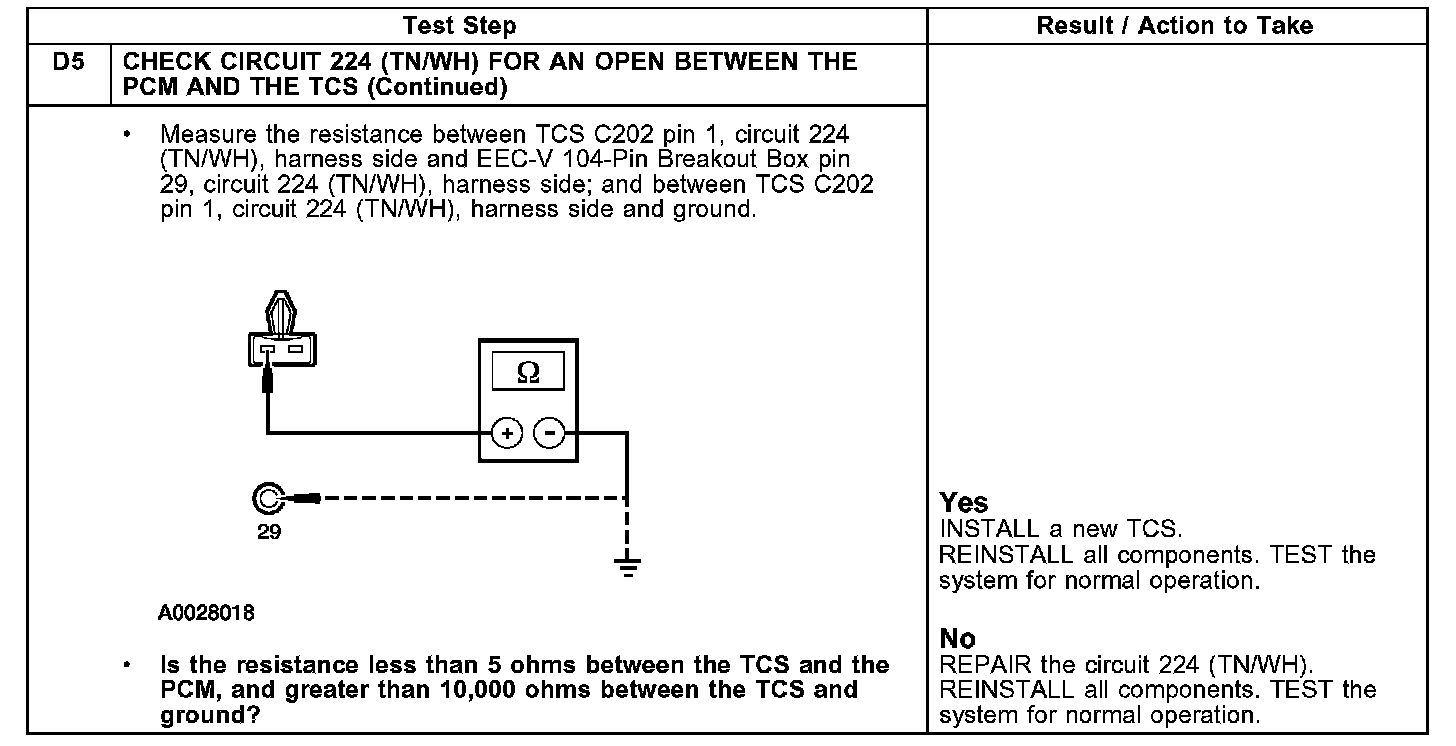

Test D5 Continued:
