Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - External Controls >> Test A: The Shift Interlock System Does Not Release/Lock Correctly - Column Shift

Test A: The Shift Interlock System Does Not Release/Lock Correctly - Column Shift

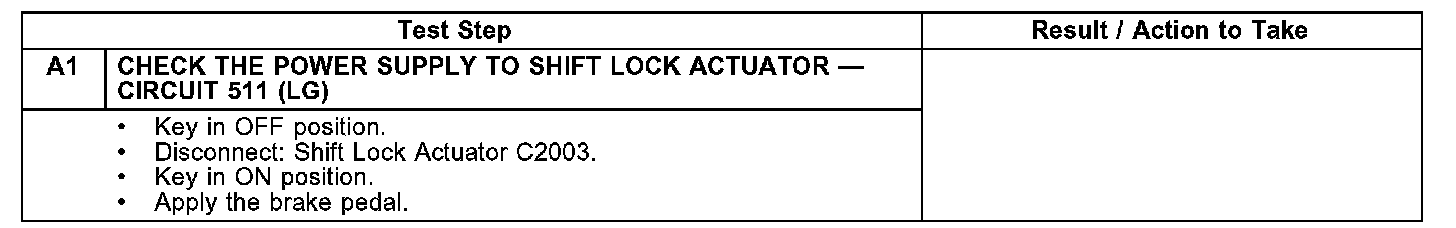

Test A1:

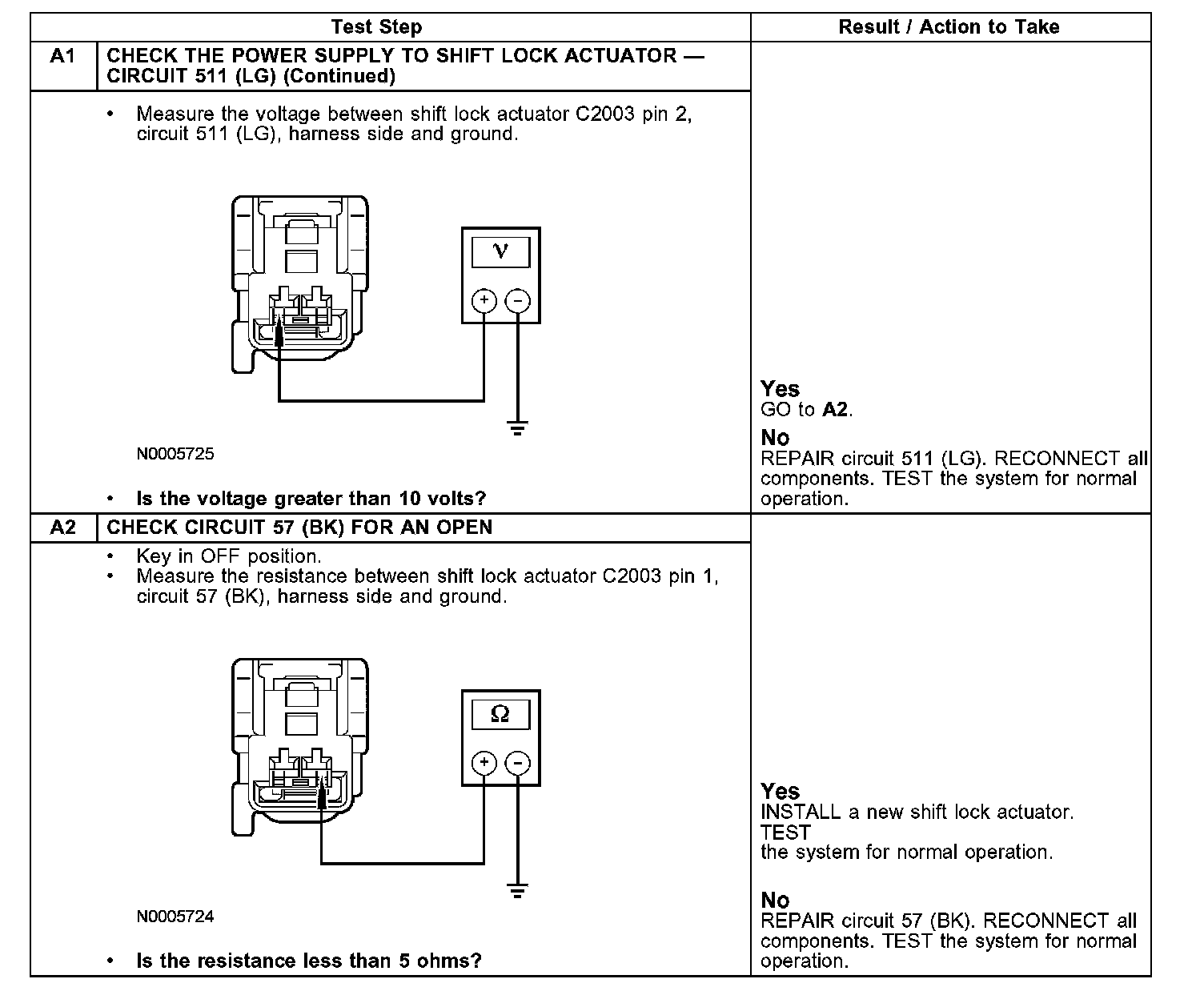

Test A1-A2:
