Grand Marquis V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Trouble Code Diagnostic Charts
>>
Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart
Diagnostic Trouble Code Charts

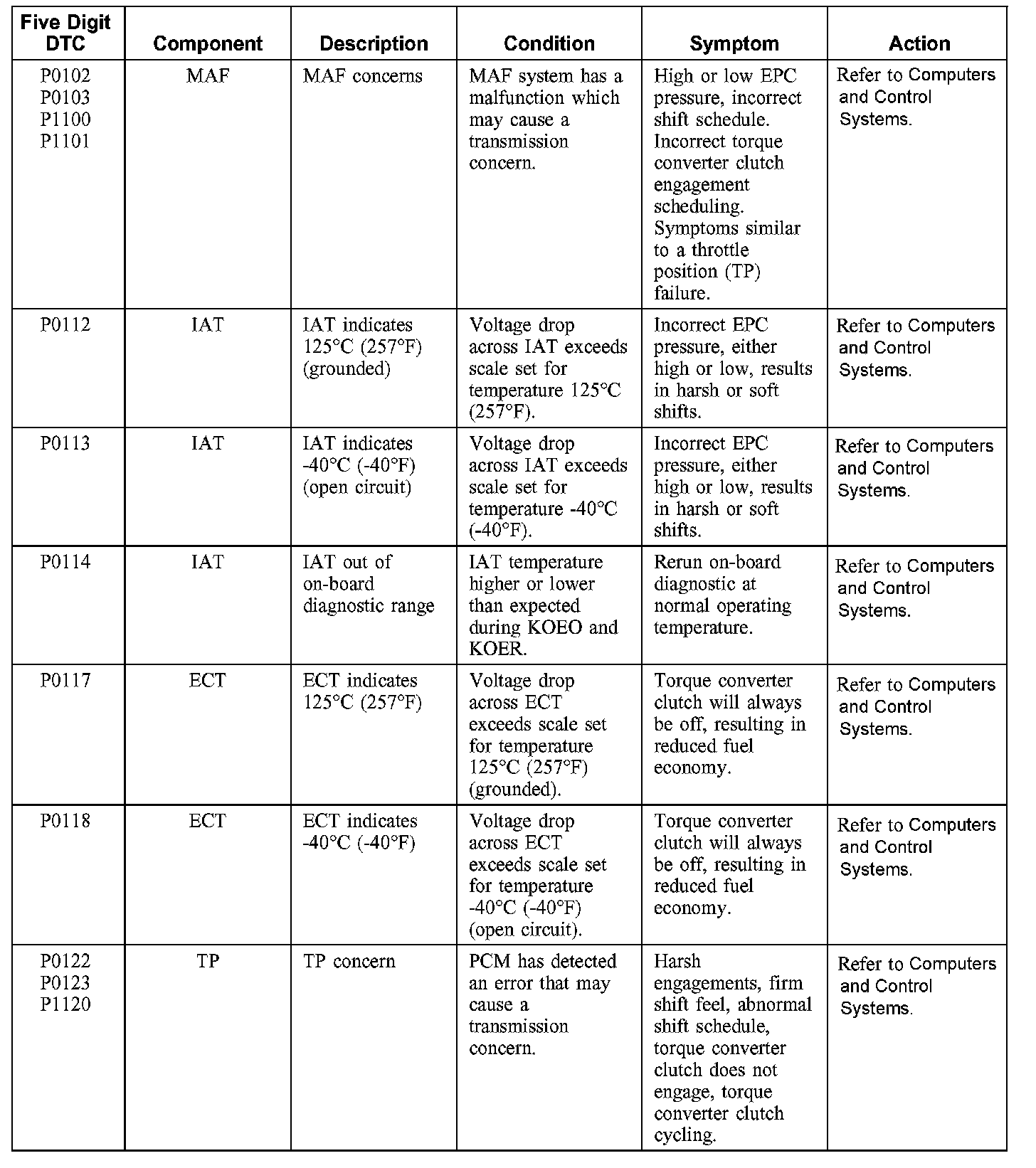

P0102-P1120:

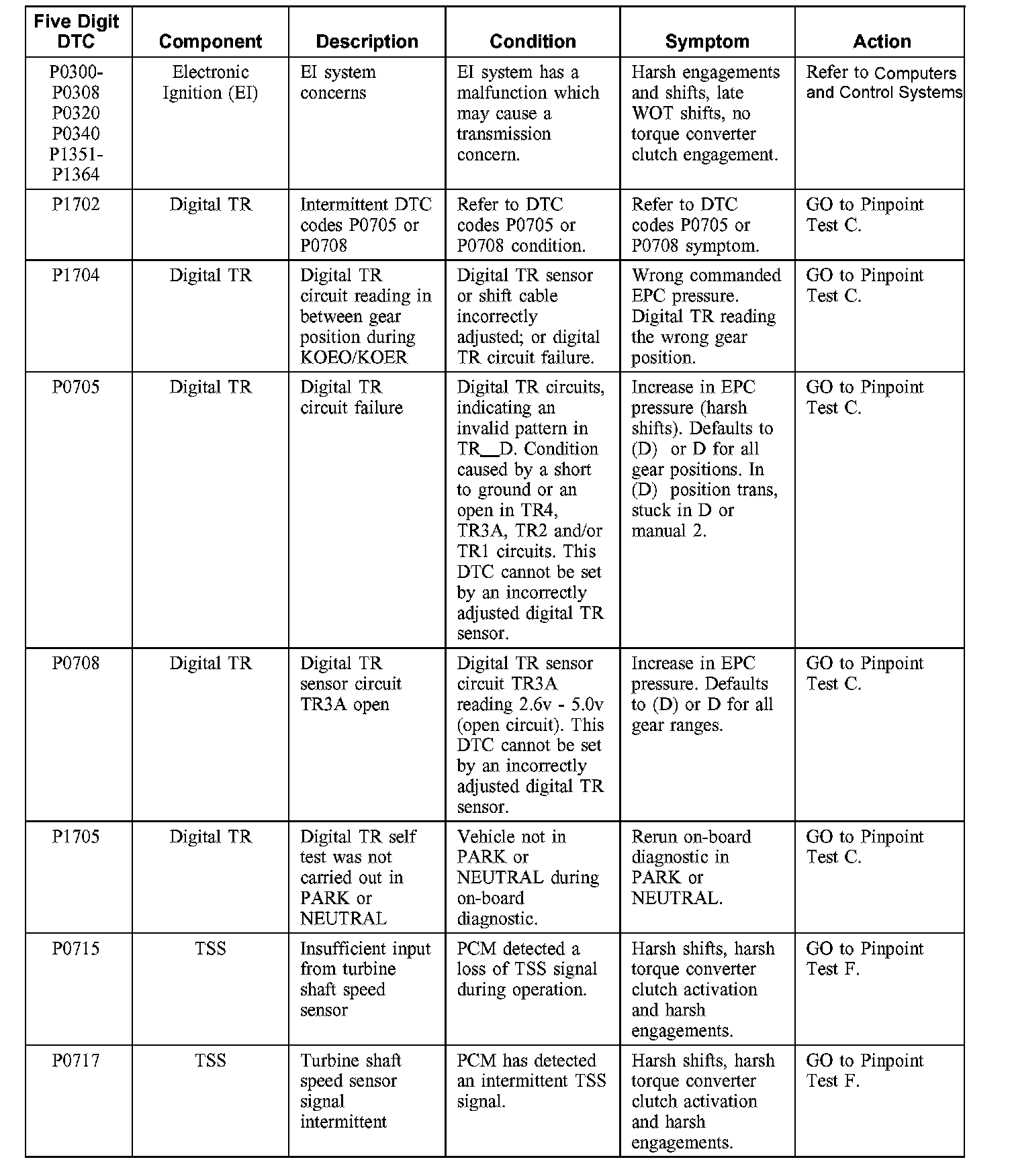

P0300-P1705:

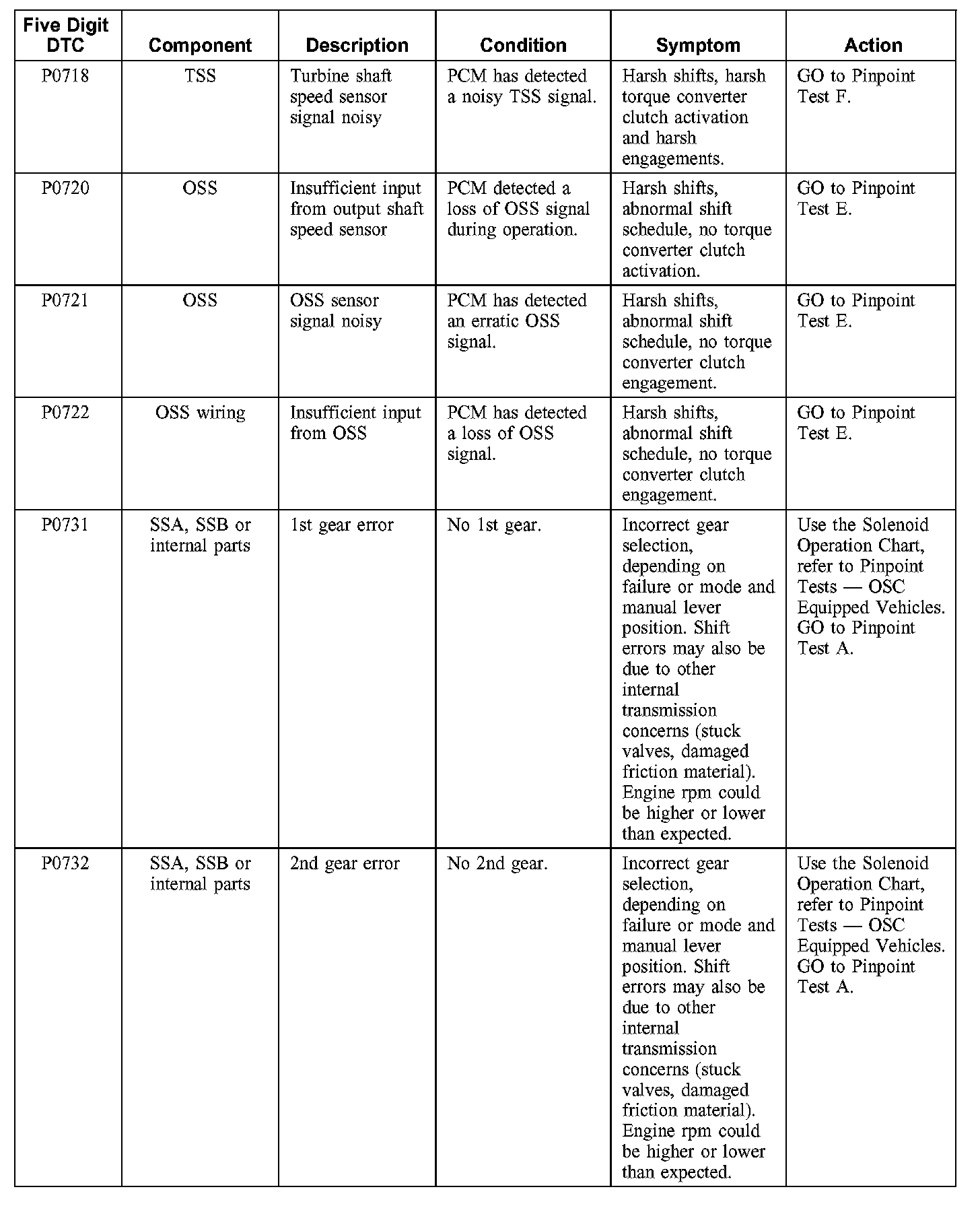

P0718-P0732:
P0733-P0743:
P0750-P1715:
P0733-P0743:

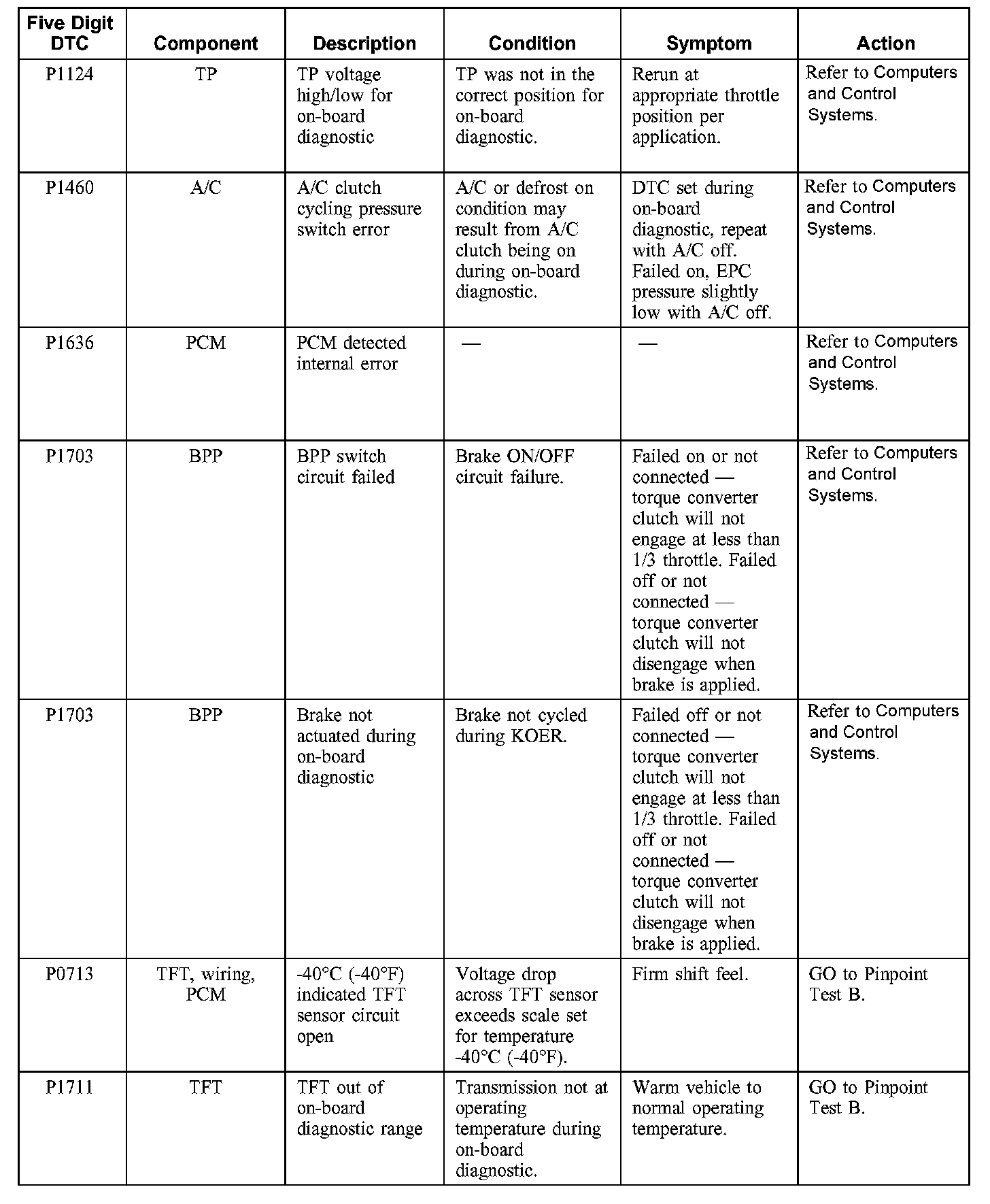

P0713-P1711:

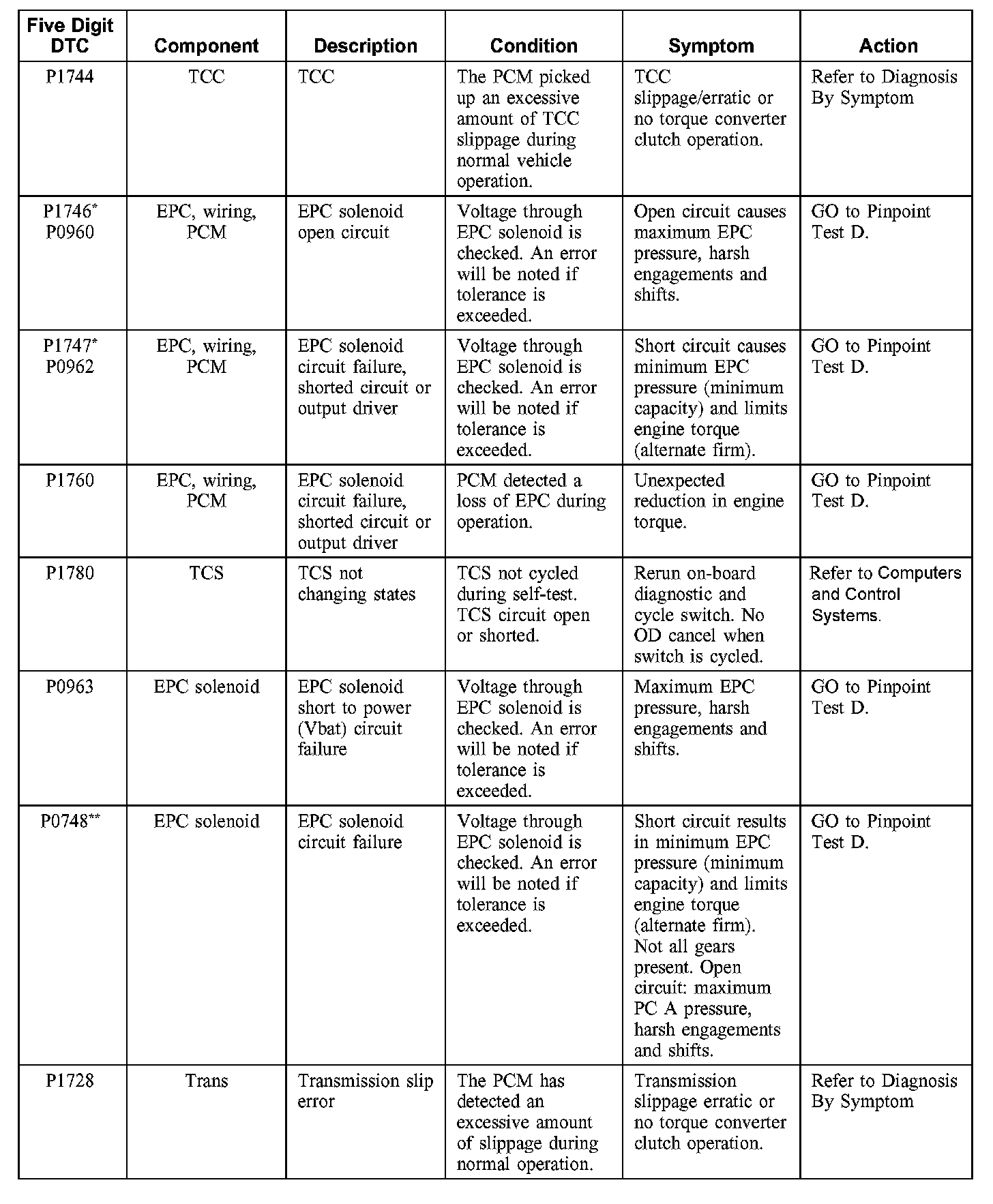

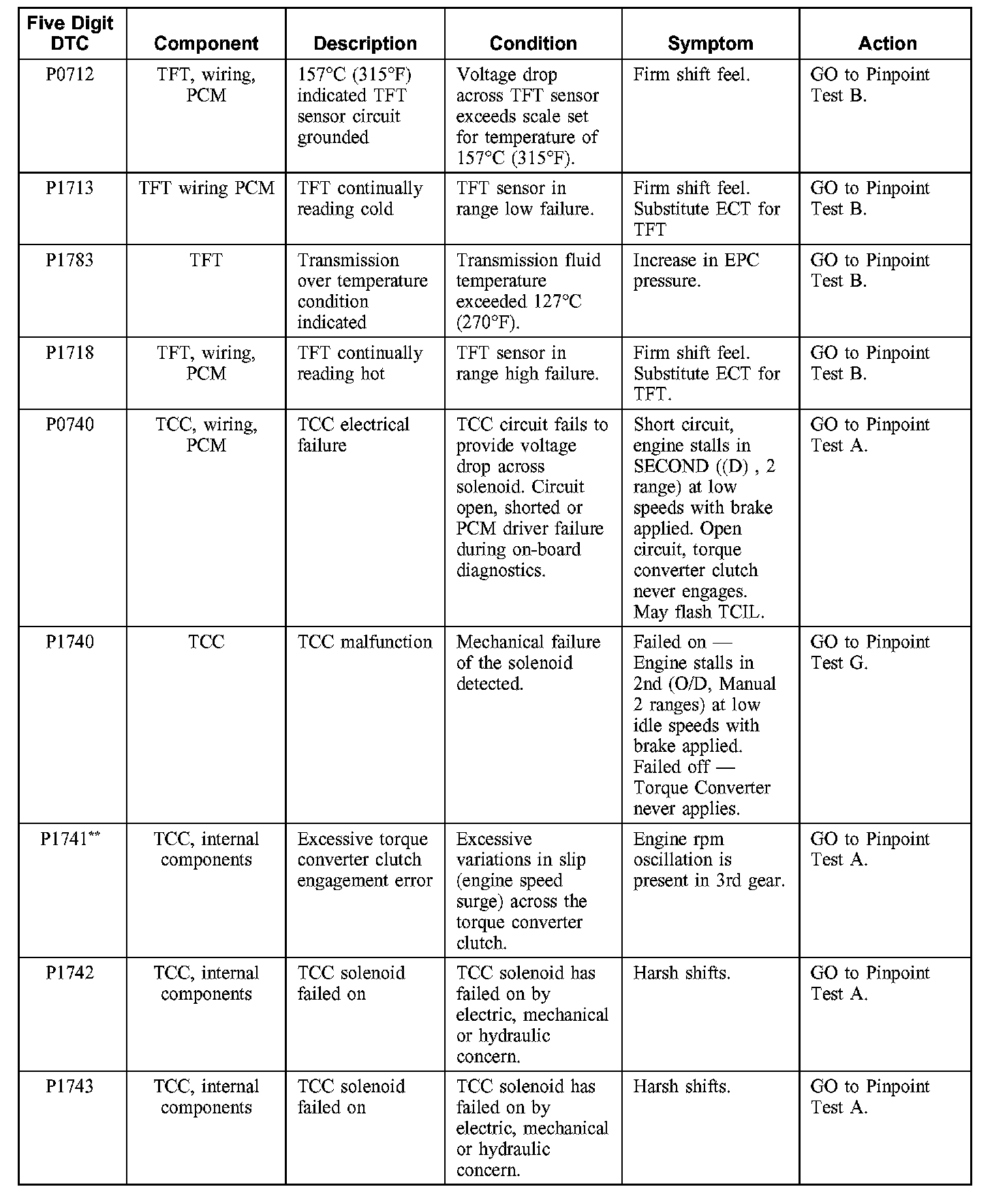

P0712-P1743:

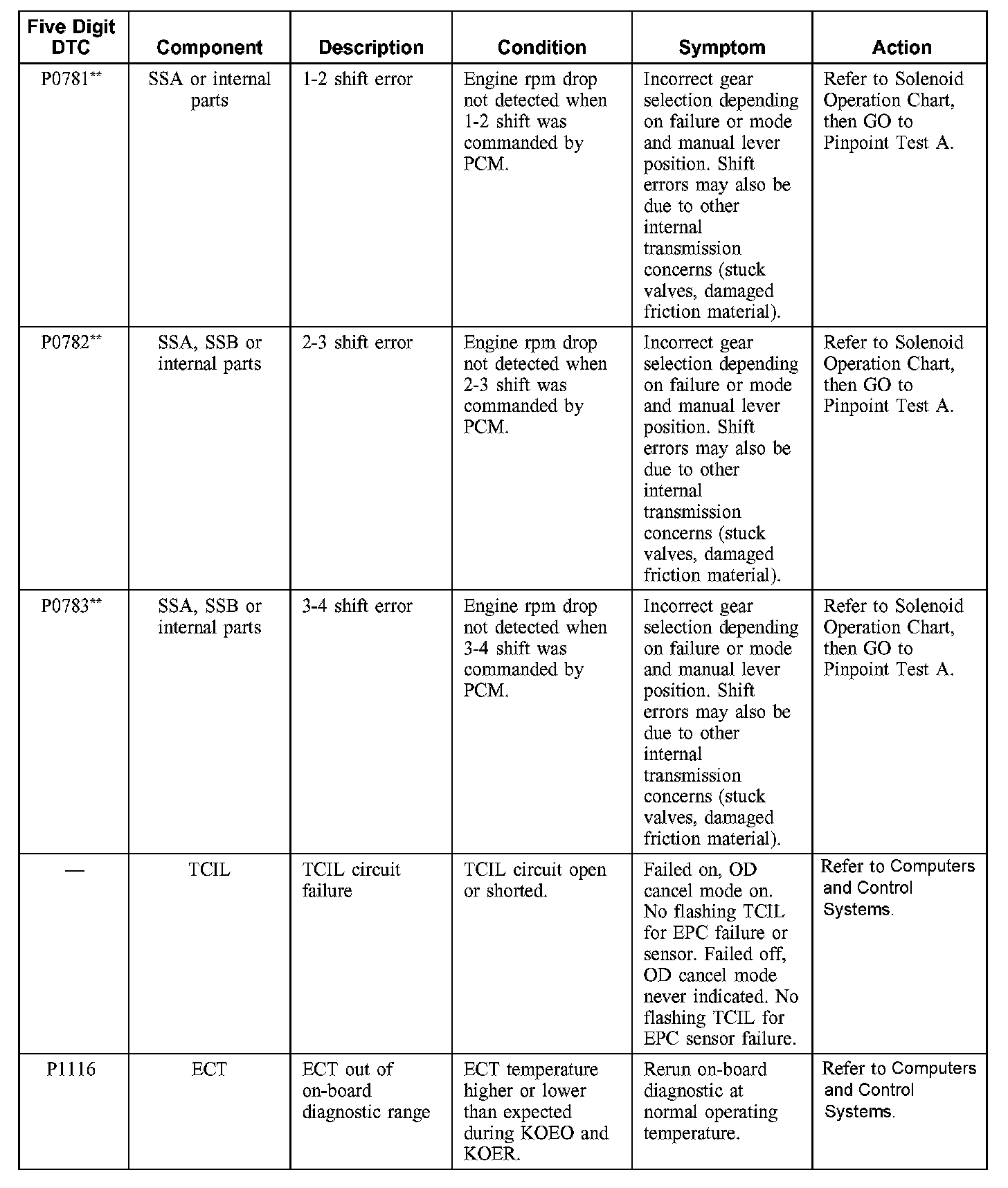

P0748-P1780:

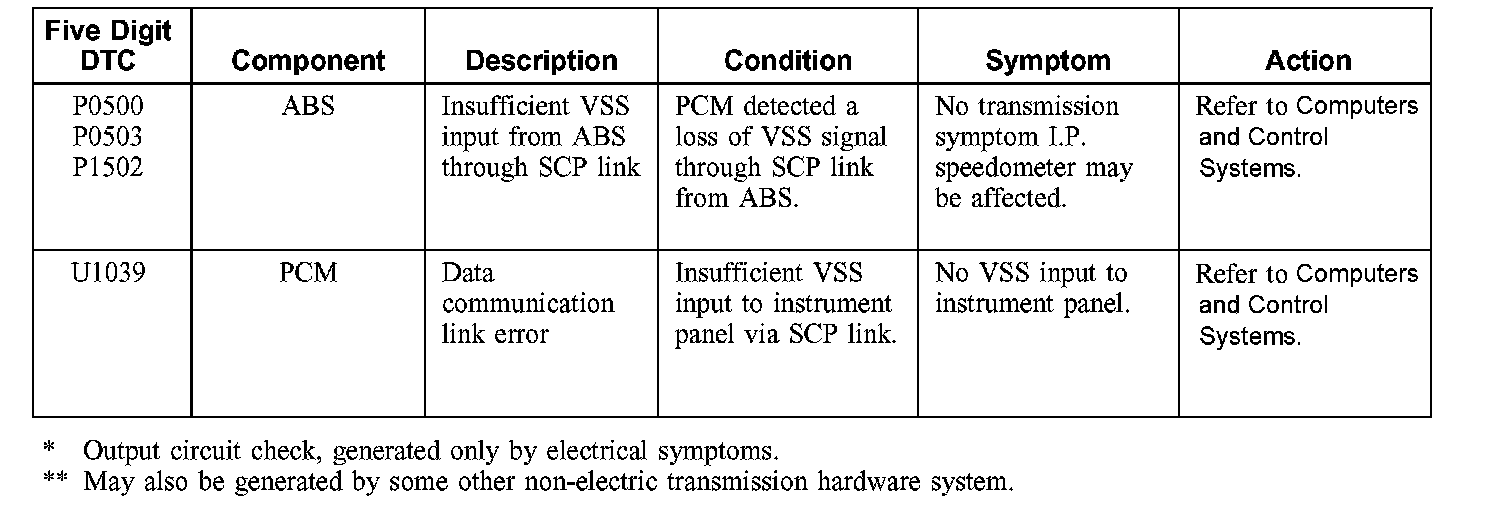

P0500-P1502 / U1039:
