Transmission Filler Tube Removal and Installation

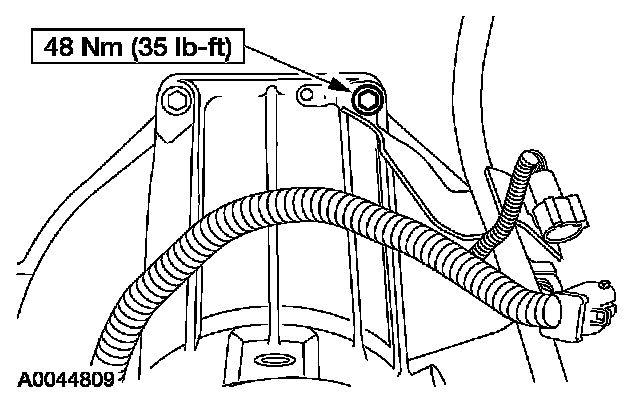

Transmission Filler Tube
Removal and Installation

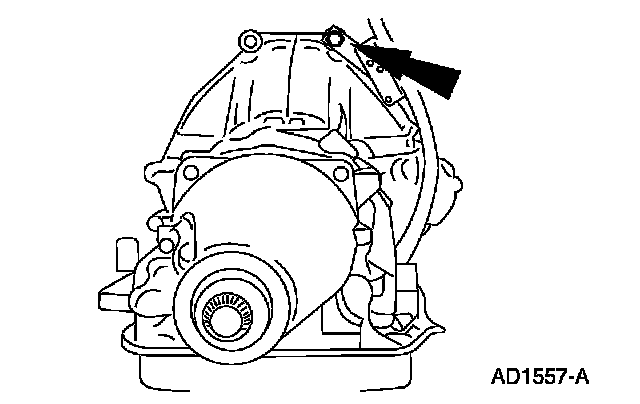

1. Remove the bolt.

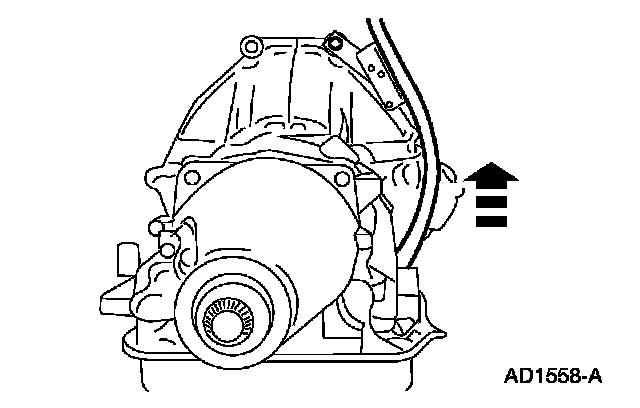

2. Remove the fluid filler tube.





3. To install, reverse the removal procedure.
