Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test I: DTCs C1790/C1795-LR/RR Air Suspension Air Spring Solenoid Output Circuit Failure

Test I: DTCs C1790/C1795-LR/RR Air Suspension Air Spring Solenoid Output Circuit Failure

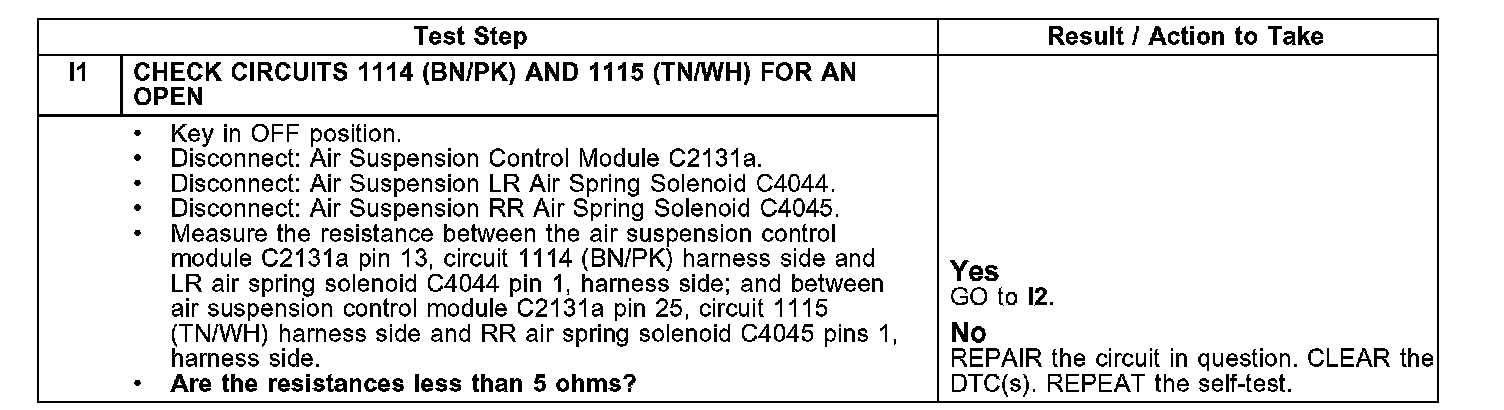

Test I1:



Test I2-I5:
