Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test H: DTC C1770-Air Suspension Vent Solenoid Output Circuit Failure

Test H: DTC C1770-Air Suspension Vent Solenoid Output Circuit Failure

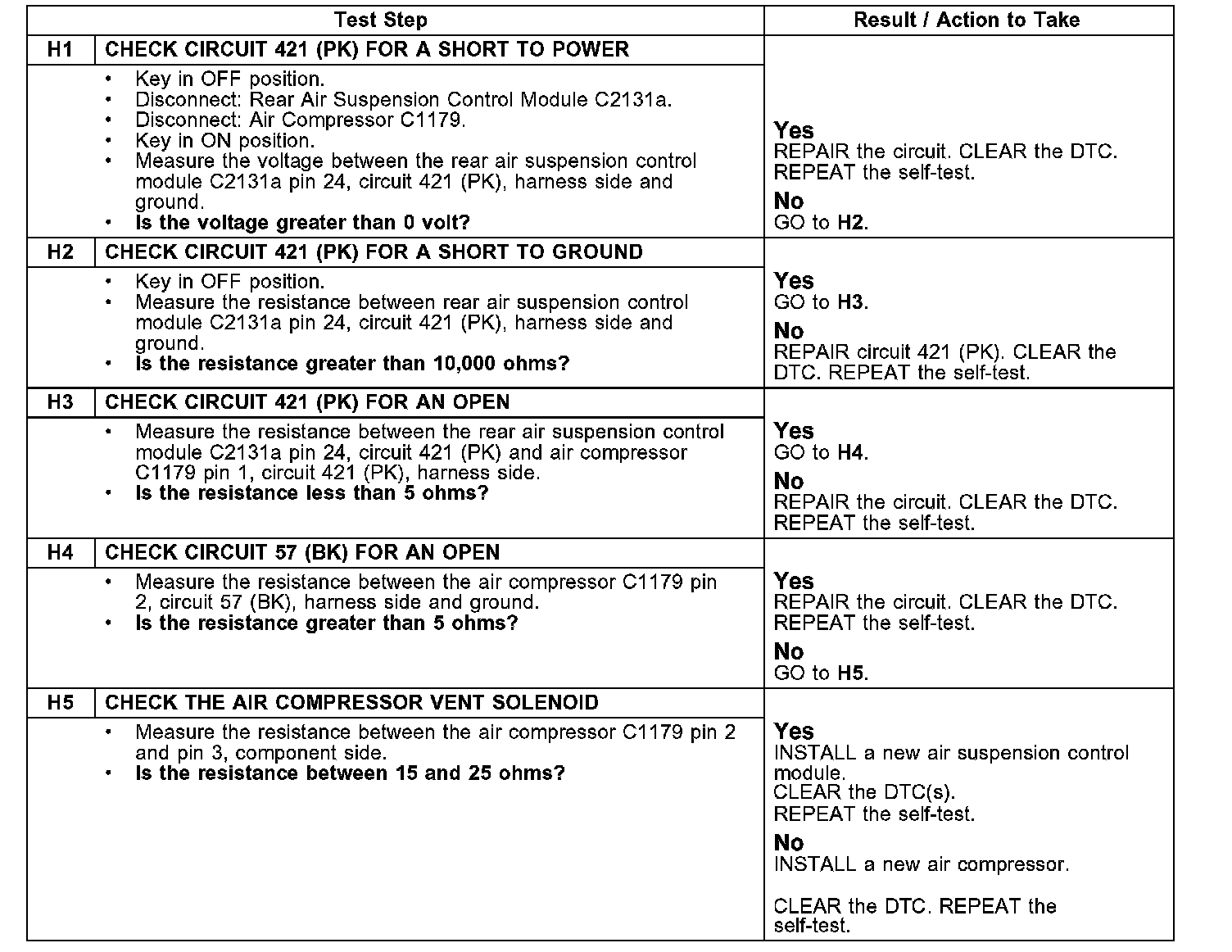

Test H1-H5:
