Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test G: DTC C1760-Air Suspension Rear Height Sensor High Signal Circuit Failure

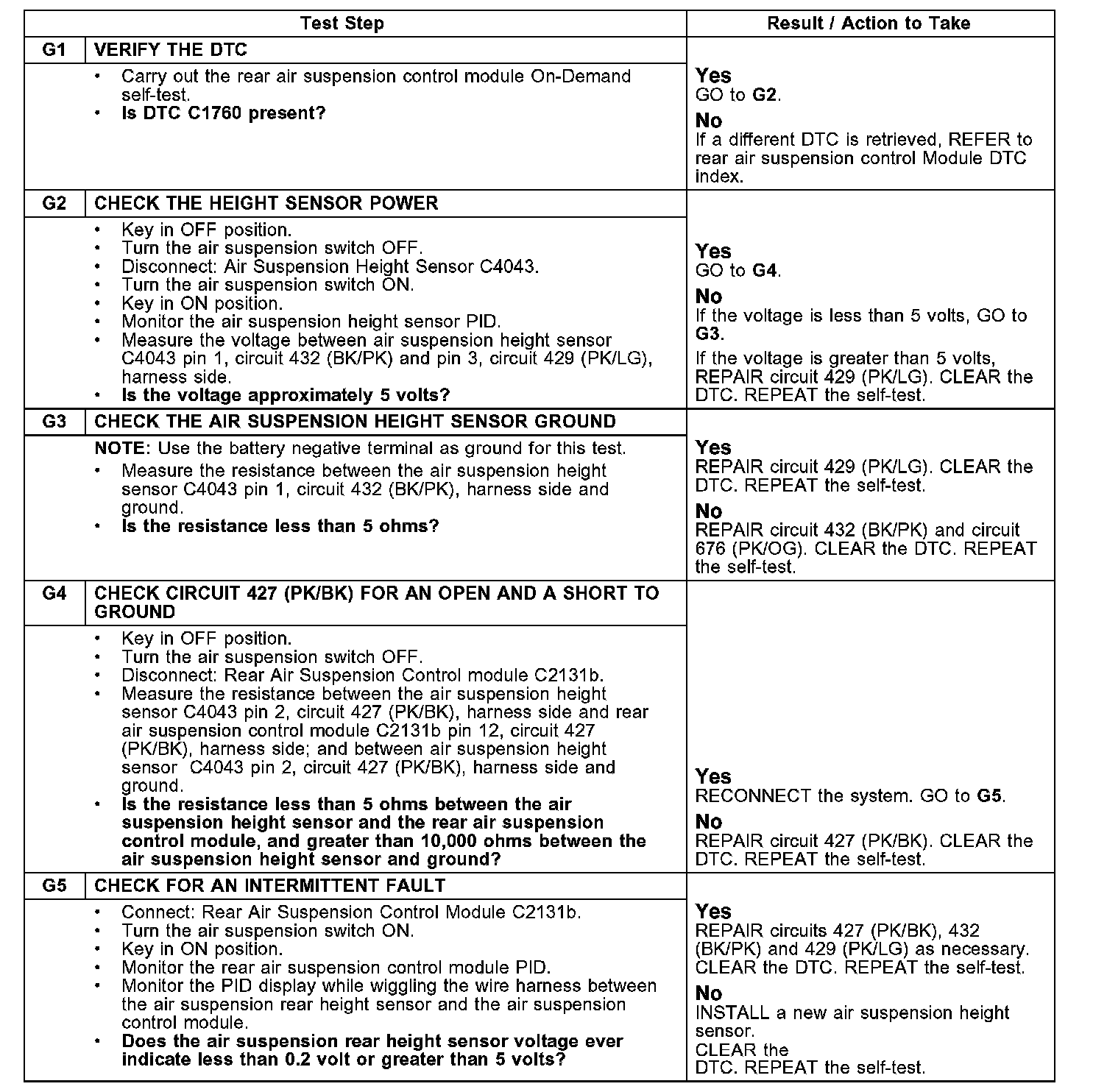

Test G: DTC C1760-Air Suspension Rear Height Sensor High Signal Circuit Failure

Test G1-G5:
