Test F: DTC C1726-Air Suspension Pneumatic Failure

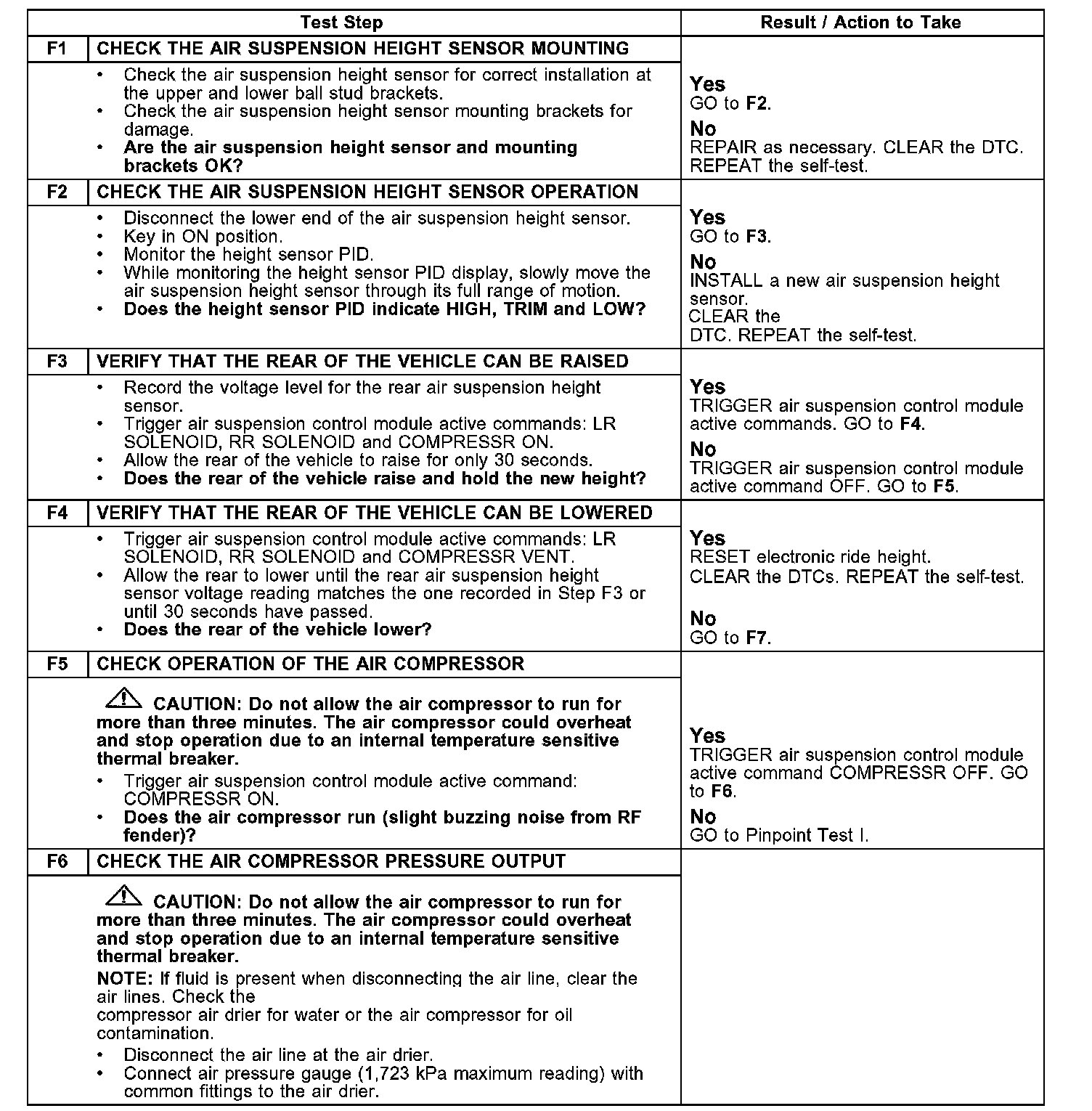

Test F1-F6:

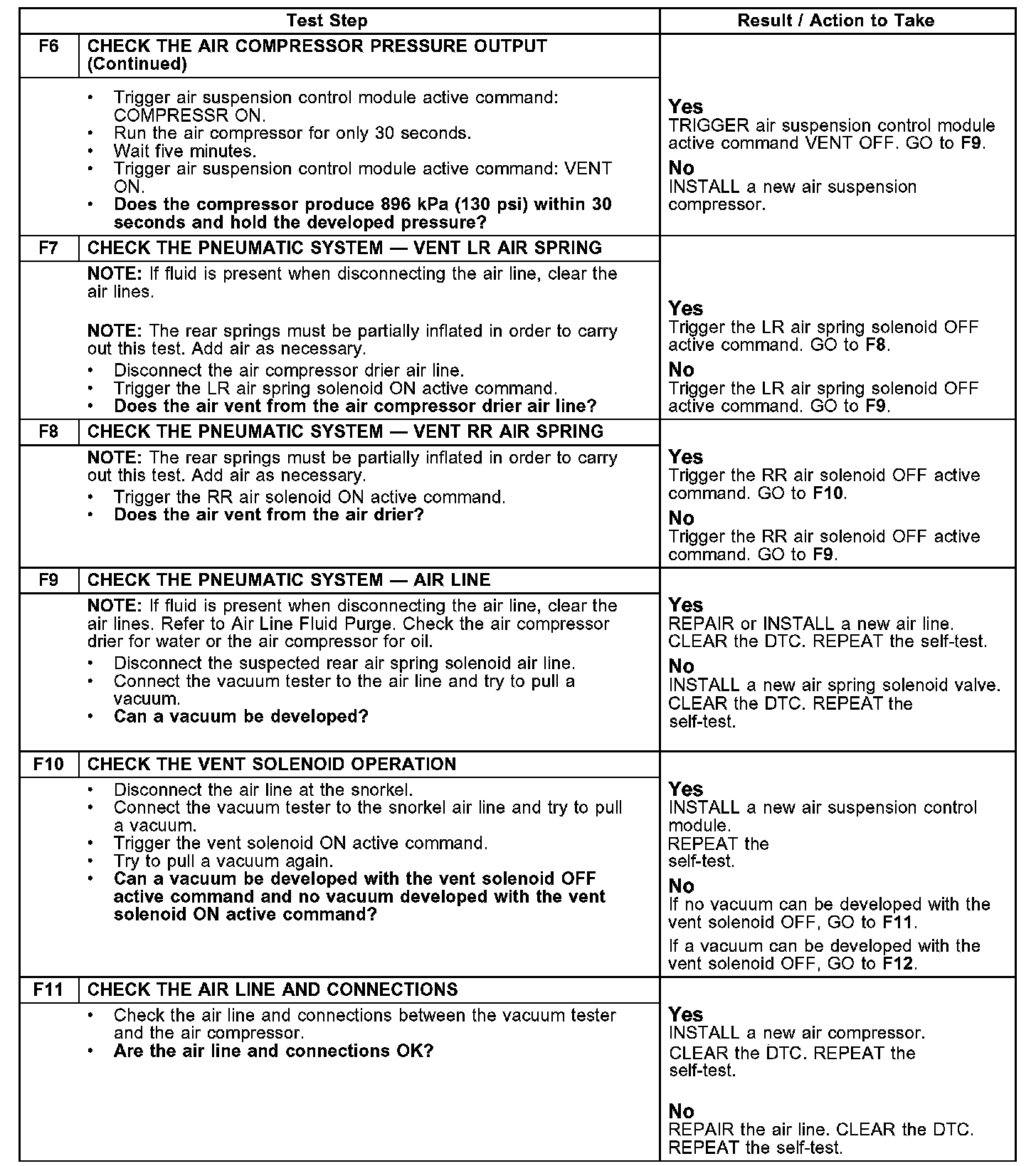

Test F6-F11:

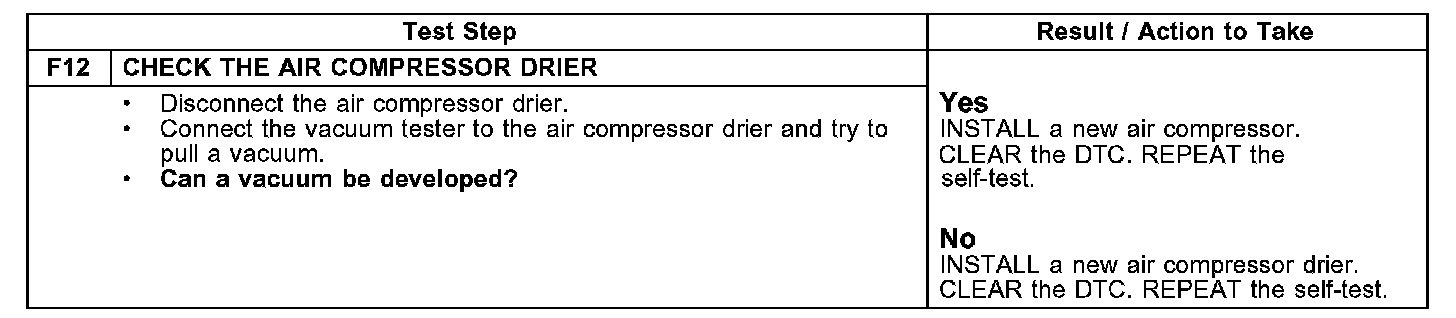

Test F12:

F: DTC C1726-Air Suspension Pneumatic Failure

NOTE: Repair all other DTCs before repairing DTC C1726.

NOTE: It can be necessary to partially vent air from the rear air springs during this Pinpoint Test.
