Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test E: DTC C1724-Air Suspension Height Sensor Power Circuit Failure

Test E: DTC C1724-Air Suspension Height Sensor Power Circuit Failure

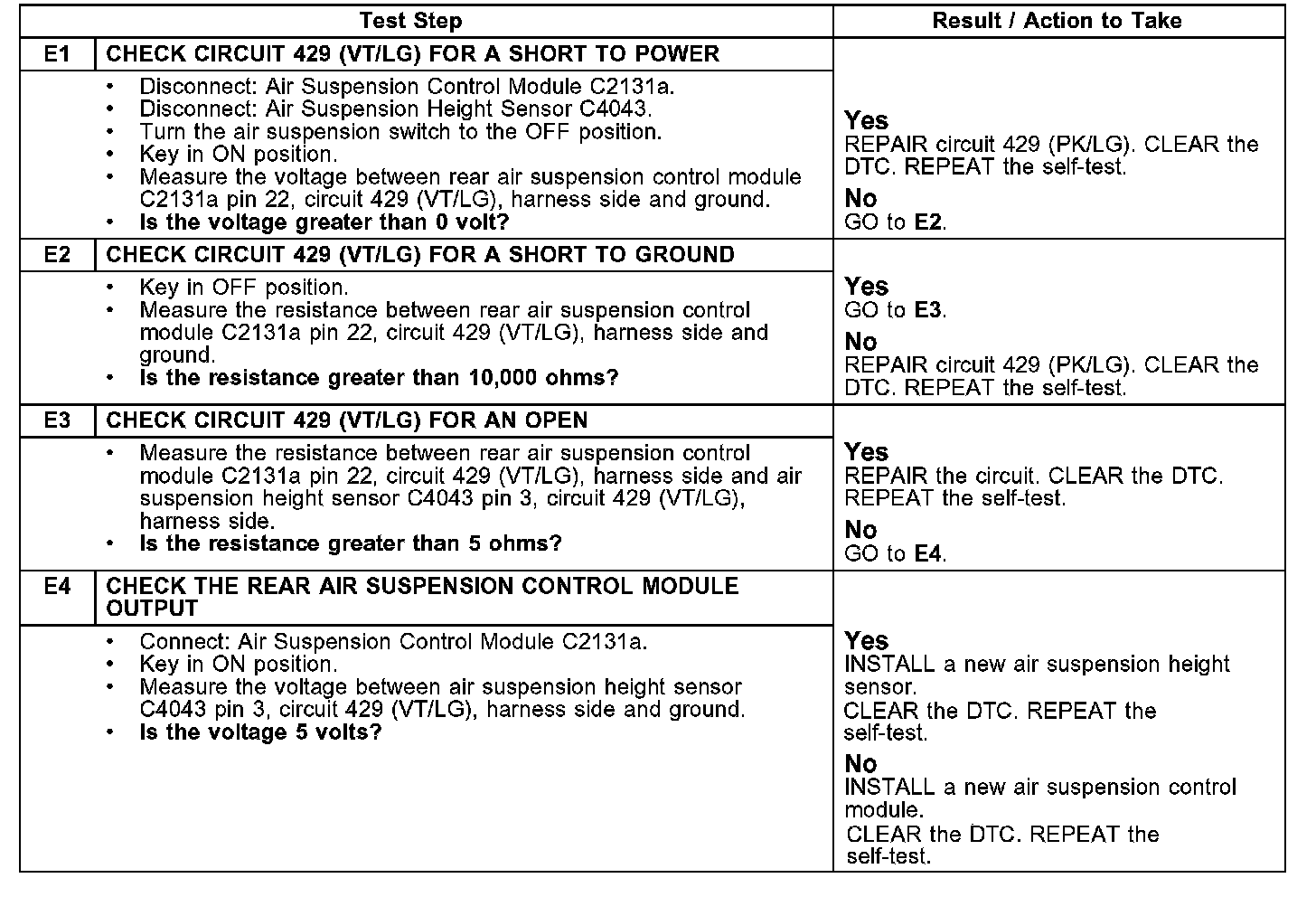

Test E1-E4:
