Air Spring Refold

Air Spring Refold

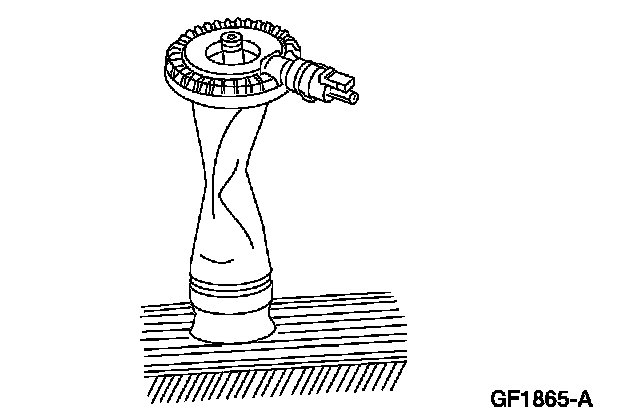

1. CAUTION: Do not clamp any portion of the air spring piston.





Place the air spring on a flat surface.

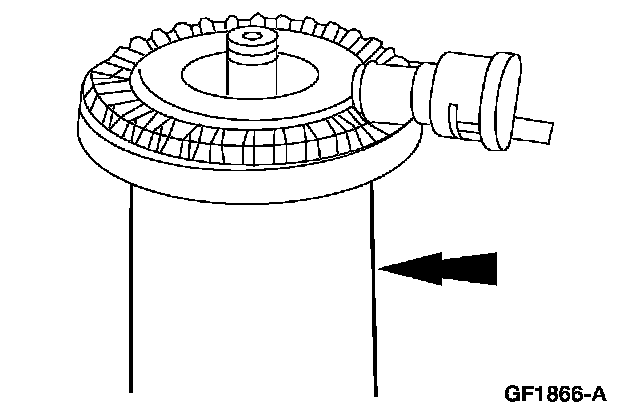

2. Remove the air spring solenoid to expand the collapsed air bag.

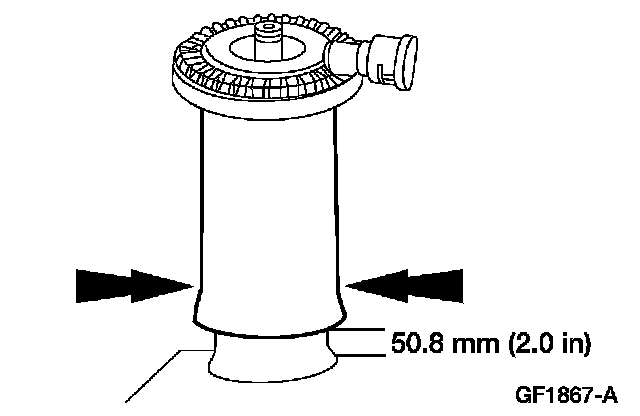

3. Push the membrane down over the piston to the correct height.

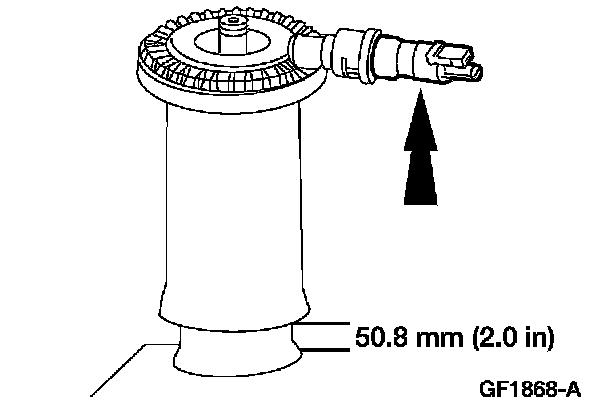

4. Install the air spring solenoid to help maintain the correct height.
