Test G: No Communication With the Variable Assist Power Steering (VAPS) Module/Unable to Enter Self-Test

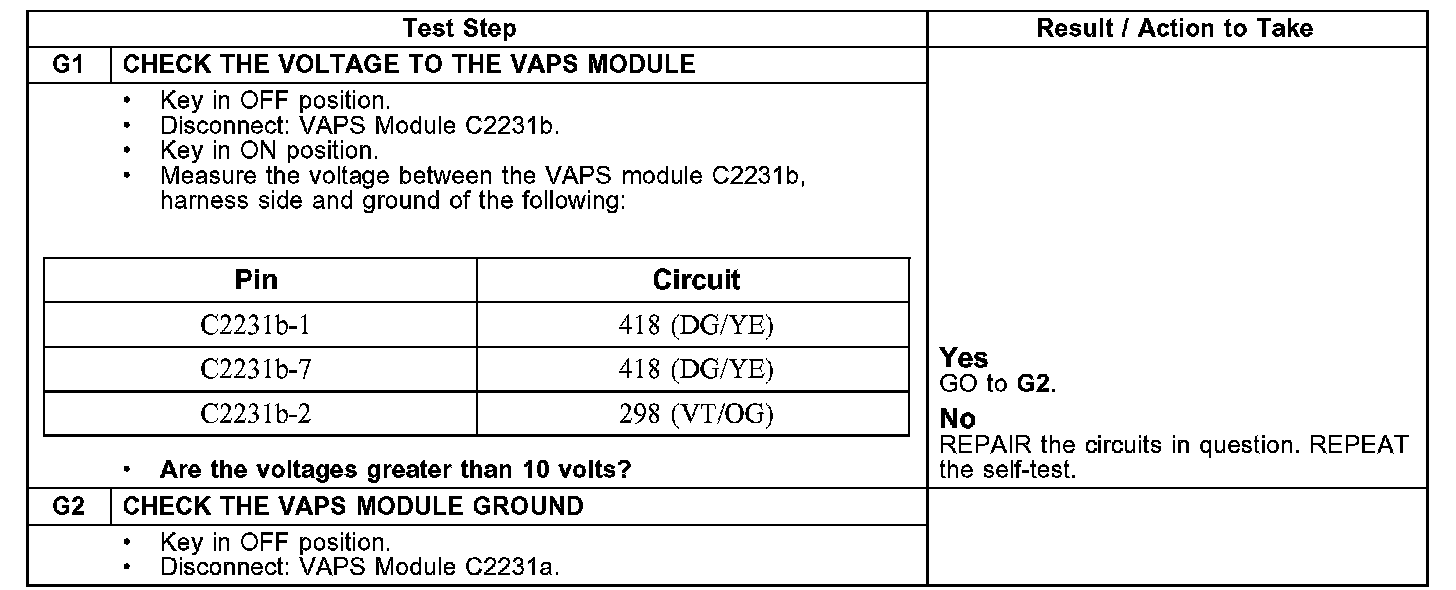

Test G1:

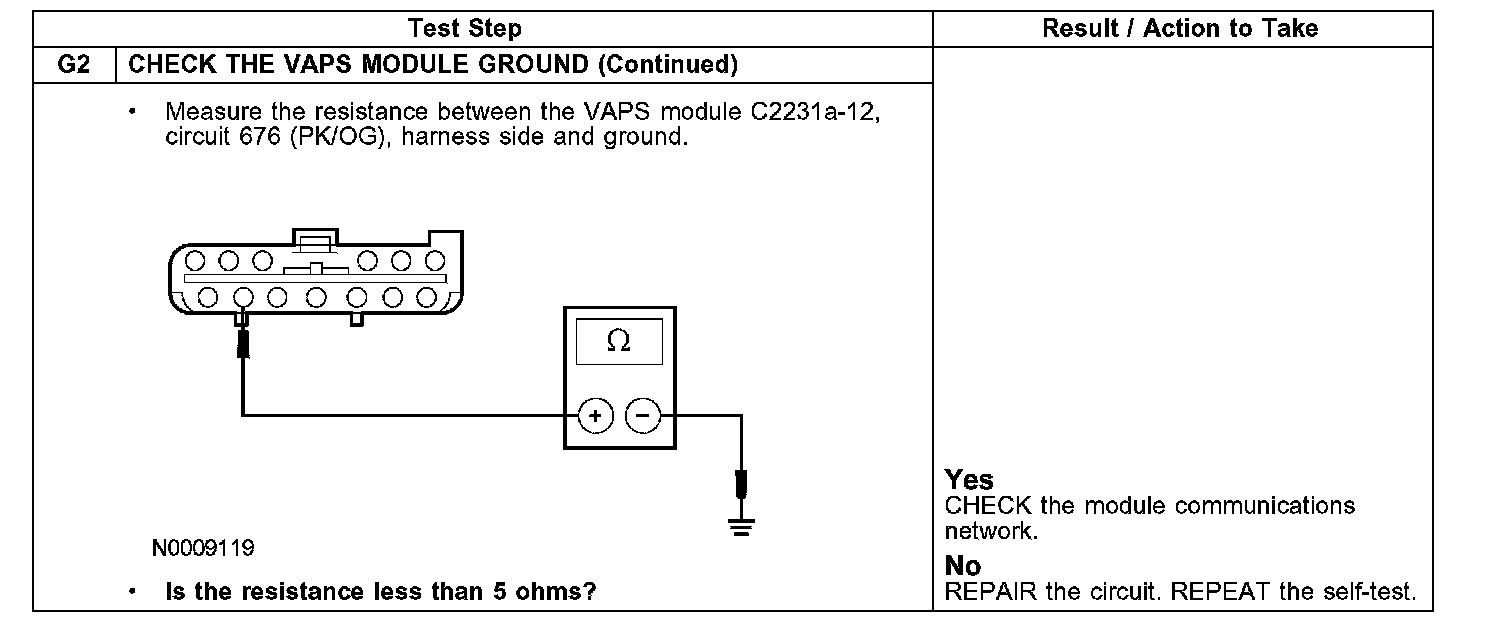

Test G2:





PINPOINT TEST G: NO COMMUNICATION WITH THE VARIABLE ASSIST POWER STEERING (VAPS) MODULE/UNABLE TO ENTER SELF-TEST
