Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinpoint Tests >> Test F: Steering System Drift/Pull/Wander

Test F: Steering System Drift/Pull/Wander

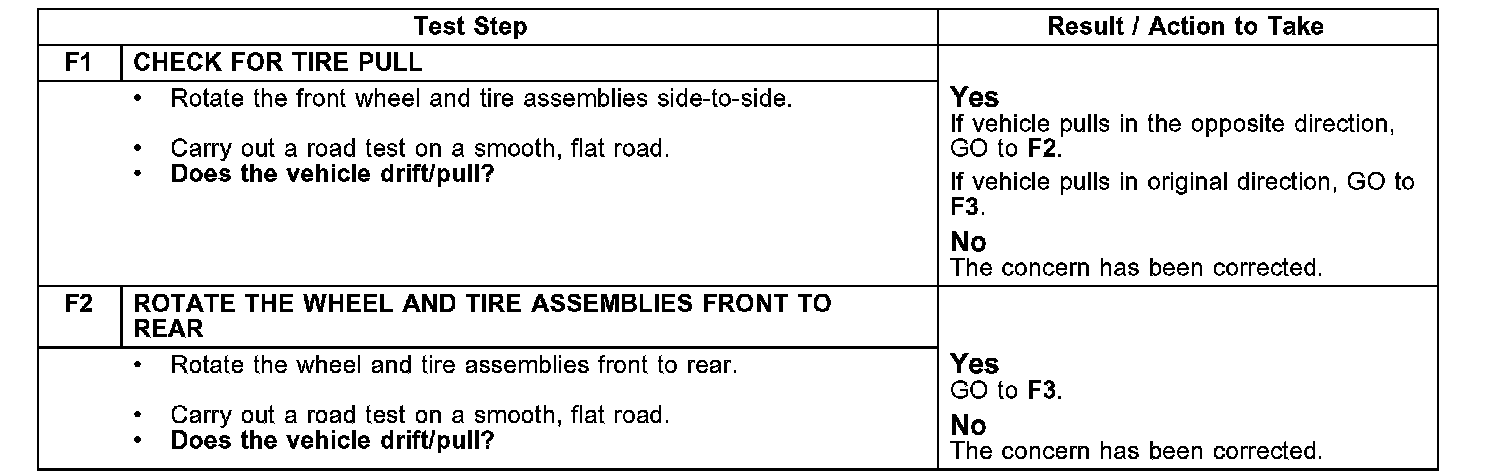

Test F1-F2:

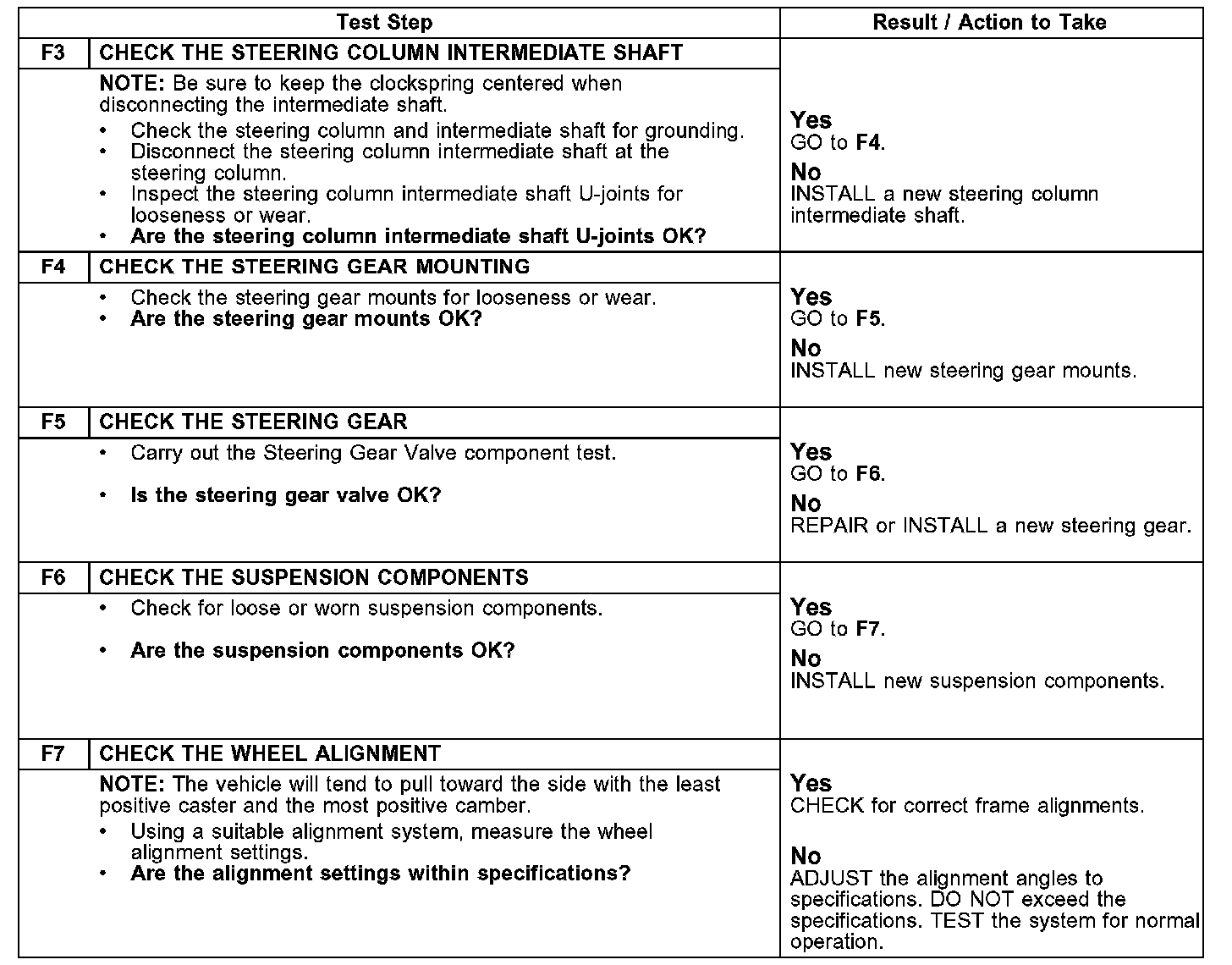

Test F3-F7:





PINPOINT TEST F: STEERING SYSTEM DRIFT/PULL/WANDER
