Home >> Mercury >> 2005 >> Grand Marquis V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinpoint Tests >> Test D: Steering Is Very Difficult/Very Easy

Test D: Steering Is Very Difficult/Very Easy

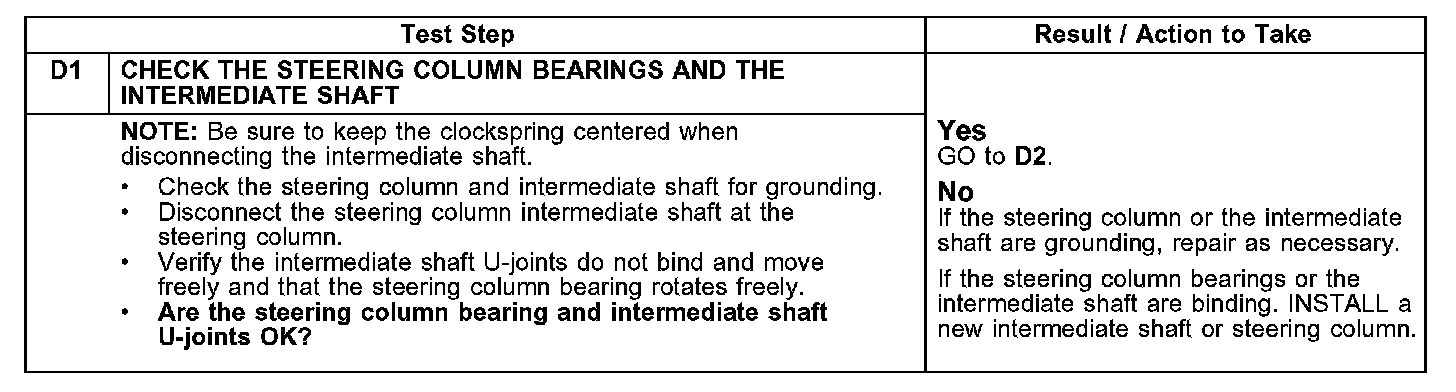

Test D1:

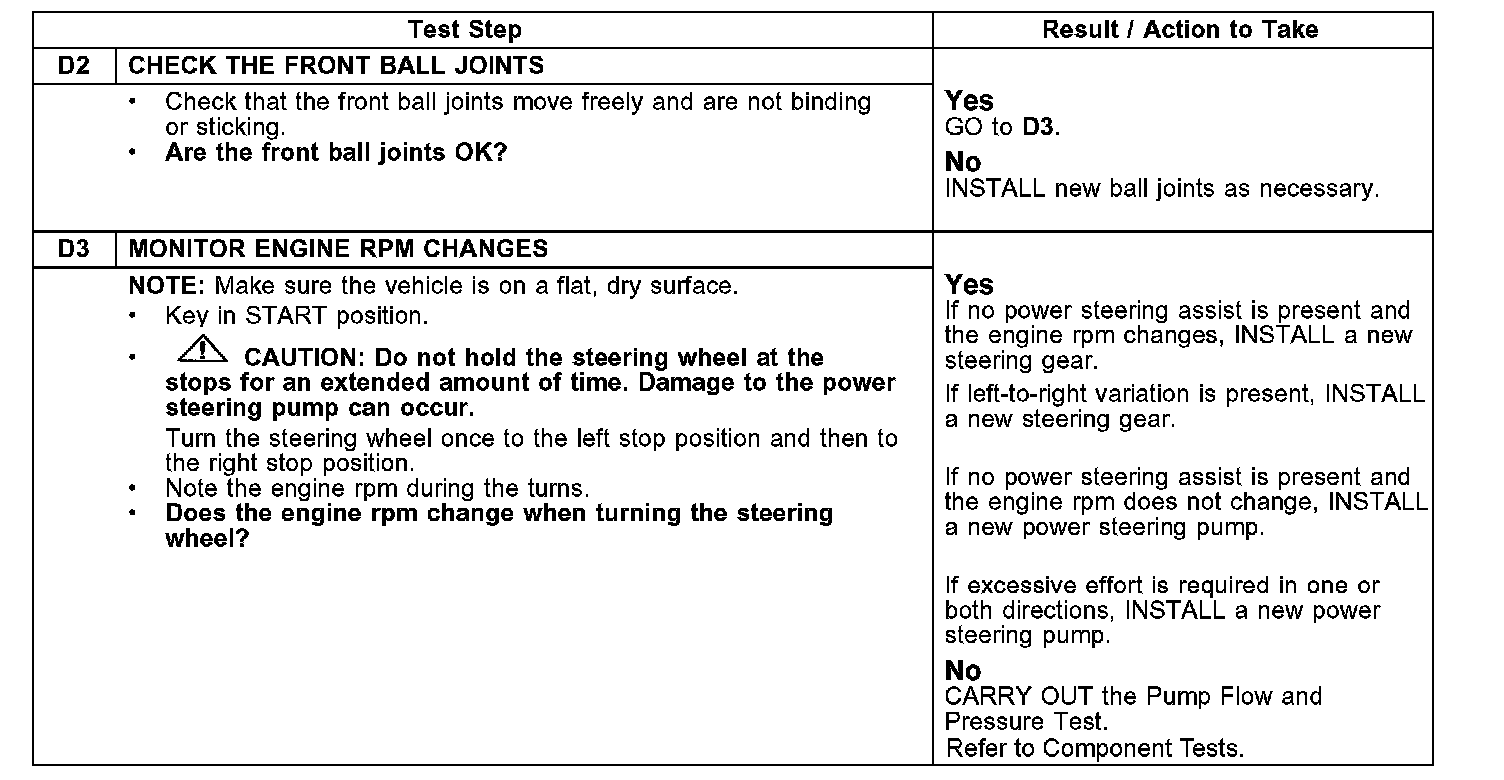

Test D2-D3:





PINPOINT TEST D: STEERING IS VERY DIFFICULT/VERY EASY
