Test A: DTC C1445-Vehicle Speed Signal Circuit Failure

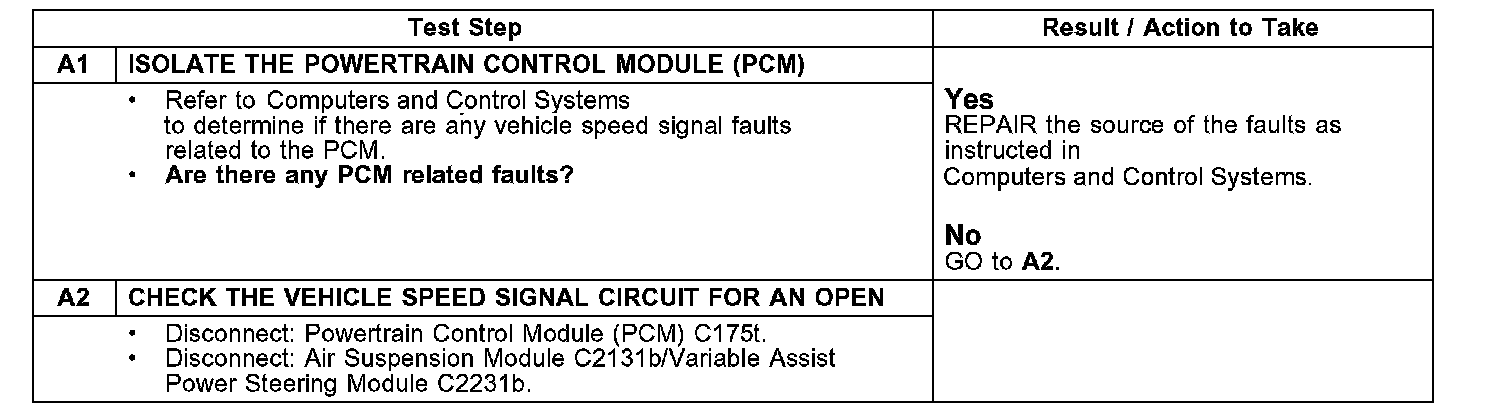

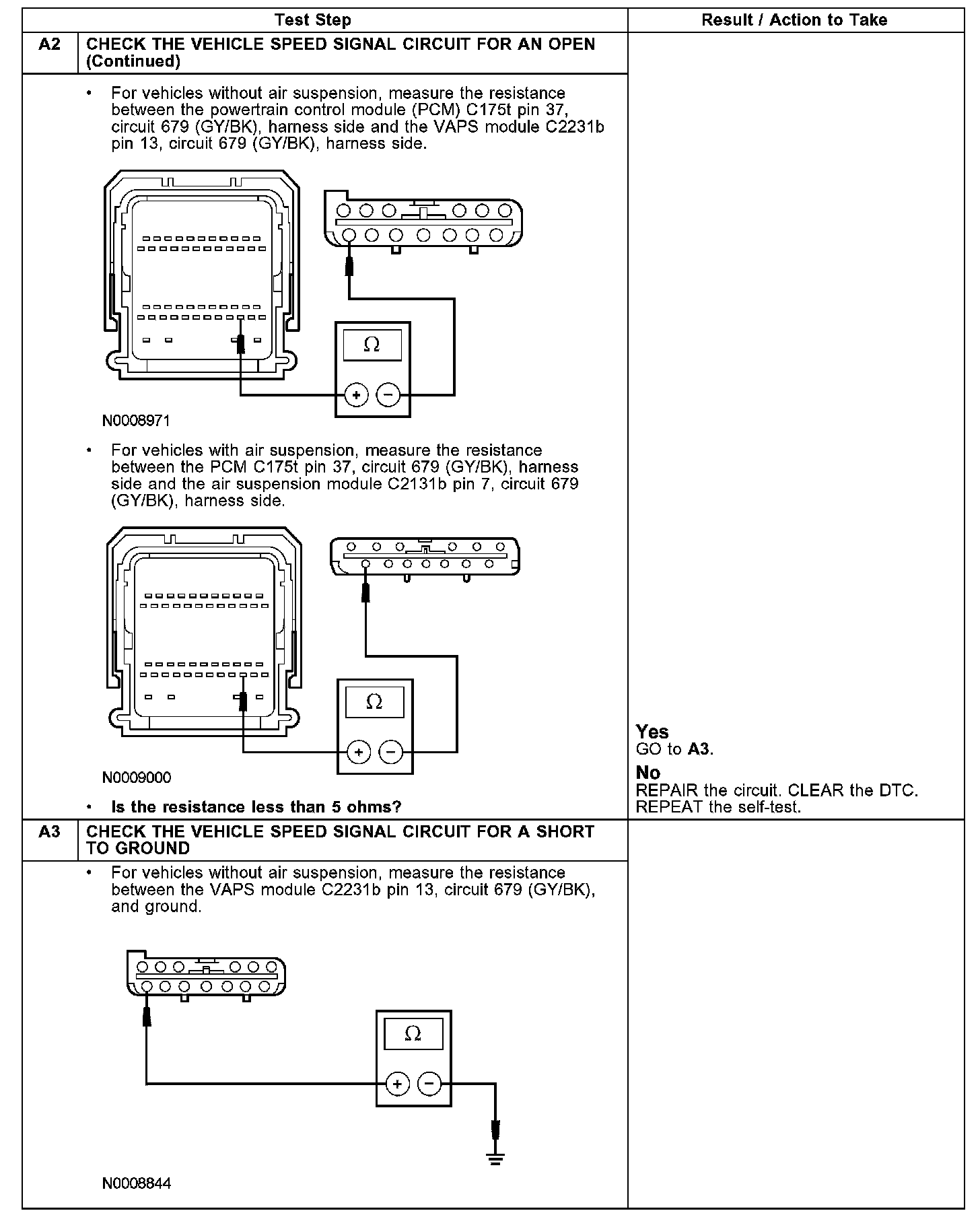

Test A1-A2:

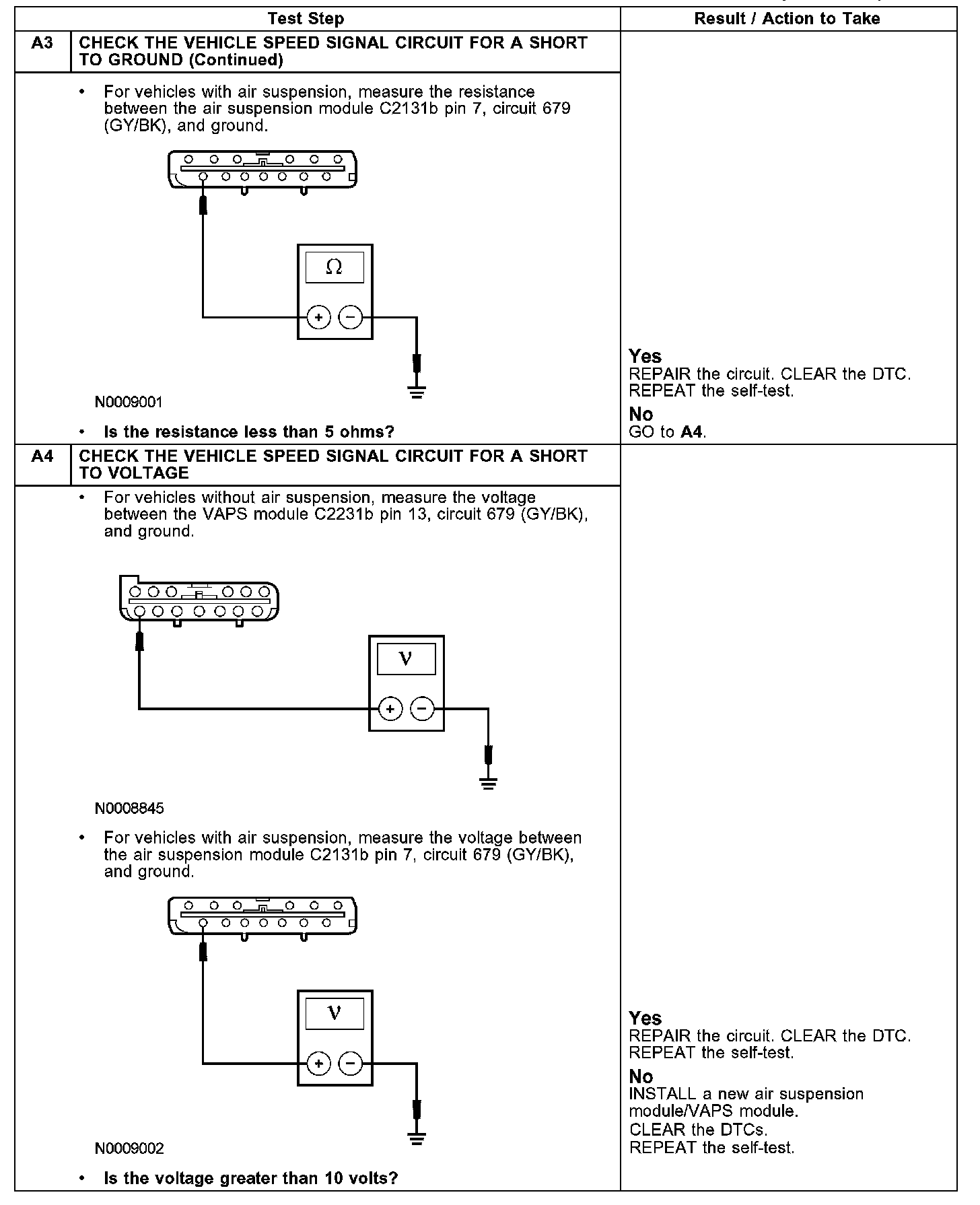

Test A2-A3:








PINPOINT TEST A: DTC C1445, VEHICLE SPEED SIGNAL CIRCUIT FAILURE
