Test A: Ignition Switch Is Inoperative

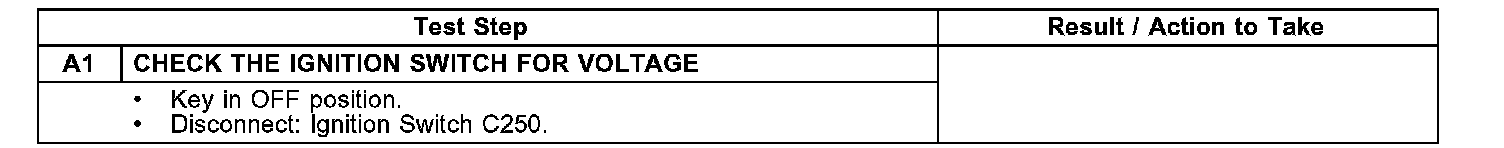

Test A1:

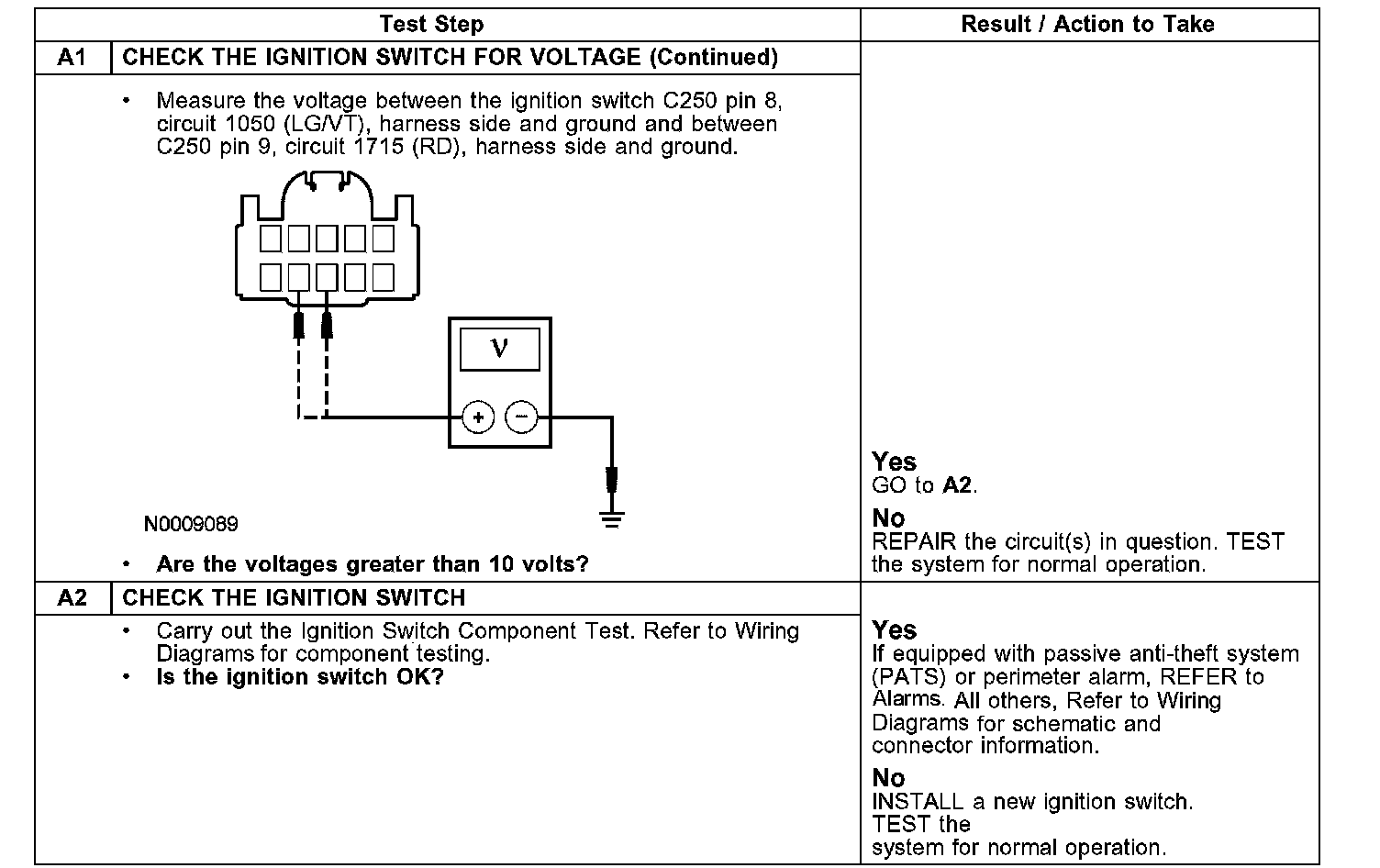

Test A1-A2:





PINPOINT TEST A: IGNITION SWITCH IS INOPERATIVE
