Ignition Switch

Ignition Switch

Removal and Installation

1. Depower the Supplemental Restraint System (SRS). Refer to Air Bag Systems.

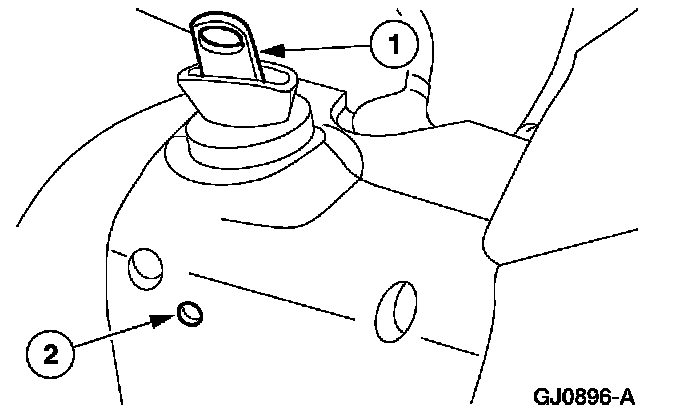

2. Remove the ignition switch lock cylinder.
1 Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2 Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

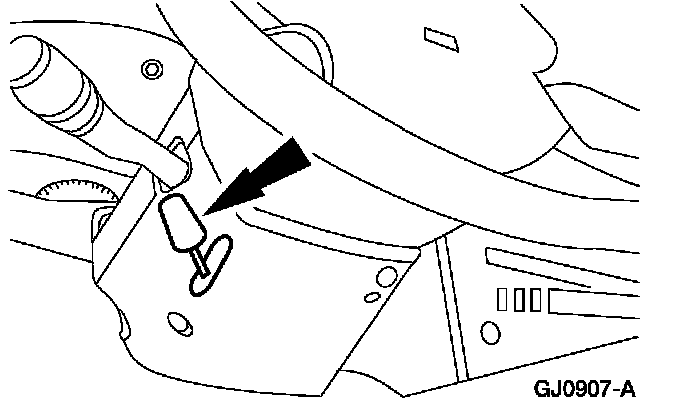

3. Remove the tilt wheel handle and shank.

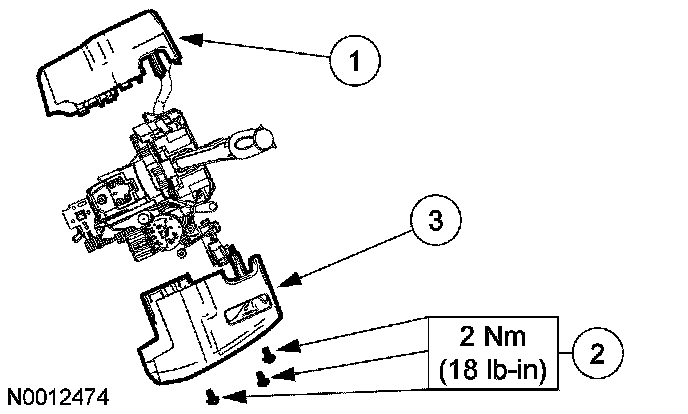

4. Remove the upper and lower steering column
shrouds.
1 Release the upper steering column shroud by pressing the sides inward.
2 Remove the 3 lower steering column shroud screws.
3 Remove the lower steering column shroud.

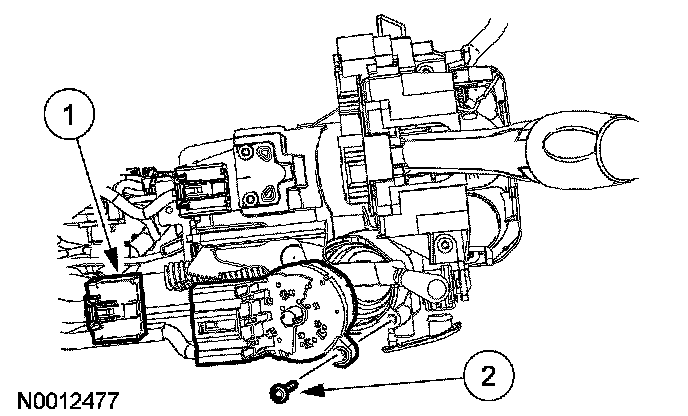

5. Remove the ignition switch.
1 Disconnect the electrical connector.
2 Remove the screw.

6. To install, reverse the removal procedure.
^ Repower the Supplemental Restraint System (SRS). Refer to Air Bag Systems.
