Initial Inspection and Diagnostic Overview
INSPECTION AND VERIFICATIONWARNING:
- When repairing starter motor or carrying out other underhood work in the vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter solenoid is "electrically hot" at all times. A new protective cap or boot, which is provided over the terminal of this lead must be installed after repairs. Be sure to disconnect battery ground cable before servicing starter.
- When working in area of the starter motor, be careful to avoid touching hot exhaust components.
1. Verify the customer concern by operating the starting system.

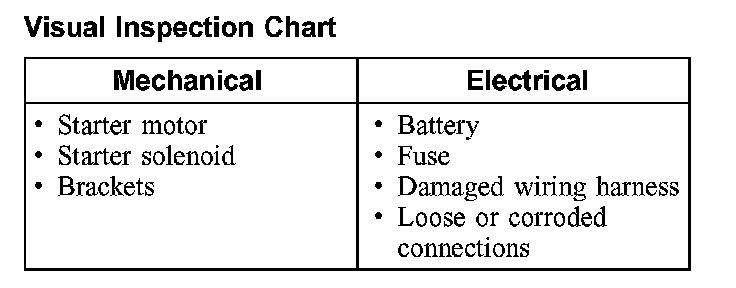

Visual Inspection Chart:
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the chart.
3 If the concern is not visually evident, determine the symptom. GO to symptom chart. Symptom Related Diagnostic Procedures
