Key Reminder Switch: Service and Repair
KEY-IN-IGNITION WARNING SWITCHRemoval and Installation
1. Remove the ignition switch lock cylinder.
2. Remove the key-in-ignition warning switch.

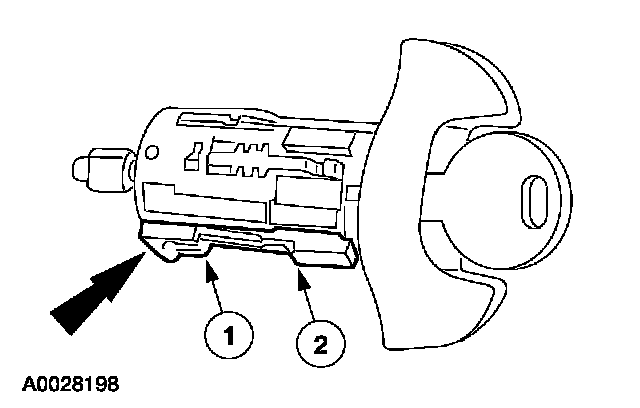

1 Release the clip.
2 Push the key-in-ignition warning switch off the rear of the ignition switch lock cylinder.
3. To install, reverse the removal procedure.
