Dimmer Switch: Service and Repair

INSTRUMENT PANEL DIMMER SWITCH

Removal and Installation
1. Disconnect the battery ground cable.

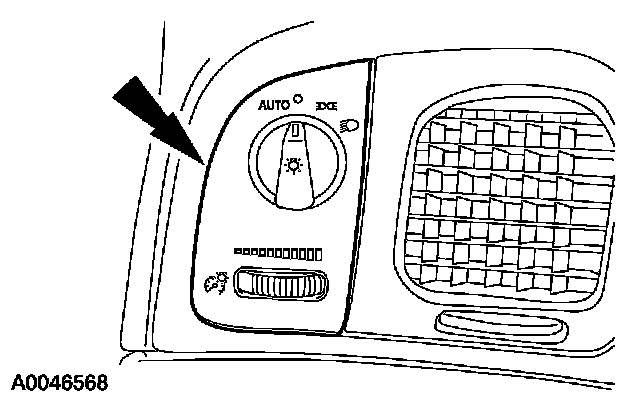

2. Remove the headlamp switch.

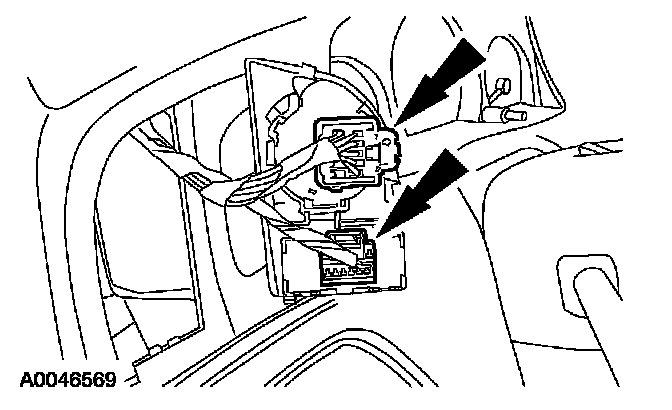

3. Disconnect the electrical connectors.

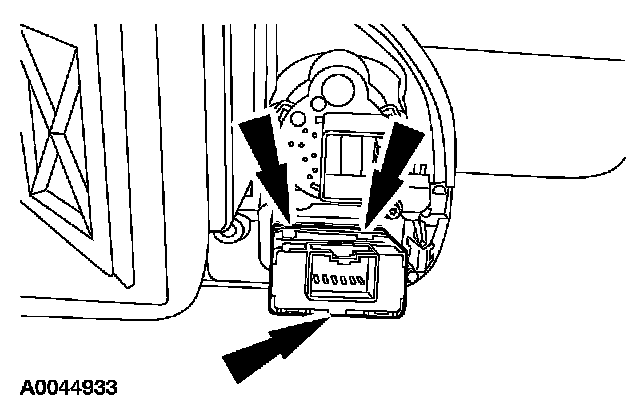

4. Release the retaining tabs and remove the instrument panel dimmer switch.
5. To install, reverse the removal procedure.
