Blower Motor Switch: Service and Repair

BLOWER MOTOR SWITCH

REMOVAL AND INSTALLATION
1. Remove the climate control assembly.
2. Pull and remove the blower motor switch knob.

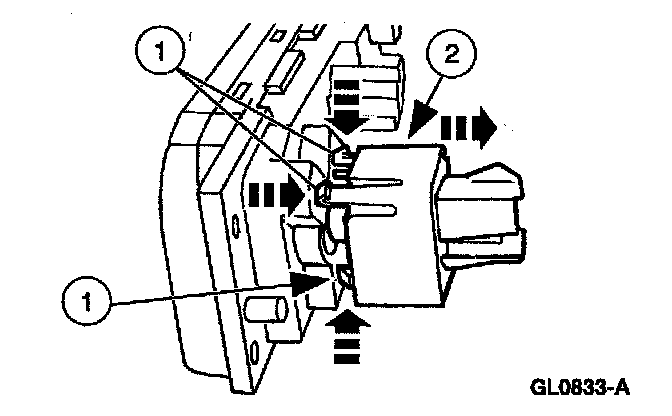

3. Remove the blower motor switch.
1 Release the tabs.
2 Remove the blower motor switch.

4. To install, reverse the removal procedure.
