Oil Pressure Sender: Service and Repair

Oil Pressure Sender

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

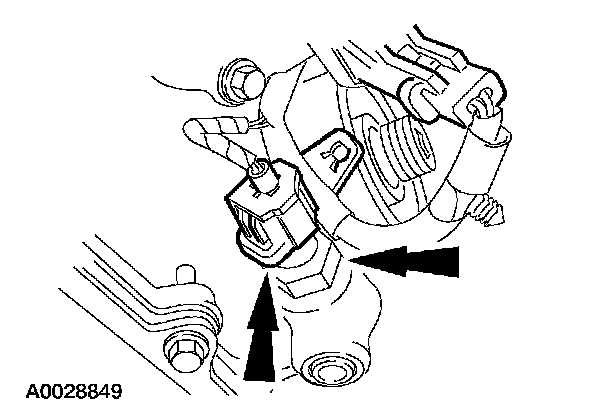

3. Remove the oil pressure sensor electrical connector and remove the oil pressure sensor.
^ To install, tighten to 14 Nm (10 ft. lbs.), then tighten an additional 180 degrees.

4. To install, reverse the removal procedure.
