Wheel Speed Sensor Rear

Wheel Speed Sensor Rear

Removal and Installation
1. Remove the rear seat cushion.

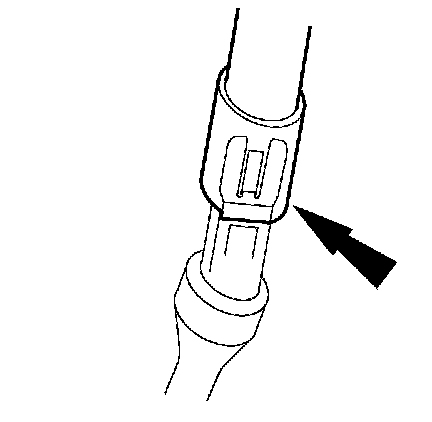

2. Disconnect the rear wheel speed sensor electrical connector.

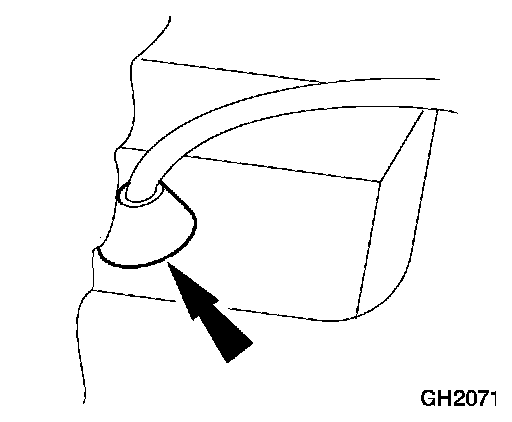

3. Push the sensor harness grommet through the passenger compartment floor.

4. WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking, or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations. Failure to follow these instructions may result in personal injury.

With the vehicle in NEUTRAL, position it on a hoist.

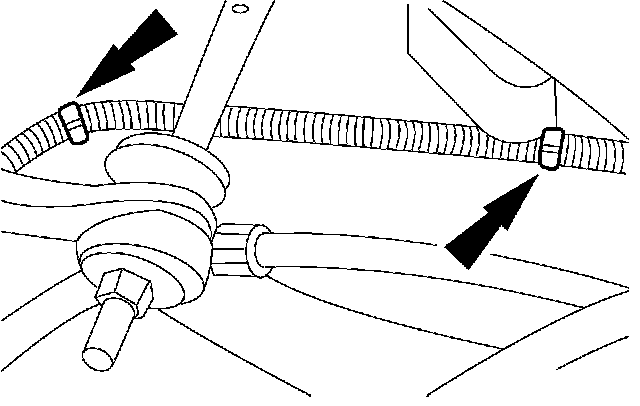

5. Disconnect the routing clips.

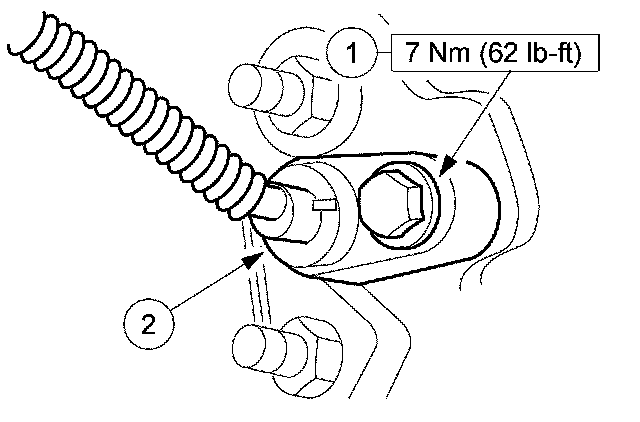

6. Remove the rear wheel speed sensor.
1. Remove the bolt.
2. Remove the sensor.

7. To install, reverse the removal procedure.
