Front Safety Belt Buckle - Outboard
FRONT SAFETY BELT BUCKLE - OUTBOARDRemoval and Installation
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All safety belt buckles
1. Looking under the front seat from the second row, position the affected safety belt buckle nut in the indentation of the transmission tunnel. If equipped with power seats, position the seat all the way up.
2. Position the other seat all the way forward.
3. Depower the SRS.
Driver seat only

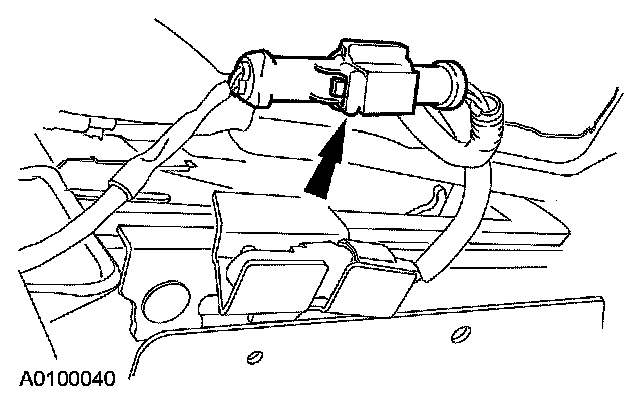

4. Disconnect the safety belt buckle switch electrical connector.
5. NOTE: Make sure the safety belt buckle is accessible to the driver after installation.

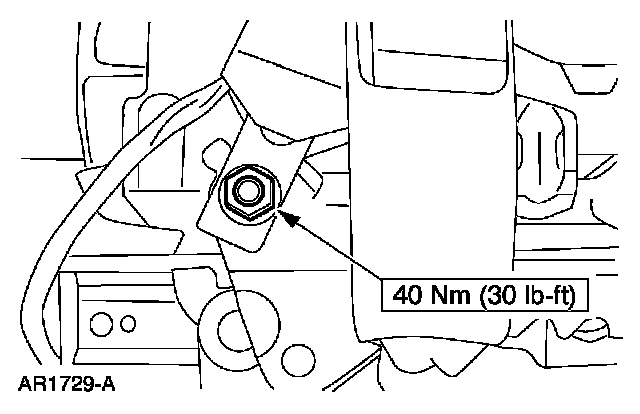

Remove the nut and the safety belt buckle.
- Route the safety belt buckle out from the seat cushion opening.
Passenger seat only
6. NOTE: Make sure the safety belt buckle is accessible to the passenger after installation.

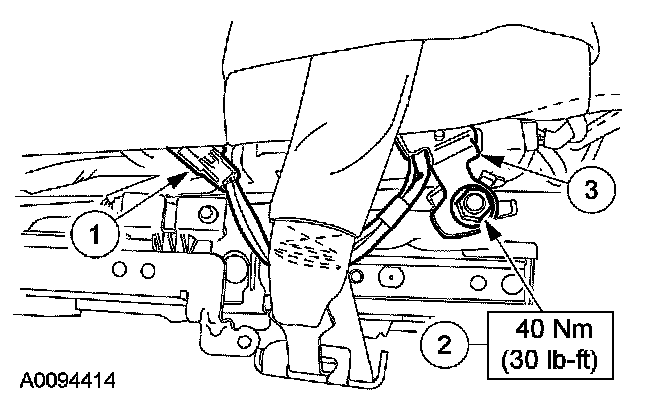

Remove the safety belt buckle with belt tension sensor.
1 Disconnect the connector.
2 Remove the nut.
3 Remove the safety belt buckle with belt tension sensor.
- Route the safety belt buckle out from the seat cushion opening.
All seats
7. To install, reverse the removal procedure.
8. Repower the SRS.
9. Check the active restraints for correct operation.
