Test Y: DTC B2985 - Deployable Steering Column Circuit Short to Battery

PINPOINT TEST Y: DTC B2985 - DEPLOYABLE STEERING COLUMN CIRCUIT SHORT TO BATTERY

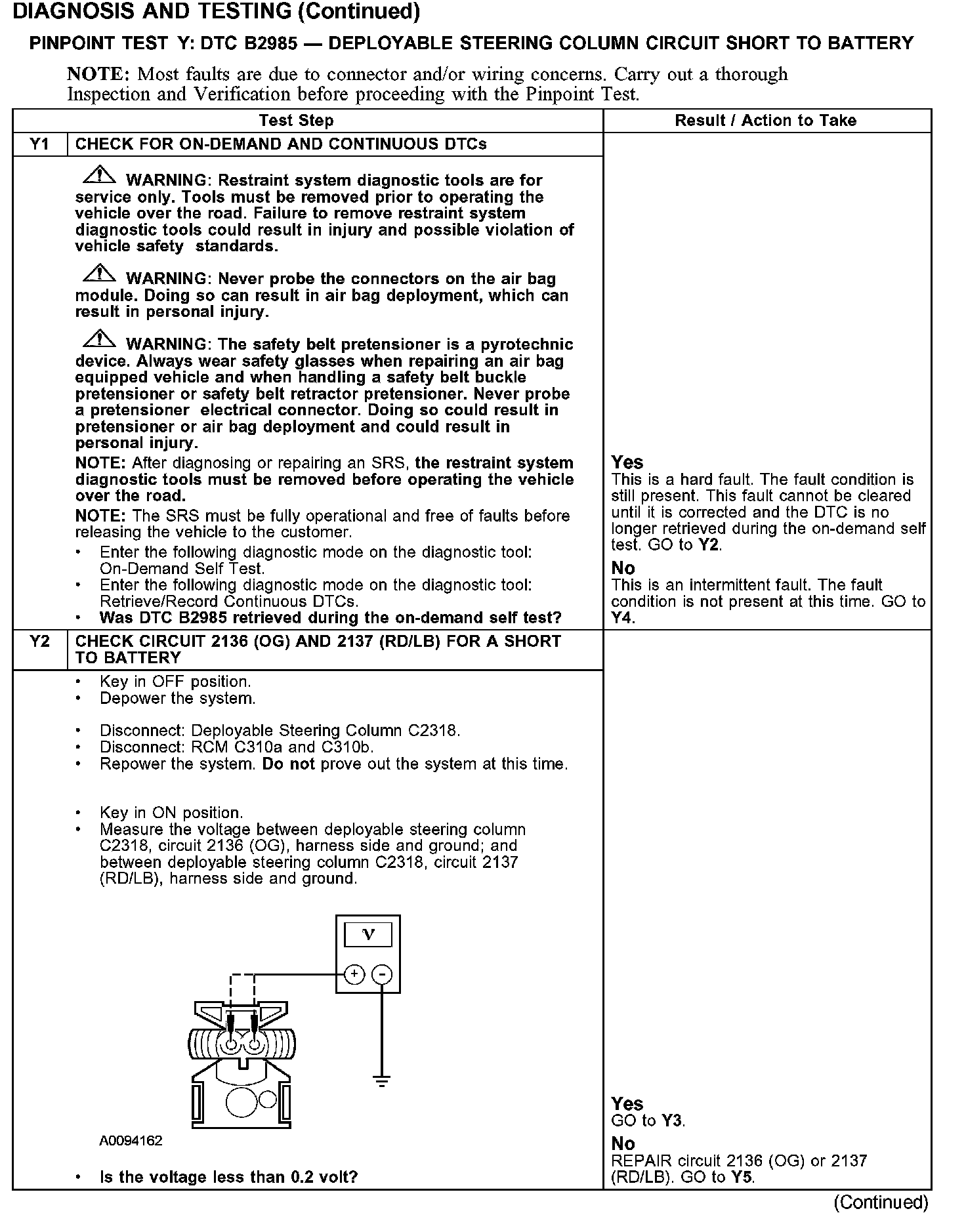

Y1-Y2:

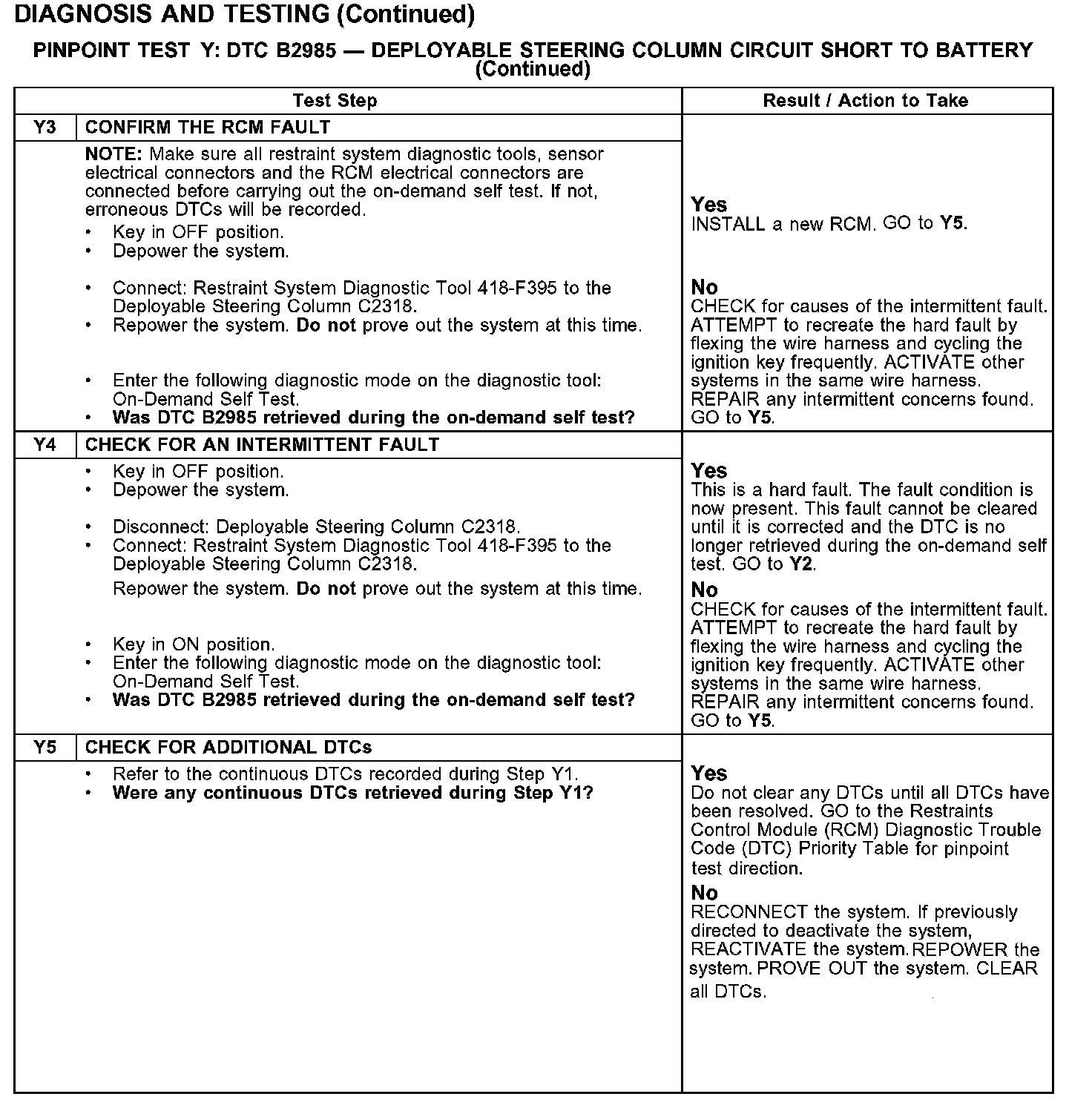

Y3-Y5:

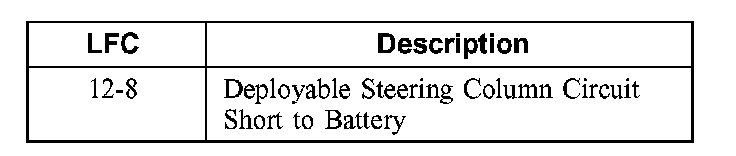

Lamp Fault Codes (LFCs)







The lamp fault code (LFC) indicate the specific fault associated with diagnostic trouble code (DTC) B2985.

Normal Operation
As part of the SRS, the vehicle is equipped with a deployable steering column. The restraints control module (RCM) will deploy (collapse) the steering column during a frontal collision when seat position information and other parameters reach predetermined limits.

The RCM checks the deployable steering column circuits for faults. If the RCM detects a short to voltage, it will store diagnostic trouble code (DTC) B2985 in memory and flash lamp fault code (LFC) 12-8 on the air bag indicator.

Possible Causes
A deployable steering column circuit short to battery can be caused by:
- wiring, terminals or connectors.
- a faulted RCM.
