Daytime Running Lamp Control Unit: Service and Repair

MODULE - DAYTIME RUNNING LAMPS (DRL)

Removal
1. Remove the battery ground cable.

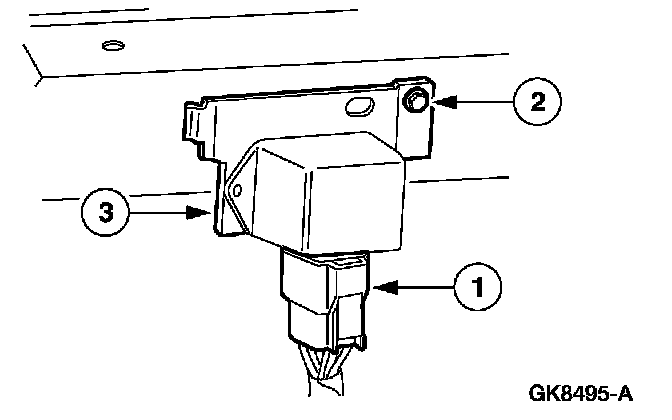

2. Remove the daytime running lamps (DRL) module located under the hood on the passenger side inner sheet metal.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the DRL module.

Installation







1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to learn the strategy.

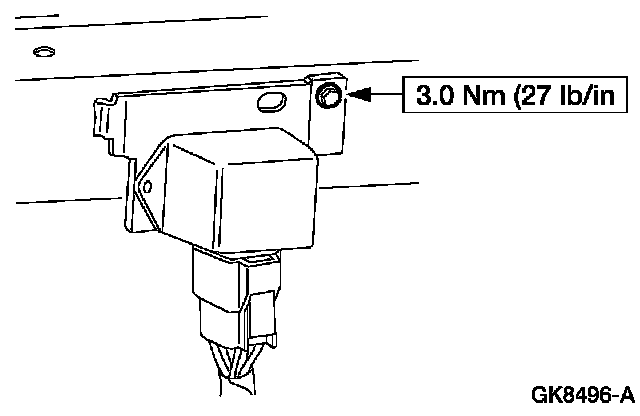

To install, reverse the removal procedure.
