Pressure Feedback Exhaust Sensor: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MODULE

Removal and Installation

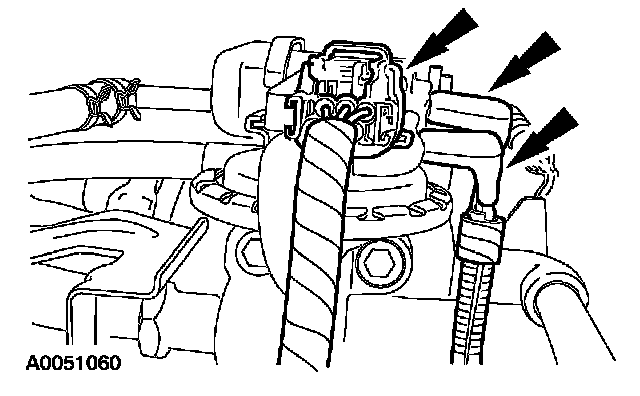

1. Disconnect the vacuum tubes and the electrical connector.

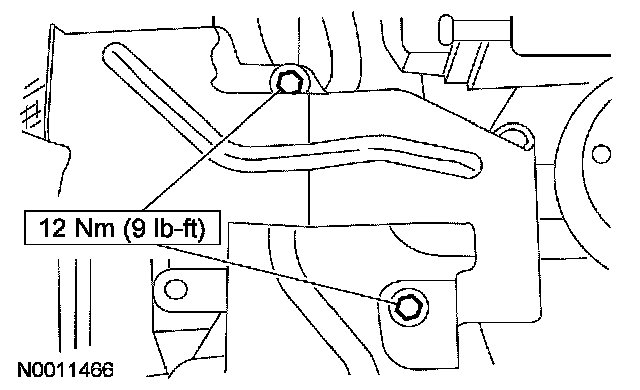

2. Remove the bolts from the intake manifold shield.

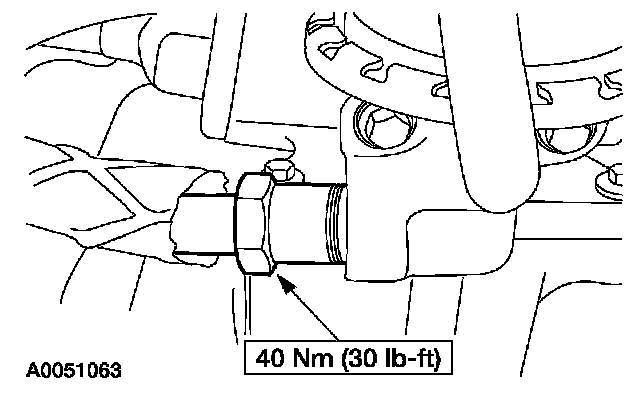

3. Disconnect the exhaust valve recirculation (EGR) system module tube nut from the EGR system module.

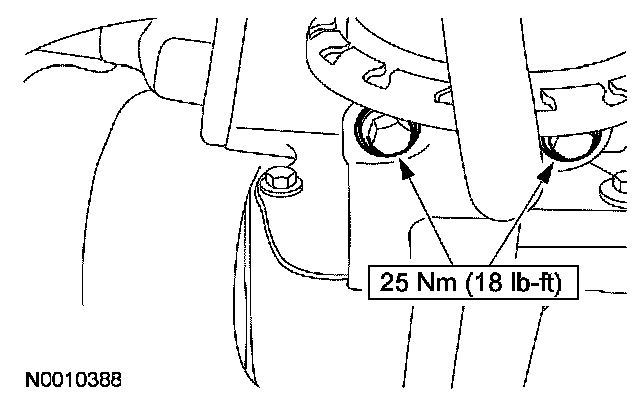

4. Remove the bolts and the EGR system module.







5. To install, reverse the removal procedure.

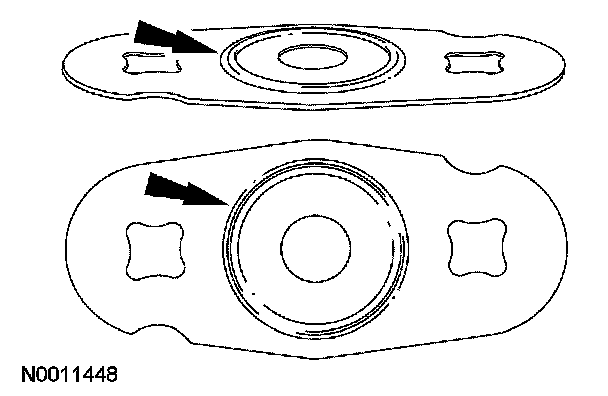

- Install a new EGR system module gasket with the side with the raised circle facing the intake manifold.
