Intake Air Duct: Service and Repair

AIR CLEANER OUTLET PIPE

Removal and Installation

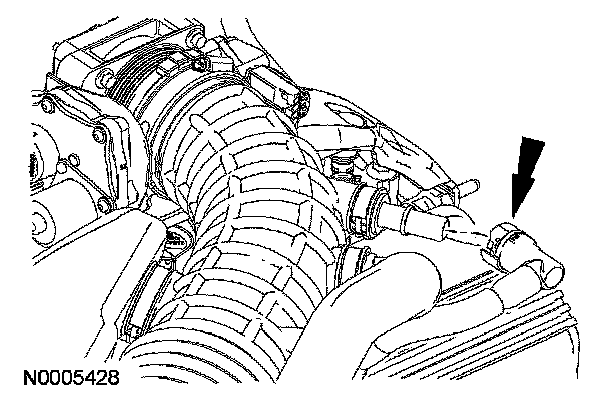

1. Disconnect the crankcase ventilation hose quick release coupling from the air cleaner outlet pipe.

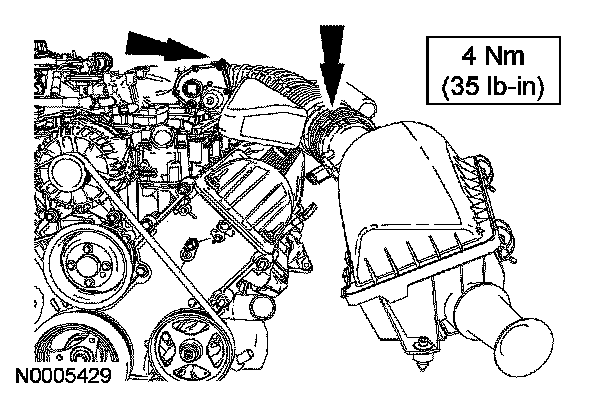

2. Loosen the clamps on both ends of the air cleaner outlet pipe.

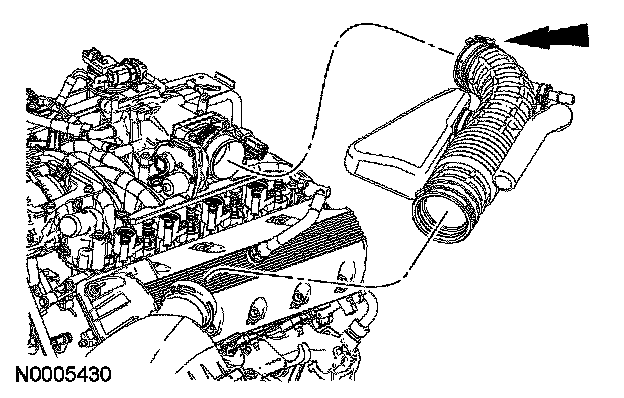

3. Remove the air cleaner outlet pipe.
4. To install, reverse the removal procedure.
- Upon installation, position the air cleaner outlet pipe on the throttle body first and line up the alignment tabs to properly seat the pipe.
