Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

Removal and Installation
1. Remove the evaporative emission (EVAP) canister and bracket assembly.

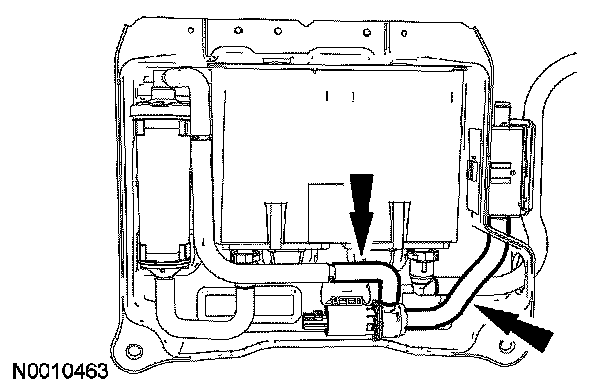

2. Disconnect the EVAP canister vent solenoid inlet and outlet vent hoses.
3. Remove the EVAP canister vent solenoid.
4. To install, reverse the removal procedure.
- Carry out the Leak Test. Evaporative Emission System Leak Test
- Carry out the Evaporative Emission Repair Verification Drive Cycle. Evaporative Emission Repair Verification Drive Cycle
