Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) SENSOR

Removal and Installation
1. Disconnect the battery ground cable.

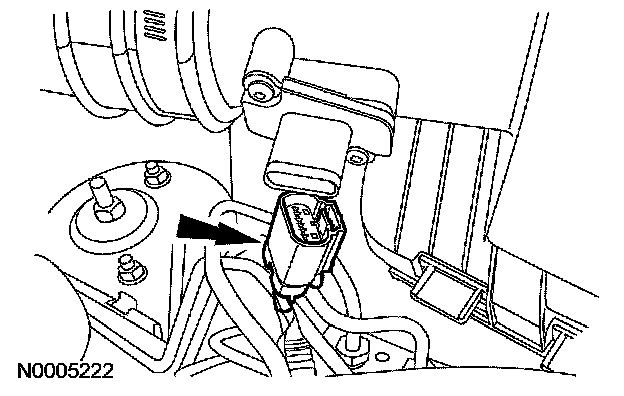

2. Disconnect the mass air flow (MAF) sensor electrical connector.







3. Remove the MAF sensor.

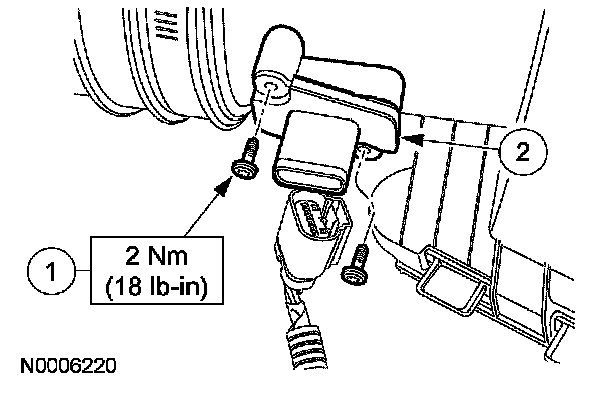

1 Remove the MAF sensor retaining screws.
2 Remove the MAF sensor.

4. To install, reverse the removal procedure.
