Lighting Control (LCM) Module

MODULE - LIGHTING CONTROL (LCM)

Removal and Installation
1. Disconnect the battery ground cable.







2. Remove the LH instrument panel lower insulator.

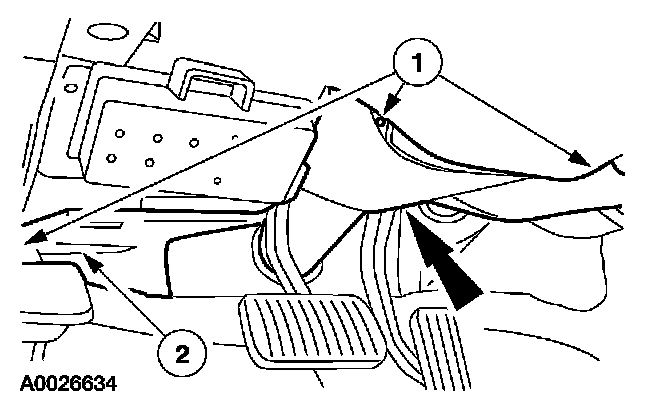

1 Remove the pin-type retainers.
2 Disconnect the courtesy lamp.

3. If equipped with adjustable pedals, remove the accelerator pedal, and shaft.







4. Position the LCM aside.

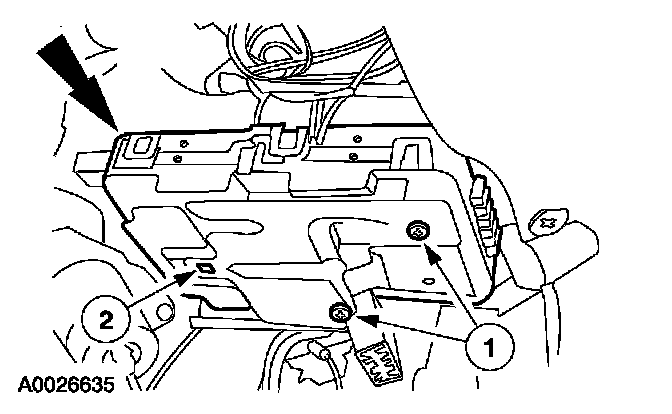

1 Remove the screws.
2 Release the locking tab.

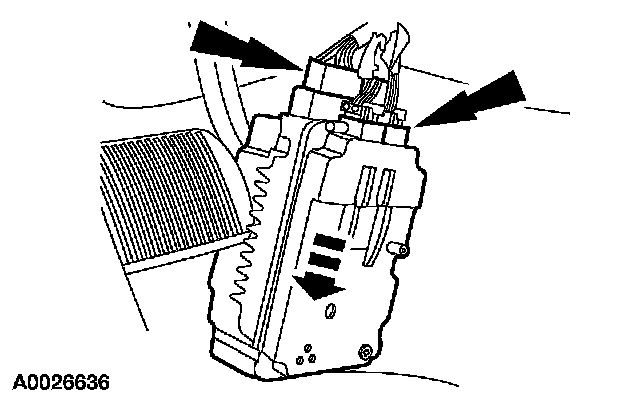

5. Disconnect the electrical connectors and remove the LCM.
6. To install, reverse the removal procedure.
- Check for correct operation.
