Test I: The Lighting Control Module (LCM) Does Not Respond to the Diagnostic Tool
Test I: The Lighting Control Module (LCM) Does Not Respond to the Diagnostic Tool
PINPOINT TEST I: THE LIGHTING CONTROL MODULE (LCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
I1:

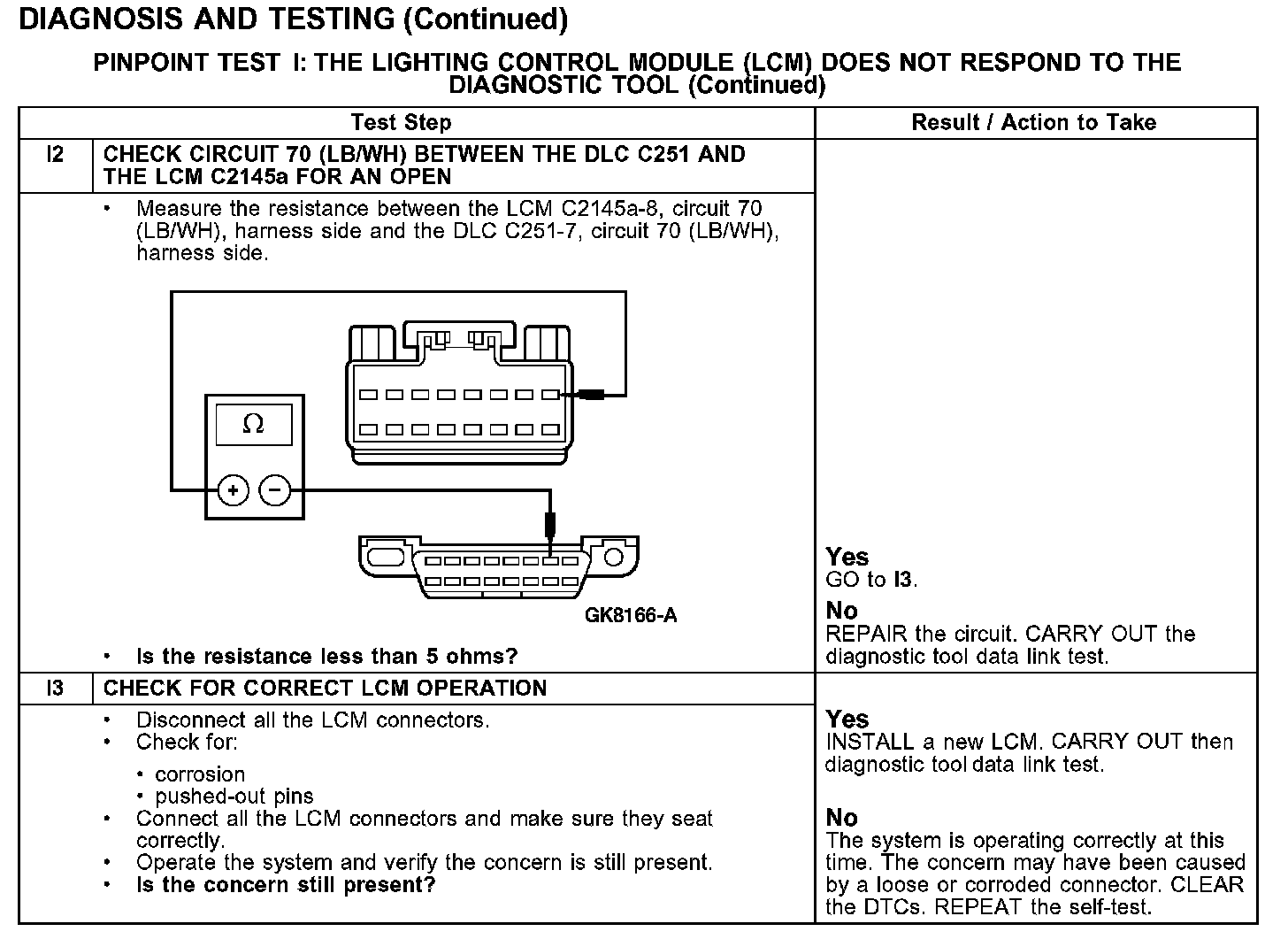

I2-I3:
