Inspection and Verification

INSPECTION AND VERIFICATION

1. Visually inspect for obvious signs of electrical damage.

VISUAL INSPECTION CHART

Electrical
- Wiring harness
- Connectors

Configurable Modules
The vehicle contains the following modules that are configurable:
- air suspension module (ASM)
- driver door module (DDM)
- powertrain control module (PCM)
- restraint control module (RCM)
- variable assist power steering (VAPS) module

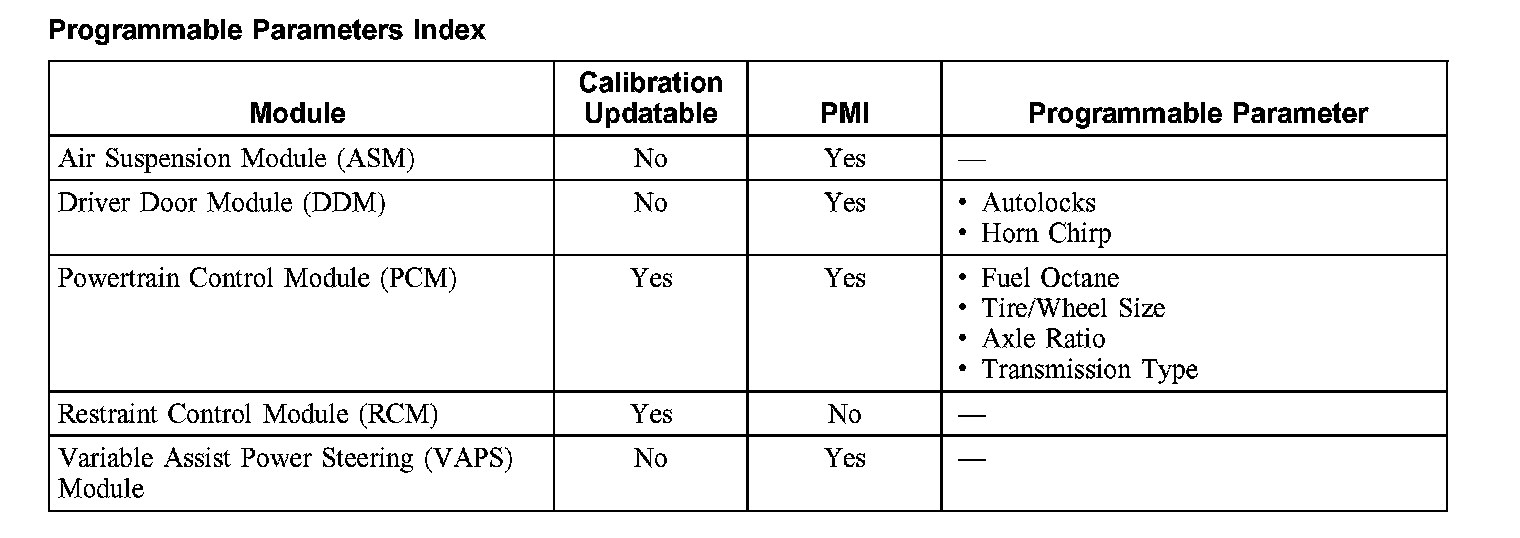

Programmable Parameters Index:

Programmable Parameters Index
