Turn Signal Lamp: Service and Repair

SIDE TURN SIGNAL LAMP

Removal and Installation

Crown Victoria

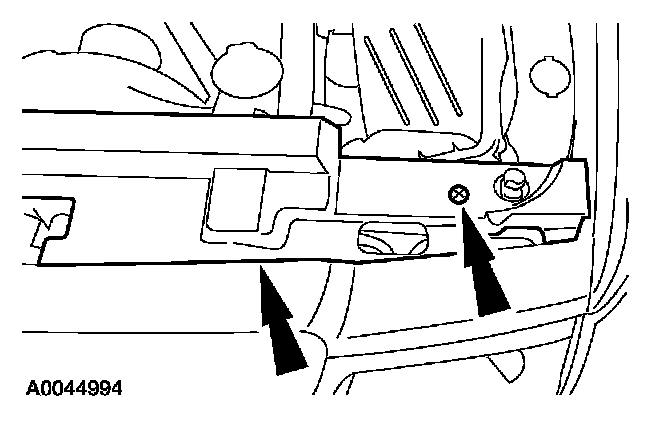

1. Remove the screw.

All vehicles







2. Remove the three pin-type retainers and the radiator sight shield.

Crown Victoria

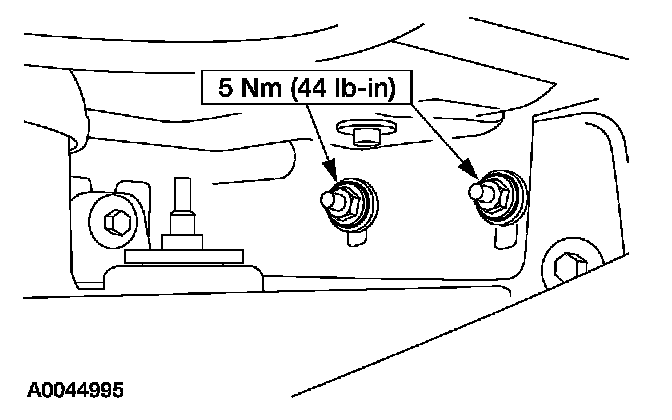

3. Remove the nut and the side turn signal assembly.
- Disconnect the electrical connectors.

Grand Marquis

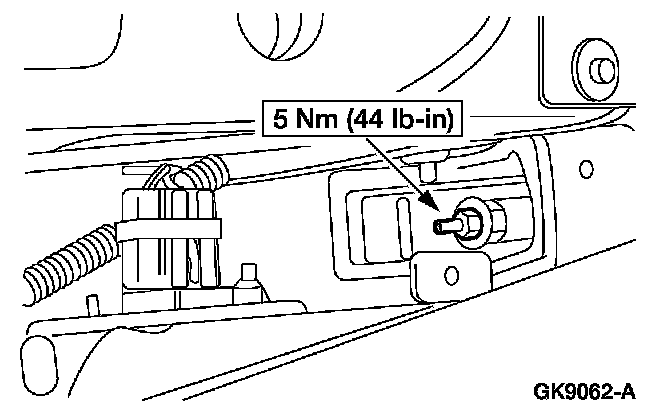

4. Remove the nuts and the side turn signal assembly.
- Disconnect the electrical connectors.

All vehicles
5. To install, reverse the removal procedure.
